SRNE 20/30/40A MPPT Solar Charge Controller 12V/24V Battery Voltage Auto Identify 100V PV Input ML Series ML2420/2430/2440

SRNE ML2420/2430/2440 20A/30A/40A 12V24V Auto MPPT Solar Charge Controller PV regulator Charge

Overview:

This product can keep monitoring the solar panel’s generating power and tracking the highest voltage and current values (VI) in real time, enabling the system to charge the battery in maximum power. It’s designed to be used in off-grid solar photovoltaic systems to coordinate operation of the solar panel, battery and load, functioning as the core control unit in off-grid photovoltaic systems.

This product features an LCD screen which can dynamically display the operating status, operating parameters, controller logs, control parameters, etc. Users can conveniently check parameters by the keys, and modify control parameters to cater to different system requirements.

The controller utilizes standard Modbus communication protocol, making it easy for users to check and modify system parameters on their own. Besides, by providing free monitoring software, we give users the maximum convenience to satisfy their varied needs for remote monitoring.

With comprehensive electronic fault self-detecting functions and powerful electronic protection functions built inside the controller, component damage caused by installation errors or system failures can be avoided to the greatest extent possible.

Electric Parameters:

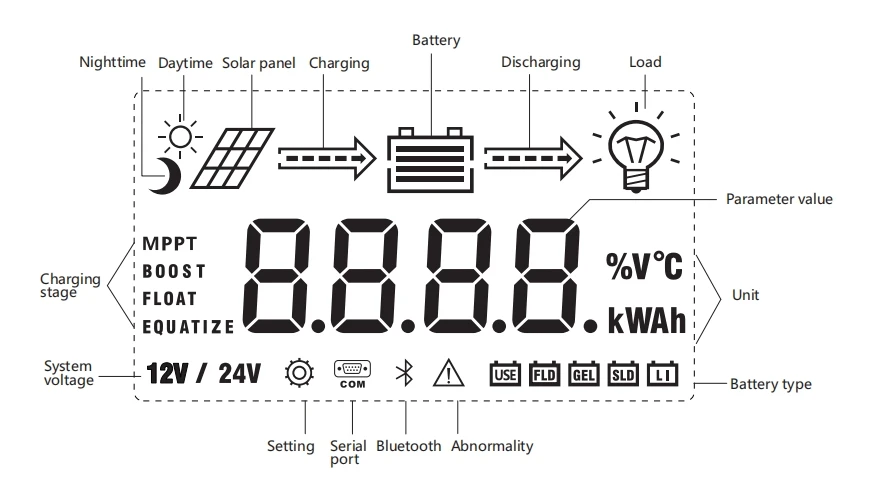

LCD Startup and Main Interface:

Features:

• With the advanced dual-peak or multi-peak tracking technology, when the solar panel is shadowed or part of the panel fails resulting in multiple peaks on the I-V curve, the controller is still able to accurately reack the maximum power point.

• A built -in maximum power point tracking algorithm can significantly improve the energy utilization efficiency of photovoltaic systems, and raise the charging efficiency by 15% to 20% compared with the
  conventional PWM method.

• A combination of multiple tracking algorithms enables accurate tracking of the optimum working point on the I-V curve in an extremely short time.

• The product boasts an optimum MPPT tracking efficiency of up to 99.9%.

• Advanced digital power supply technologies raise the circuit’s energy conversion efficiency to as high as 98%.

• Charging program options are available for different types of batteries including GEL batteries, Sealed batteries, open batteries, Lithium batteries, etc.

• The controller features a limited current charging mode. When the solar panel power exceeds a certain level and the charging current is larger than the rated current, the controller will automatically lower the charging power and bring the charging current to the rated level.

• Instantaneous large current startup of capacitive loads is supported.

• Automatic recognition of battery voltage is supported.

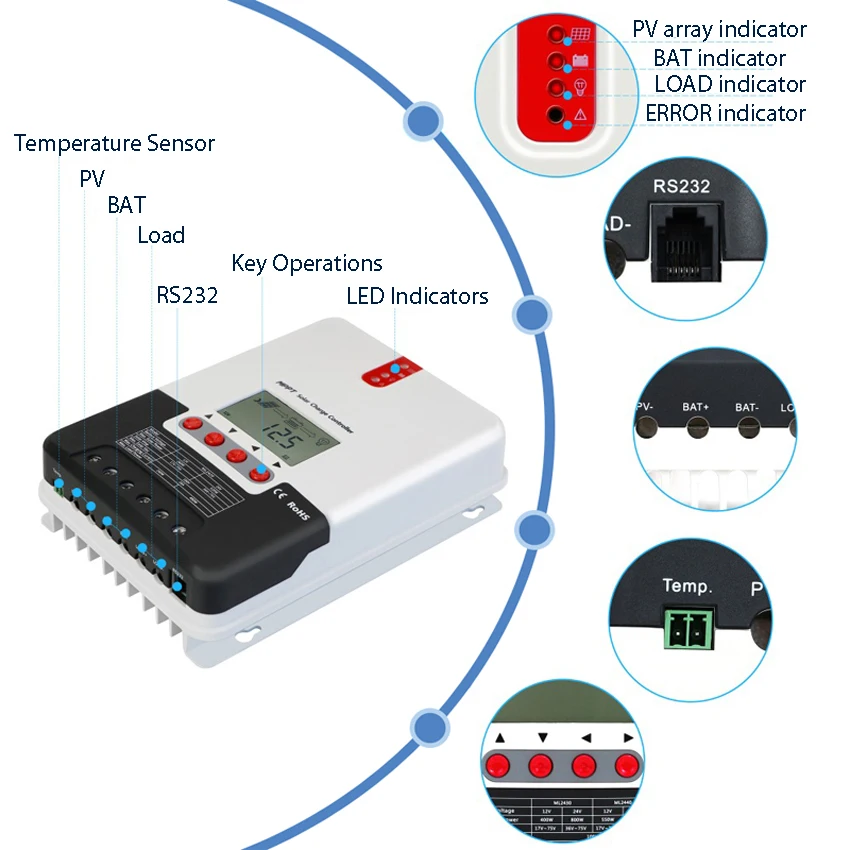

• LED fault indicators and an LCD screen which can display abnormality information help users to quickly identify system faults.

• Historical data storage function is available, and data can be stored for up to a year.

• The controller is equipped with an LCD screen with which users can not only check device operating data and statuses, but also modify controller parameters.

• The controller supports standard Modbus protocol, fulfilling the communication needs of various occasions.

• The controller employs a built-in over-temperature protection mechanism. When temperature surpasses the set value, the charging current will decline in linear proportion to the temperature so as to curb the temperature rise of the controller, effectively keeping the controller from being damaged by overheat.

• Featuring a temperature compensation function, the controller can automatically adjust charging and discharging parameters in order to extend the battery’s service life.

• TVS lighting protection.

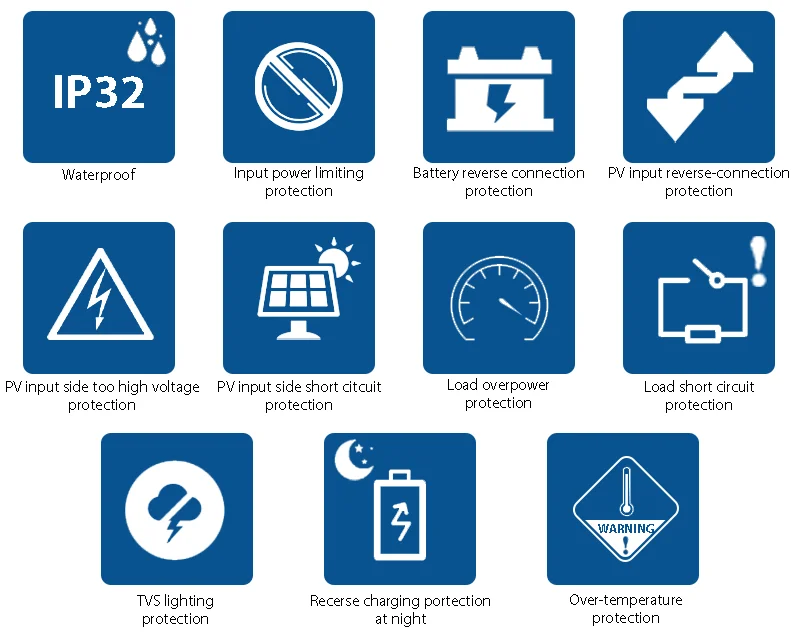

Protections Functions:

• Waterproof

Waterproof level: IP32

• Input power limiting protection

When the solar panel power exceeds the rated power, the controller will limit the solar panel power under the rated power so as to prevent excessively large currents from damaging the controller and enter into current-limited charging.

• Battery reverse connection protection

If the battery is reversely connected, the system will simply not operate so as to protect the controller from being burned.

• Photovoltaic input side too hogh voltage protection

If the voltage on the photovoltaic array input side is too high, the controller will automatically cut off photovoltaic input.

• Photovoltaic input side short-circuit protection

If the photovoltaic input side gets short-circuited, the controller will halt charging, and when the short circuit issue gets cleared, charging will automatically resume.

• Photovoltaic input reverse-connection protection

When the photovoltaic array is reversely connected, the controller will not break down, and when the connection problem gets solved, normal operation will resume.

• Load overpower protection

When the load power exceeds the rated value, the load will enter into delay protection.

• Load short-circuit protection

When the load is short-circuited, the controller can implement protection in a quick and timely manner, and will try to switch on the load again after a time delay. This protection can be carried out up to 5 times a day. Users can also manally address the short circuit problem when finding the load is short-circuited via the abnormality codes on the
system data analysis page.

• Reverse charging protection at night.

This protection function can effectively prevent the battery from discharging through the solar panel at night.

• TVS lighting protection

• Over-temperature protection
