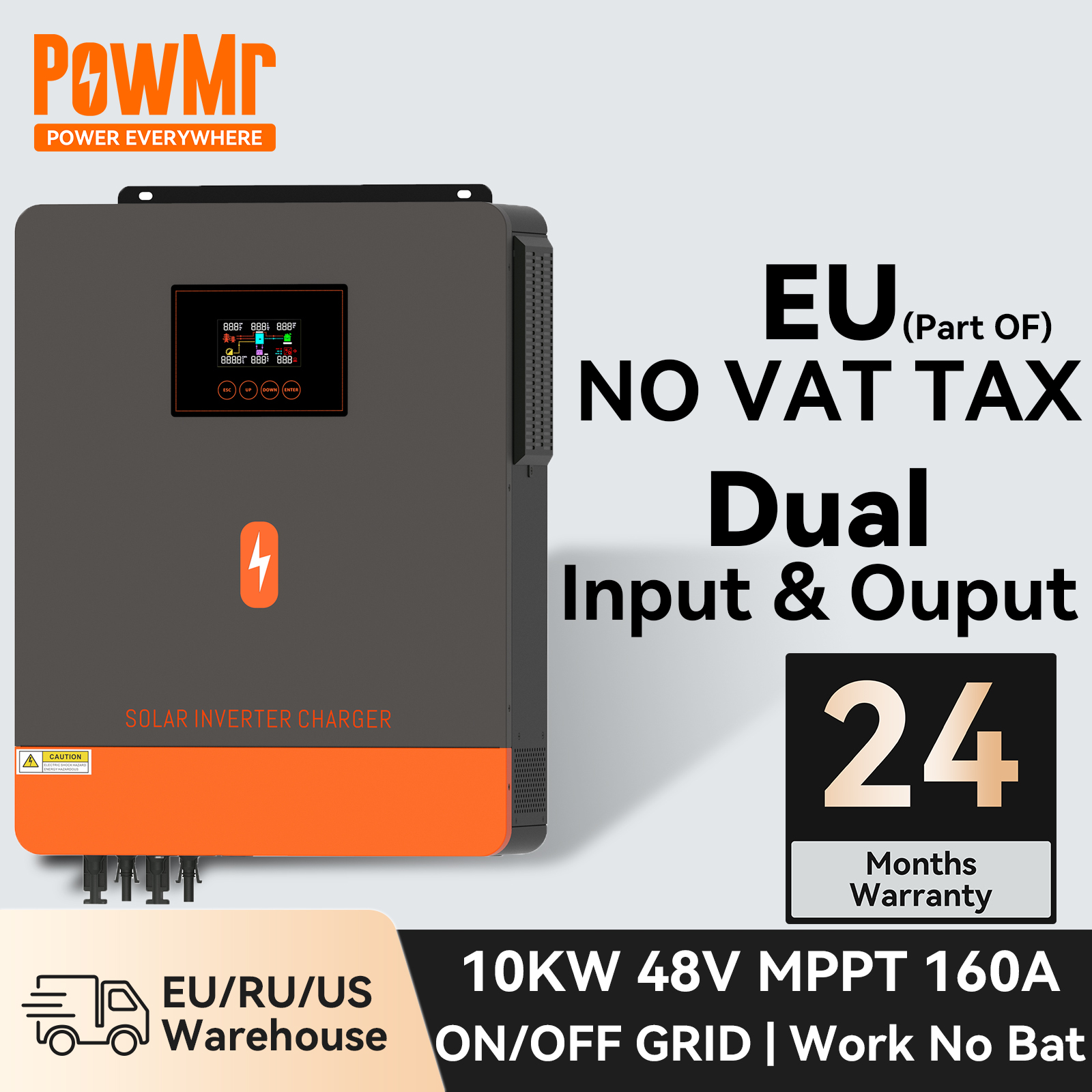

Pure Sine Wave Hybrid Inverter
Experience optimal power performance with the pure sine wave hybrid inverter. Achieving up to 95% efficiency, it seamlessly converts 220V DC to 48V AC power and vice versa. Enjoy compatibility with the grid, solar panels, and generators. Customize input voltage range and battery charging current via the LCD setting, ensuring peak appliance performance.
Dual PV Input & Dual AC Output
Versatility inverter with MPPT solar charge controller offers dual PV inputs and dual AC outputs, which allows to define the allocation of main and secondary output, reaching a maximum current of 160A (PV+AC). It’s compatible with 48V lithium, lead-acid, and user-defined batteries. Stay connected with RS-232/WIFI/Remote LCD communication ports, allowing seamless control and monitoring.
Multiple Charging and Output Modes
This hybrid inverter charger provides customizable power options with 3 charging modes (Solar Only, Utility First, or Solar&Utility) and 2 output modes (Solar First, Utility First). Adapt power delivery to your preferred source. In Solar Priority Mode, the inverter optimizes solar energy utilization by intelligently switching between utility and battery, based on a preset voltage.
All-Round Protection
This inverter charger is equipped with 3 cooling fans for efficient heat dissipation. It automatically restarts during AC power recovery, ensuring uninterrupted power supply. Benefit from overload, over-temperature, and short circuit protection, ensuring the safety of your system.
Table 1 Line Mode Specifications |
||
INVERTER MODEL |
8.2KW |
10.2KW |
Input Voltage Waveform |
Pure Sine Wave(Utility or Generator) |
|
Nominal Input Voltage |
230Vac |
|
Max AC Input Voltage |
300Vac |
|
Nominal Input Frequency |
50Hz/60Hz(Auto detection) |
|
Efficiency(Line Mode) |
>95%( Rated R load,battery full charged) |
|
Transfer Time |
10ms typical(UPS);20ms typical(Appliances) |
|
Table 2 Inverter Mode Specifications |
||
INVERTER MODEL |
8.2KW |
10.2KW |
Rated Output Power |
8.2KW |
10.2KW |
Output Voltage Waveform |
Pure Sine Wave |
|
Output Voltage Regulation |
230Vac±5% |
|
Output Frequency |
50Hz |
|
Peak Efficiency |
0.93 |
|
Overload Protection |
3s@≥150% load;5s@101%~150% load |
|
Surge Capacity |
2* rated power for 5 seconds |
|
Nominal DC Input Voltage |
48Vdc |
|
Cold Start Voltage |
46.0Vdc |
|
No Load Power Consumption |
70W |
75W |
Table 3 Charge Mode Specifications |
||
Utility Charging Mode |
||
INVERTER MODEL |
8.2KW |
10.2KW |
Charging Algorithm |
3-Step |
|
AC Charging Current (Max) |
140A |
|
MPPT Solar Charging Mode |
||
INVERTER MODEL |
8.2KW |
10.2KW |
Max. PV Array Power |
8200W |
10200W |
Nominal PV Voltage |
360Vdc |
|
PV Array MPPT Voltage Range |
90Vdc~450Vdc |
|
Max. PV Array Open Circuit Voltage |
500Vdc |
|
Max Charging Current(AC charger plus solar charger) |
160A |
|
Tabel 4 Grid-Tie Operation |
||
INVERTER MODEL |
8.2KW |
10.2KW |
Nominal Output Voltage |
220/230/240VAC |
|
Feed-in Grid Voltage Range |
195-253VAC |
|
Feed-in Grid Frequency Range |
49-51±1Hz/59-61±1Hz |
|
Nominal Output Current |
35.6A |
44.3A |
Maximum Conversion Efficiency(DC/AC) |
98% |
|
Table 5 Two Load Output Power |
||
INVERTER MODEL |
8.2KW |
10.2KW |
Full Load |
8200W |
10200W |
Maximum Main Load |
8200W |
10200W |
Maximum Second Load(battery model) |
2733W |
3400W |
Main Load Cut Off Voltage |
44VDC |
|
Main Load Return Voltage |
54VDC |
