PowMr 6200W On Grid/Off Grid Solar Inverter MPPT 120A Solar Charger Max PV Power 6500W 230V Out-put DC 48V for Battery Charger
To European Union Countries: You also can choose from China we will help you send from the EU warehouse if we have stock in the EU warehouse, that it can help you don’t need to pay the additional fees. when you order before, please contact us first, thank you.
Inverter Use Note:The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.
Introduction
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features
On Grid/Off Grid 6200W 48V 220V/230V Solar inverter
1.Pure sine wave inverter
2.Configurable input voltage range for home appliances and personal computers via LCD setting
3.Configurable battery charging current based on applications via LCD setting
4.Configurable AC/Solar Charger priority via LCD setting
5.Compatible to mains voltage or generator power
6.Auto restart while AC is recovering
7.Overload/Over temperature/short circuit protection
8.Smart battery charger design for optimized battery performance
9.Cold start function
Basic System Architecture
The following illustration shows basic application for this inverter/charger.It also includes following devices to have a complete running system：
●Generator or Utility.
●PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment，including motor-type appliances such as tube light，fan，refrigerator and air conditioner.
Specification
|
INVERTER MODEL |
6.2KW |
|
Input Voltage Waveform |
Sinusoidal(utility or generator) |
|
Nominal Input Voltage |
230Vac |
|
Rated Output Power |
6200W |
|
output Voltage Regulation |
230Vac±5% |
|
output Frequency |
50Hz |
|
Peak Efficiency |
93% |
|
Nominal DC Input Voltage |
48Vdc |
|
Cold Start Voltage |
46.0Vdc |
|
MPPT Solar Charging Mode |
|
|
Max. PV Array Power |
6500W |
|
Maximum Main Load |
6200W |
|
Maximum Second Load(battery model) |
2066W
|
|
Main Load Cut Off Voltage |
44VDC |
|
Main Load Return Voltage |
52VDC |
|
Nominal PV Voltage |
360Vdc |
|
PV Array MPPT Voltage Range |
90Vdc~450Vdc |
|
Max. PV Array Open Circuit Voltage |
500Vdc |
|
Max Charging Current (AC charger plus solar charger) |
120Amp |
|
Grid-Tie Operation |
|
|
Nominal Output Voltage |
220/230/240VAC |
|
Feed-in Grid Voltage Range |
195~253VAC |
|
Feed-in Grid Frequency Range |
49~51±1Hz |
|
Nominal Output Current |
26.1A |
|
Power Factor Range |
>0.99 |
|
Maximum Conversion Efficiency(DC/AC) |
97% |
|
Utility Charging Mode |
|
|
AC Charging Current(Max) |
100Amp(@V/p=230Vac) |
|
Floating Charging Voltage |
54Vdc |
|
General Specifications |
|
|
Safety Certification |
CE |
|
Operating Temperature Range |
-10℃ to 50℃ |
|
Storage Temperature |
-15℃- 60℃ |
Product Overview
48V Built-In MPPT Solar Charge Controller

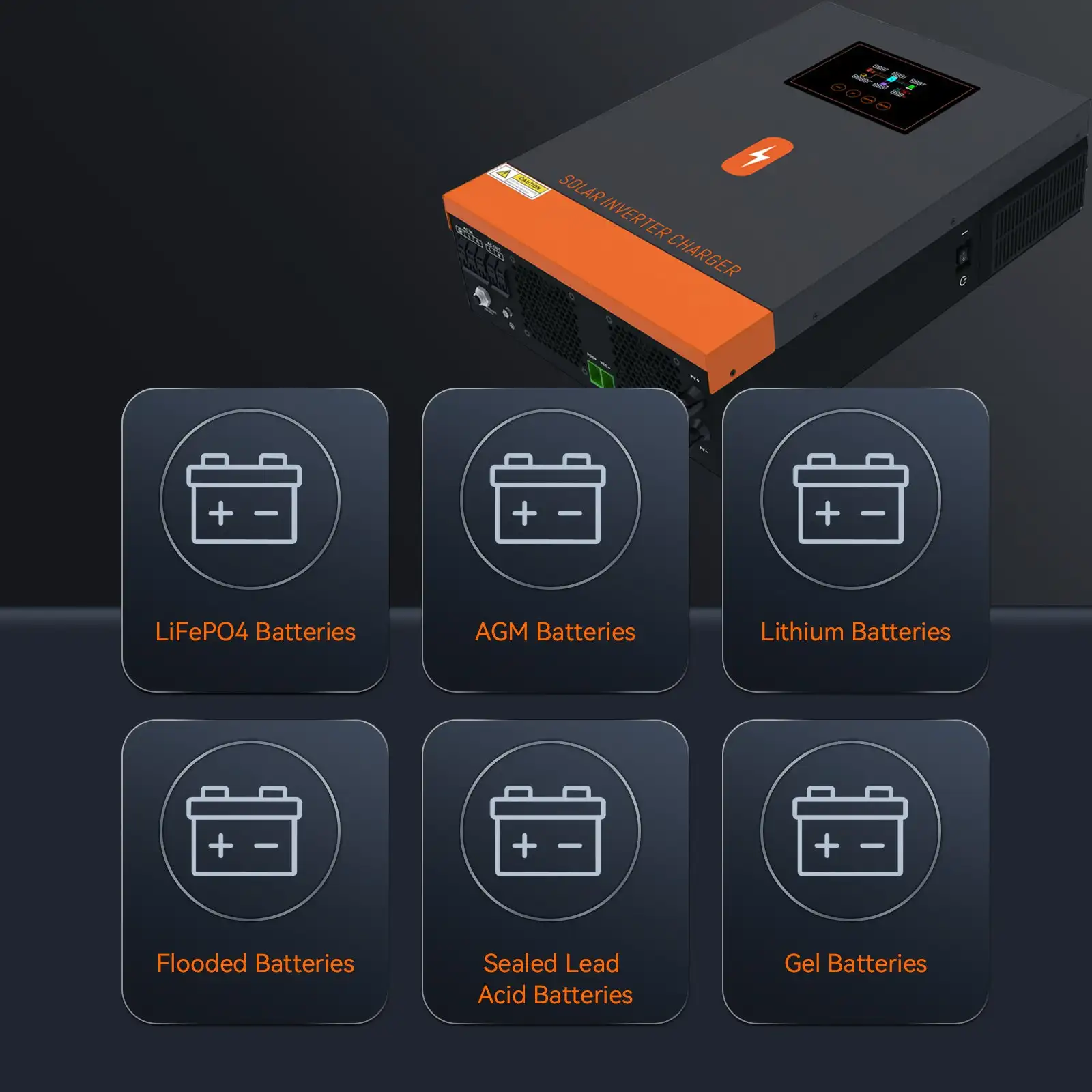

Compatible with 48V lithium, lead-acid, and user-defined batteries, the combanation of the MPPT solar charge controller and AC battery ensures the rapid and optimal performance. Maximize your battery system with a 120A charging current. Experience advanced power control in a compact design.
Full System Protection
The system offers comprehensive protections, automatically restarting during AC power recovery for uninterrupted power supply. Enjoy the benefits of overload, over-temperature, and short circuit protection, ensuring the safety of your system. Additionally, the smart battery charger optimizes performance, prolonging the lifespan of your batteries.

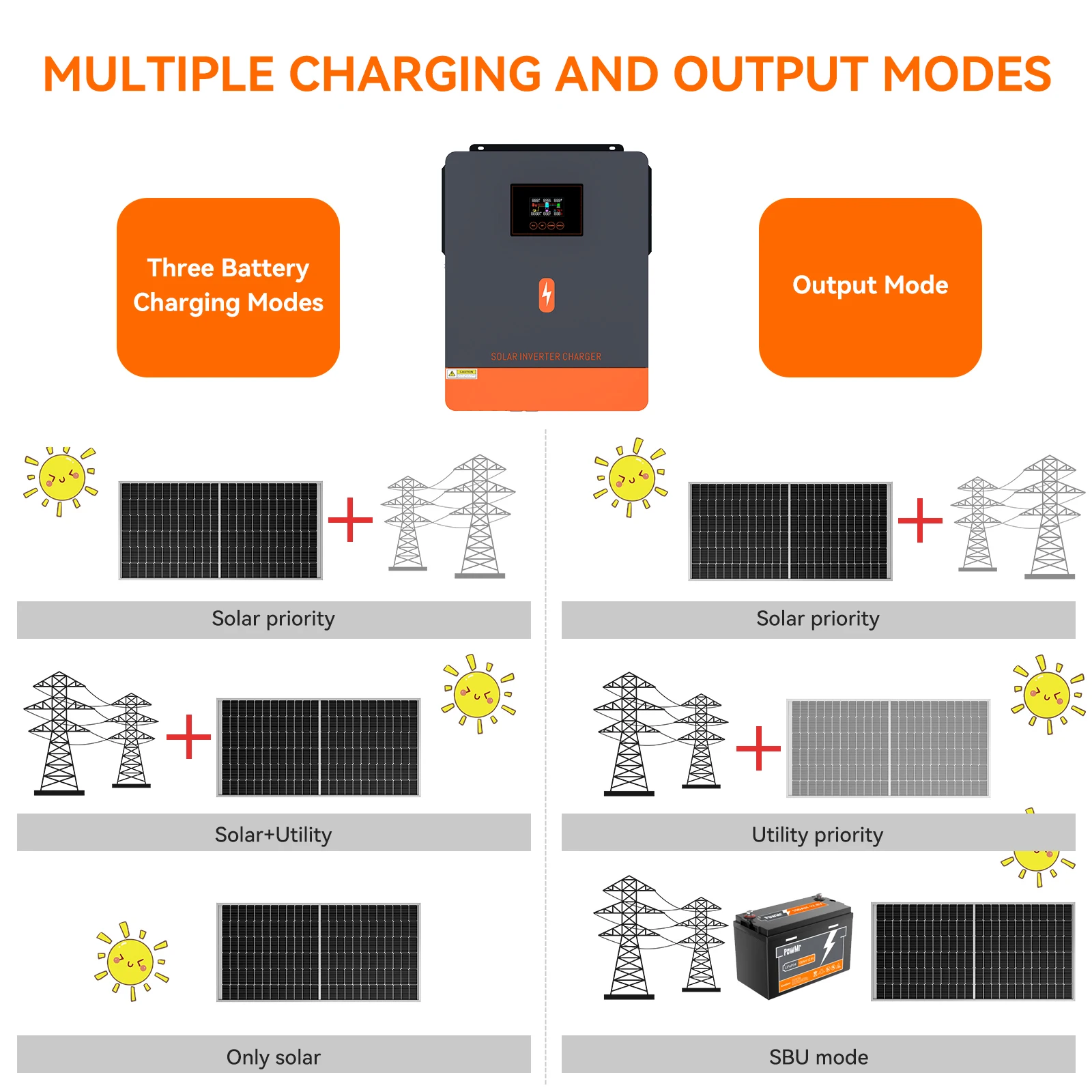

Diverse Charging and Output Modes
The Inverter Charger offers versatile power customization, with 3 charging modes (Solar Only, Utility First, or Solar&Utility) and 2 output modes (Solar First, Utility First). Tailor power delivery to your preferred source. In Solar Priority Mode, the inverter maximizes solar energy utilization by intelligently switching between utility and battery, based on a set battery voltage point.
Application
This solar inverter can power various electrical devices in the home or office, including electrical appliances such as tube lights, fans, fridges and air conditioners.

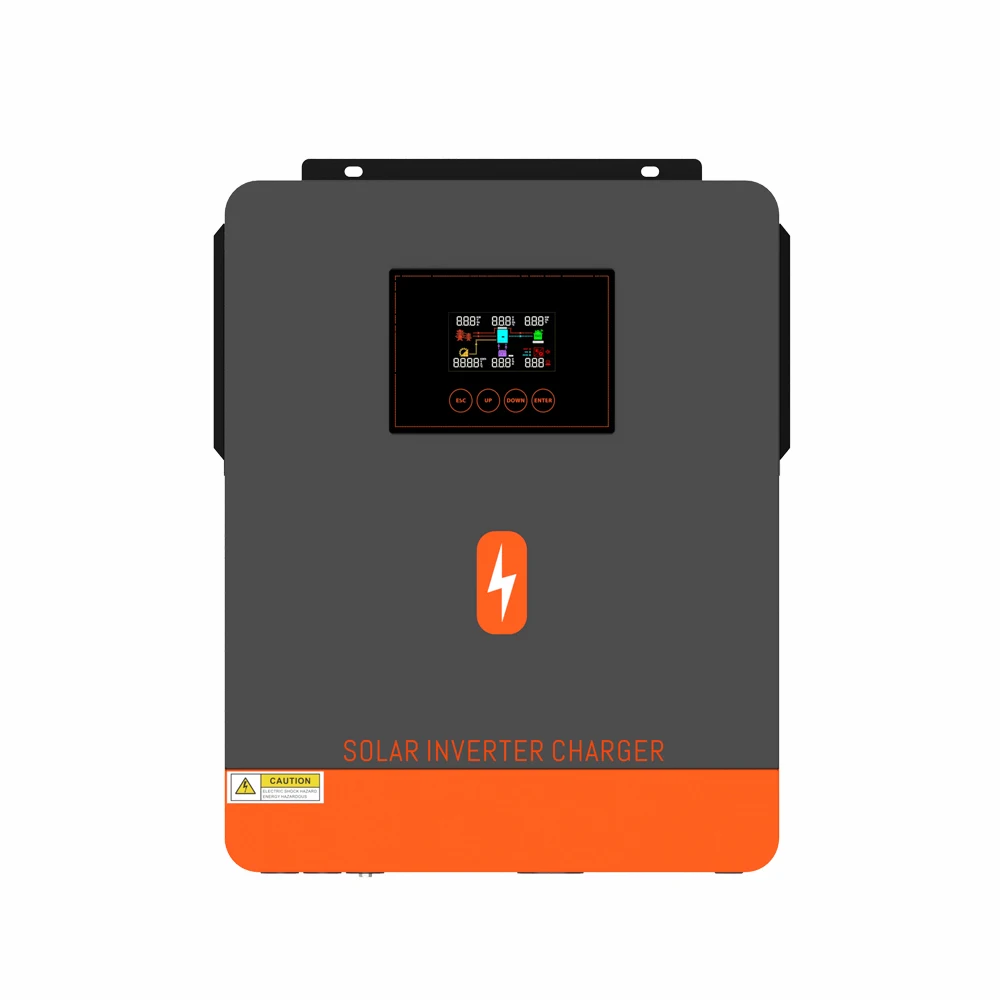

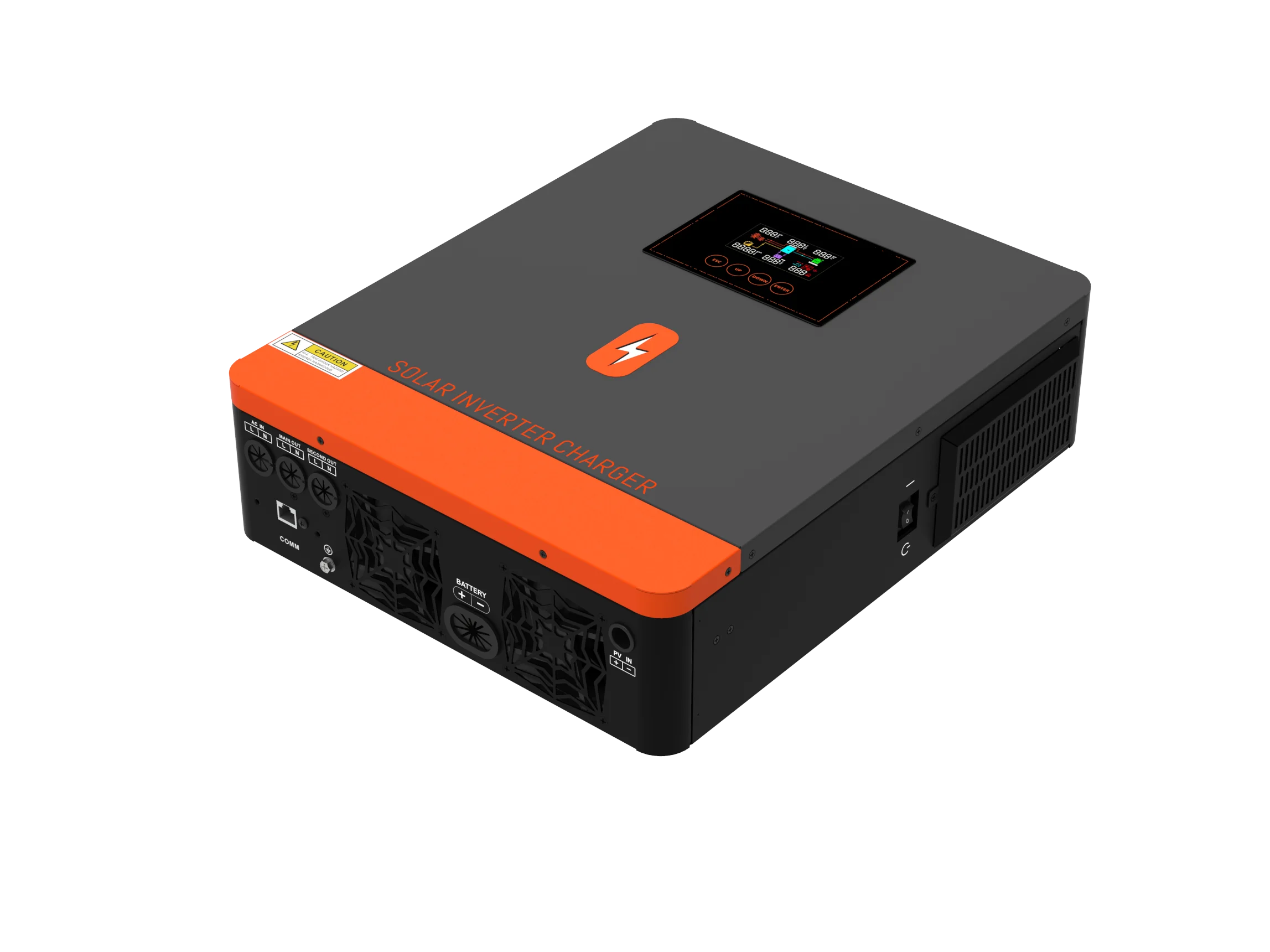

Product Pictures
