INVERTER MODEL |
POW-HVM4.2M-24V-N |
POW-HVM6.2M-48V-N |
|
Line Mode Specifications |
||
|
Input Voltage Waveform |
Pure Sine Wave(Utility or Generator) |
|
|
Nominal Input Voltage |
230Vac |
|
|
Max AC Input Voltage |
300Vac |
|
|
Efficiency(Line Mode) |
>95%( Rated R load,battery full charged) |
|
|
Transfer Time |
10ms typical(UPS);20ms typical(Appliances) |
|
|
Inverter Mode Specifications |
||
|
Rated Output Power |
4.2KW |
6.2KW |
|
Output Voltage Waveform |
Pure Sine Wave |
|
|
Output Voltage Regulation |
230Vac±5% |
|
|
Output Frequency |
50HZ |
|
|
Peak Efficiency |
0.93 |
|
|
Overload Protection |
3s@≥150% load;5s@101%~150% load |
|
|
Surge Capacity |
2* rated power for 5 seconds |
|
|
Nominal DC Input Voltage |
24Vdc |
48Vdc |
|
Cold Start Voltage |
23.0Vdc |
46.0Vdc |
|
No Load Power Consumption |
30W |
50W |
|
Charge Mode Specifications |
||
|
Charging Algorithm |
3-Step |
|
|
AC Charging Current (Max) |
100A |
100A |
|
Max. PV Array Power |
6200W |
6500W |
|
Nominal PV Voltage |
240Vdc |
360Vdc |
|
PV Array MPPT Voltage Range |
60Vdc~450Vdc (Battery Connected) 120Vdc~450Vdc (Battery Disconnected) |
90Vdc~500Vdc (Battery Connected) 120Vdc~500Vdc (Battery Disconnected) |
|
Max. PV Array Open Circuit Voltage |
500Vdc |
|
|
Max Charging Current(AC charger plus solar charger) |
120A |
120A |
|
Grid-Tie Operation |
||
|
Nominal Output Voltage |
220/230/240VAC |
|
|
Feed-in Grid Voltage Range |
195-253VAC |
|
|
Feed-in Grid Frequency Range |
49-51±1Hz/59-61±1Hz |
|
|
Nominal Output Current |
18.2A |
26.9A |
|
Maximum Conversion Efficiency(DC/AC) |
97% |
|
|
Two Load Output Power |
||
|
Full Load |
4200W |
6200W |
|
Maximum Main Load |
4200W |
6200W |
|
Maximum Second Load(battery model) |
1400W |
2066W |
|
Main Load Cut Off Voltage |
26VDC |
52VDC |
|
Main Load Return Voltage |
27VDC |
54VDC |

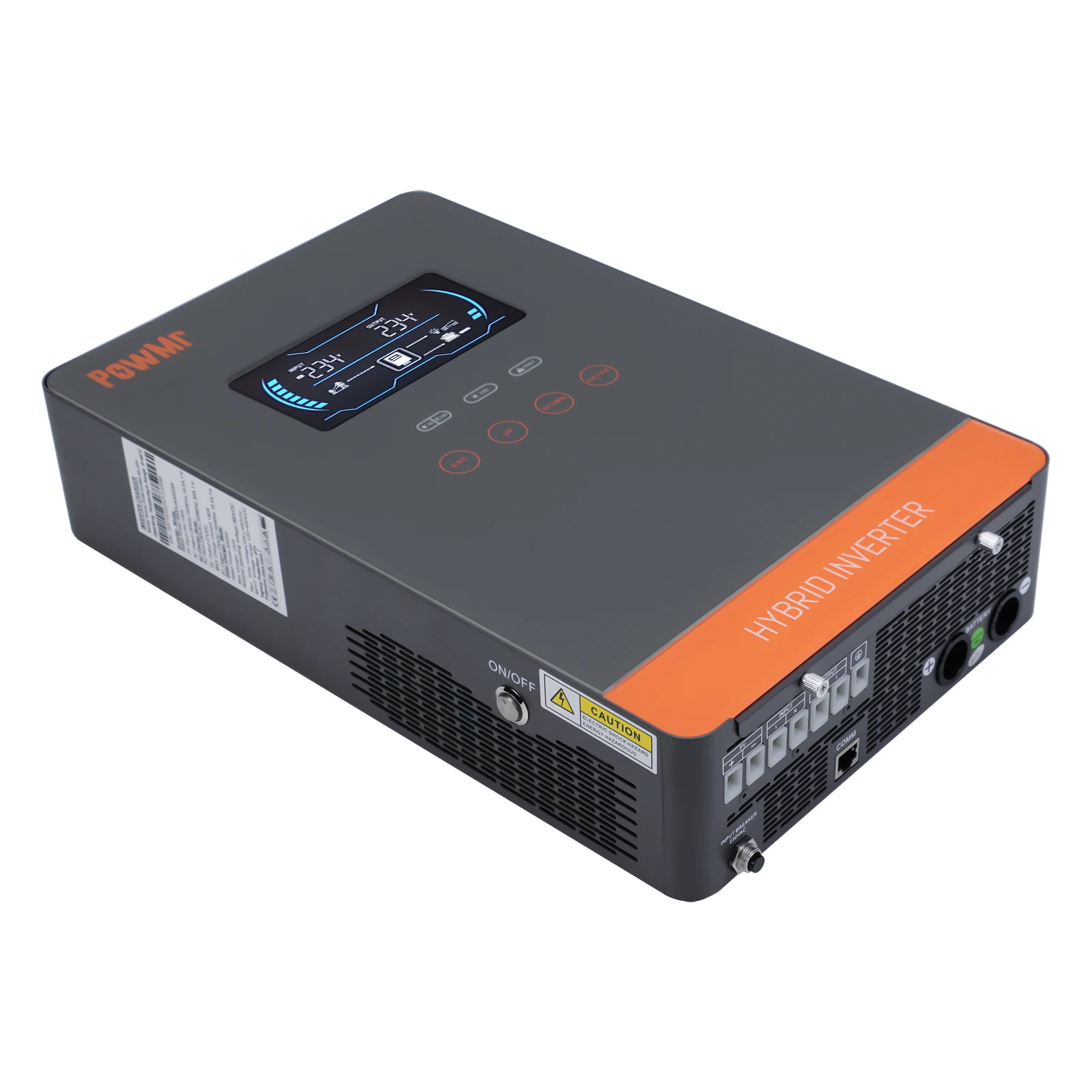

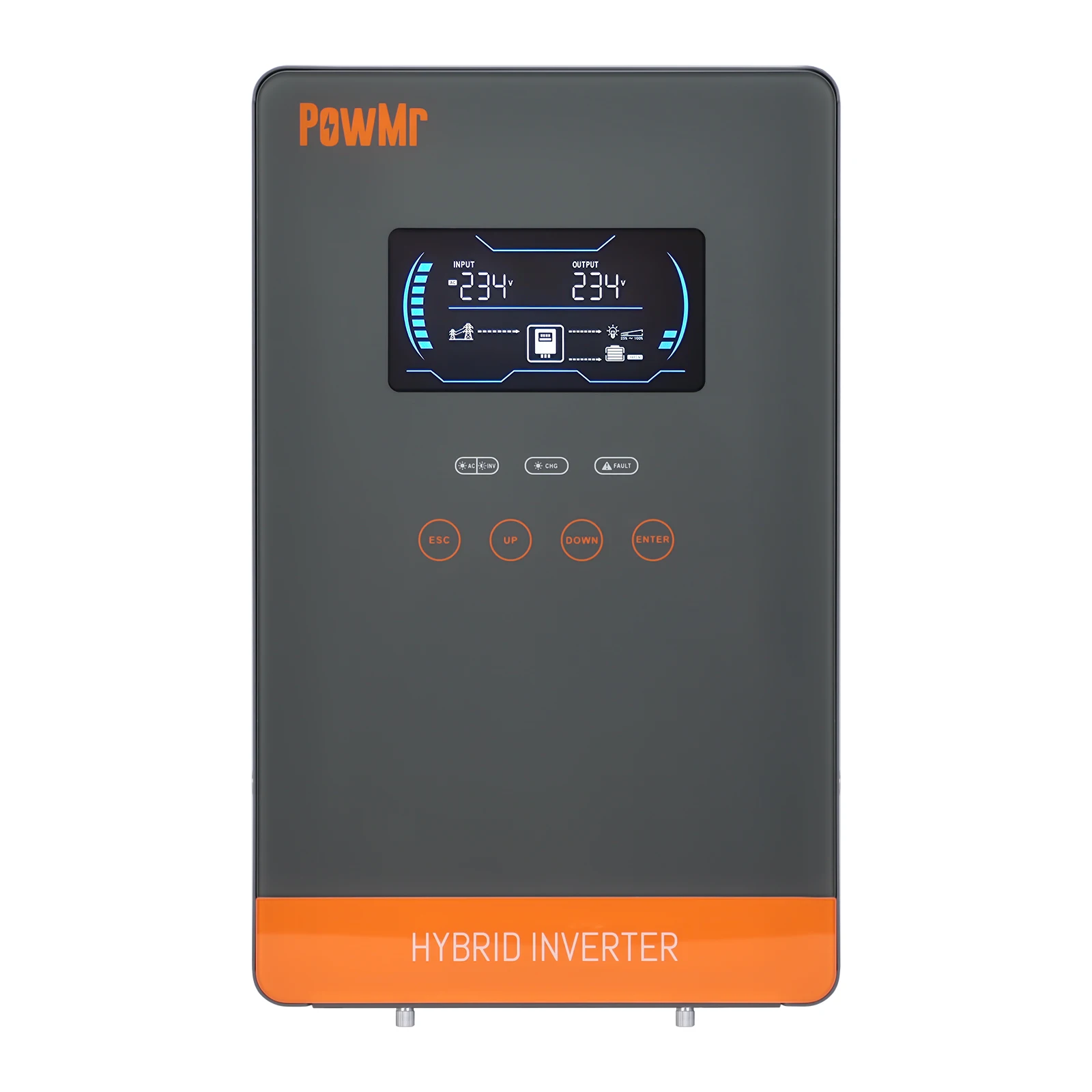

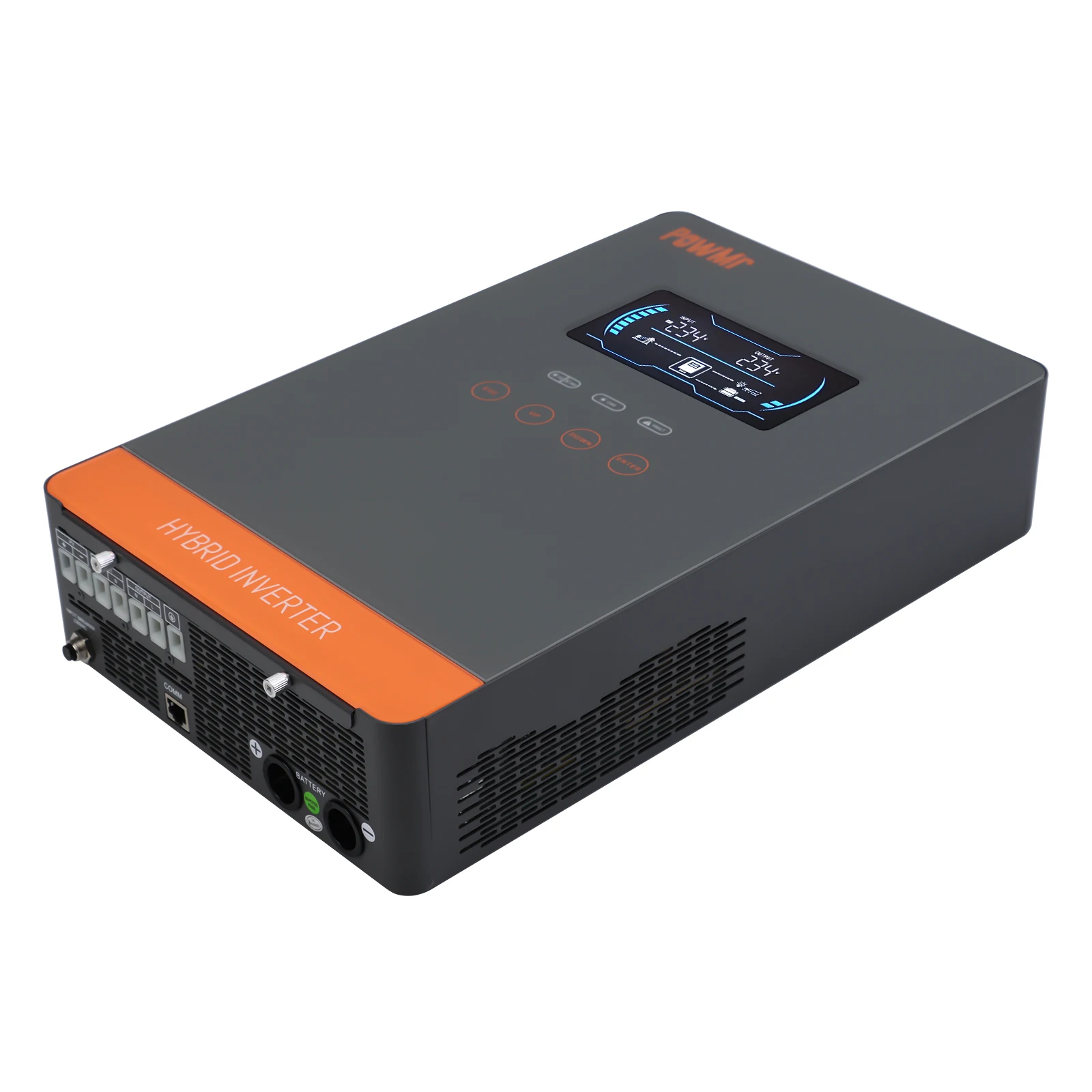

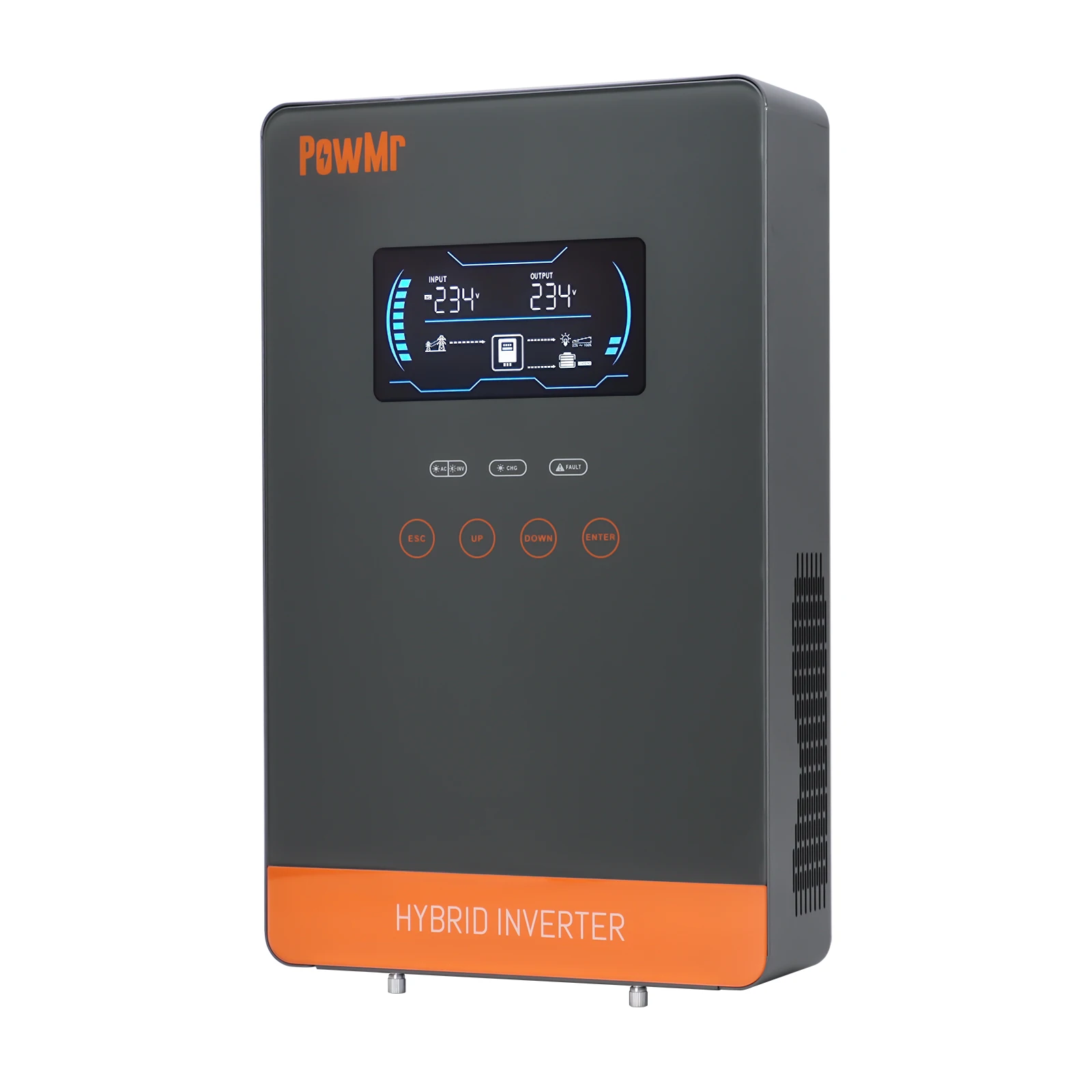

PowMr 4500W 6500W Hybrid Solar Inverter 24V 48V 230VAC On Grid Pure Sine Wave Inverter with MPPT 130A 150A Solar Battery Charger
Notice:
For European Union customers, You can select shipping from China, We will ship from EU warehouse. You don’t pay extra money. The estimated delivery is 3-7 days. Please contact us to confirm whether the EU warehouse is available before placing a order.
Feacture:
– 55V~450VDC(Battery Connected) or 120V~450VDC(Without Battery) wide voltage range for PV access.
|
MODEL |
POW-HVM4.5K-24V |
POW-HVM6.5K-48V |
|
Input Voltage Waveform |
Sinusoidal(utility or generator) |
|
|
Nominal Input Voltage |
230Vac |
|
|
Max AC Input Voltage |
300Vac |
|
|
Nominal Input Frequency |
50Hz/60Hz(Auto detection) |
|
|
Output Short Circuit Protection |
Line mode:Circuit Breaker; Battery mode:Electronic Circuits |
|
|
Efficiency(Line Mode) |
>95%(Rated R load,battery full charged) |
|
|
Rated Output Power |
4.5KVA/4.5KW |
6.5KVA/6.5KW |
|
Output Voltage Regulation |
230Vac±5% |
|
|
Peak Efficiency |
94% |
|
|
Surge Capacity |
2* rated power for 5 seconds |
|
|
Nominal DC Input Voltage |
24Vdc |
48Vdc |
|
Floating Charging Voltage |
27Vdc |
54Vdc |
|
PV Rated Power |
6000W |
6500W |
|
PV Charge Current |
150A |
130A |
|
Max.PV Array Open Circuit Voltage |
450Vdc |
|
|
PV Array MPPT Voltage Range |
55V~450VDC(Battery Connected) or 120V~450VDC(Without Battery) |
|
|
Standby Power Consumption |
2W |
|
|
Safety Certification |
CE |
|
|
Operating Temperature Range |
0℃ to 55℃ |
|
|
Storage temperature |
-15℃~60℃ |
|
|
Dimension(D*W*H),mm |
468*318*159mm |
|
|
Net Weight, kg |
9KG |
|
Compatible with multiple battery types can be combined with different types of battery, such as AGM, GEL, FLD, SLD, LI, USER. The right battery for the inverter can maximise charging efficiency, provide
Protection of safety charging short circuit protection, over current protection, over voltage protection, low voltage protection, overload protection, backfill protection, over temperature protection, overload protection. Comprehensive protection for safer and safer charging
Wide applicationCan provide power for various electrical devices in home or office environments, including electrical appliances such as lamps, fans, refrigerators, air conditioners, coffee machines, etc.
