Recommend Accessories |
|||
|
10AWG Solar Extension Cable |
|
10AWG Solar Extension Cable(with female and male connectors) is made of tin plated conductive copper material, low resistance to ensure good electrical conductivity. (Red + Black). It is made of excellent PPO insulation material, which has good flame retardancy, self-extinguishing properties, high strength, abrasion resistance and corrosion resistance. IP67 level of waterproofing allows the solar panel wire to work outdoors for a long time, can withstand extreme heat and cold (-40℉ ~ +194℉). |
|
|
Solar Connector (Male & Female Plug) |
|
1500Vdc; WaterProof; |
|
|
Solar Circuit Breaker with Replaceable Fuses |
|
Easy to plug and compatible with solar pv connector. Replaceable inside fuse, easy to change a new fuse if broken. Multiple plugging and unplugging cycles, provides a cycle use. High current carrying capacity. PPO housing: high temperature, abrasion, flame and blotches resistance. Thick tinned copper terminal and unique housing–self design and patent. The highest waterproof level IP68 with abrasion resistance silicone O type ring. |
|
|
Reset Circuit Breaker Fuse Holder with Manual Inlinee Fuse |
|
Suitable for car audio video Home Solar system overload protection. 1.Made from alloy material of good electrical conductivity. 2.Protect electrical appliances from excessive current. 3.Switch type, easy to operate. 4.Press once to disconnect, very convenient. 5.Simply push the red part back to reconnect. 6.Can be mounted on panel or firewall. |
|
-
Advanced MPPT maximum power point tracking technology charge controller with tracking efficiency is no less than 99.5%.
-
High quality components solar charger the maximum conversion efficiency can reach97%.
-
Super fast maximum power tracking speed controller while ensuring tracking efficiency.
-
Accurate identification and tracking of the maximum power point of multi-wave peak.
-
Reliable maximum input power of PV array to ensure the safety of equipment.
-
12 24v AUTO voltage identification, wide PV array maximum power point operating voltage range.
-
The charger’s LCD is designed to dynamically display the operation data and working status of the equipment.
-
Various load control modes: general mode, light control mode, dual-time mode, pure charger mode and timing mode.
-
Lead-acid and lithium charging processes can be selected.
-
Dual USB port charging
NOTE: The controller will start PWM function at high voltage disconnection (HVD) voltage point, which limits voltage rising to protect battery.
|
Rated Charge Current |
20A |
30A |
40A |
|
System rated voltage |
12V/24VAuto work |
||
|
Voltage range of battery |
8-32V |
||
|
Max open voltage of PV module |
55V |
75V |
100V |
|
Battery Type |
User default，Sealed，Flooded，GEL，LiFePO4 |
||
|
Equalized charging voltage |
Maintenance-fee lead acid battery 14.6V, GEL: No; Lead acid flooded battery:14.8V |
||
|
Absorption charging voltage |
Maintenance-fee lead acid battery 14.4V, GEL:14.2; Lead acid flooded battery:14.6V |
||
|
Floating charging voltage |
Maintenance-fee lead acid battery, GEL, Lead acid flooded battery:13.8V |
||
|
Low voltage re-connection(LVR) |
Maintenance-fee lead acid battery, GEL, Lead acid flooded battery:12.6V |
||
|
Low voltage disconnection(LVD) |
Maintenance-fee lead acid battery, GEL, Lead acid flooded battery:10.8V |
||
|
Static loss |
≤9.2mA 12V; ≤11.7mA24V |
||
|
High voltage disconnection(HVD) |
16V(24V×2) |
||
|
Duration of absorption charging |
2 Hours |
||
|
Light control voltage |
5V |
||
|
Charge loop voltage drop |
≤0.29V |
||
|
LCD Temperature |
-20℃~+70℃ |
||
|
Operating Temperature |
-20℃~+55℃(To run at full rated current continuously) |
||
|
Working humidity |
≤95% No condensation |
||
|
Protection class |
IP30 |
||
|
Dimension(LxWxH)mm |
123×178×48 |
133×195×55 |
150×220×67 |
|
Installation hole size(LxW)mm |
108×120ȼ5 |
116×140ȼ5 |
132×130ȼ5 |
Clear display and Simple wiring to use
-
EASY WIRING: Press and push forward controller’s cover first, then insert your battery cable and PV cable,
-
Clear display: Use Menu and Set, view controller’s charging parameter.
3 modes load working design:
-
Manual mode: you can turn on/off your LOAD manual.
-
Solar light control Mode: When PV voltage drop to 5V, controller is identified as sunset, then turns on the LOAD; Morning PV voltage raise to 5V, controller identified as Sunrise will turn off your Load.
-
Solar light+Time Control Mode: Sunset turns on Load, then set a working time, controller will turn off at specified time which set by yourself.

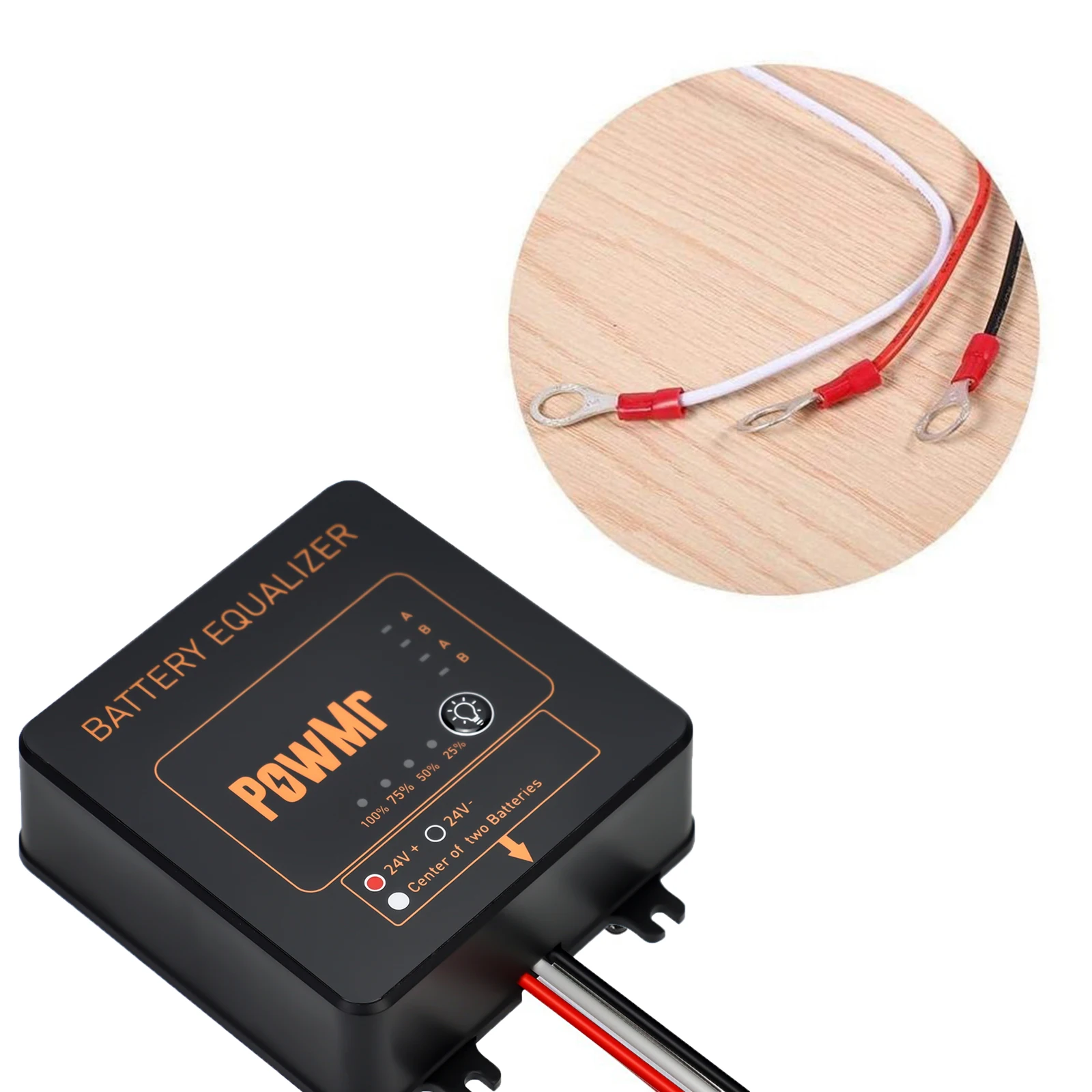

Description:
This battery equalizer can be connected in series or in parallel for a long time in the battery, so as to automatically maintain the balance of the battery state to keep batteries in heath condition and extend battery service life.
This equalizing battery charger is suitable for Lead-acid Batteries(VRLA)(Sealed=AGM,Flooded,Gel,Calcium), Lithium Iron Phosphate Batteries(LFP), Nickel Cadmium Secondary Batterie.

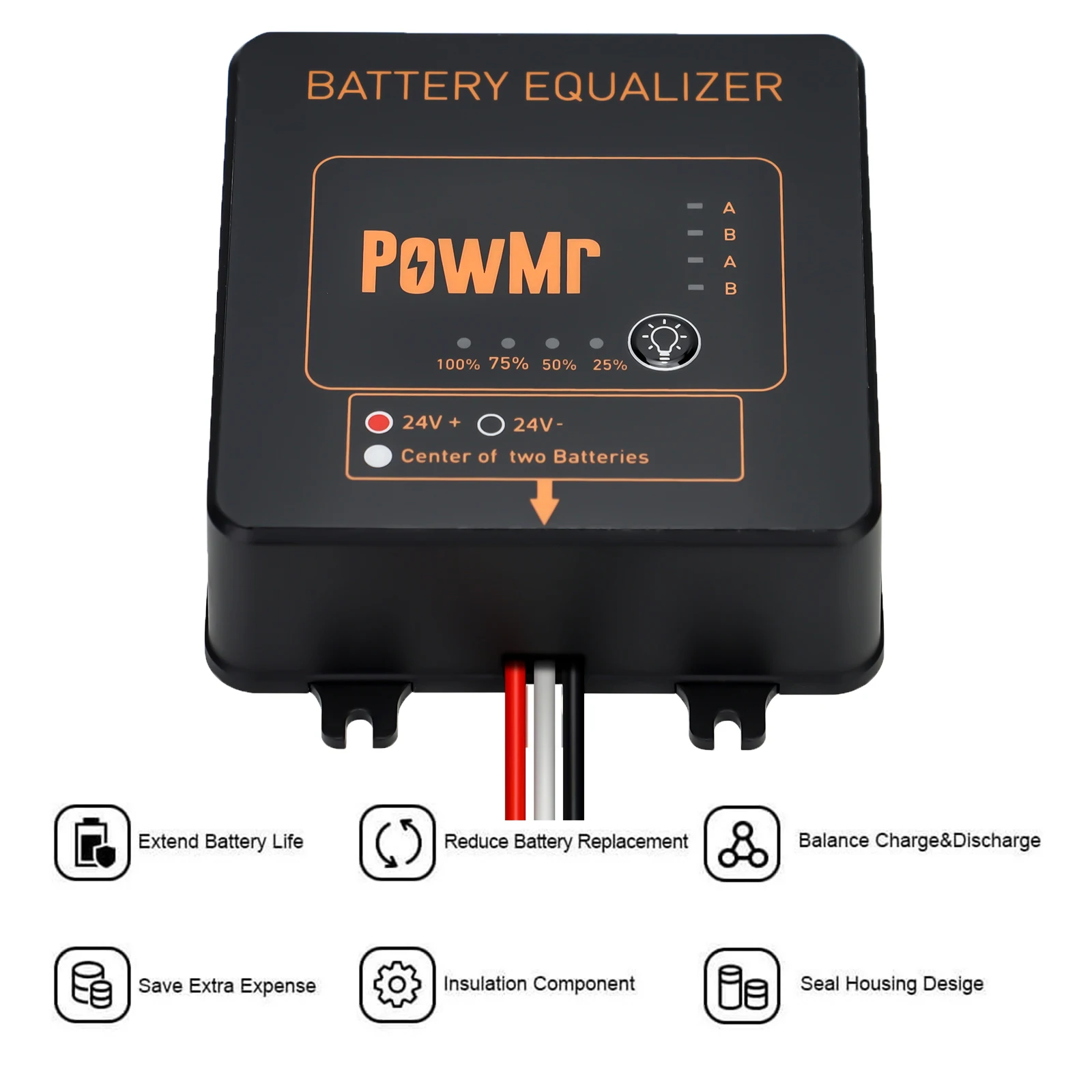

Features:
[Balance Charge & Discharge]Special battery balancer for the solar system can balance charge and discharge.
[Reduce Battery Replacement]Battery balancer extends battery life and reduces battery replacement.
[Useful]The battery balancer makes the series-parallel battery get a stable voltage when charging.
[Widely Applicable]Suitable for use in autos, boats, golf carts, motorcycles, solar, trucks, RV’s, electric forklift batteries, etc.
[Multiple Protections]Reverse polarity protection.
Note:

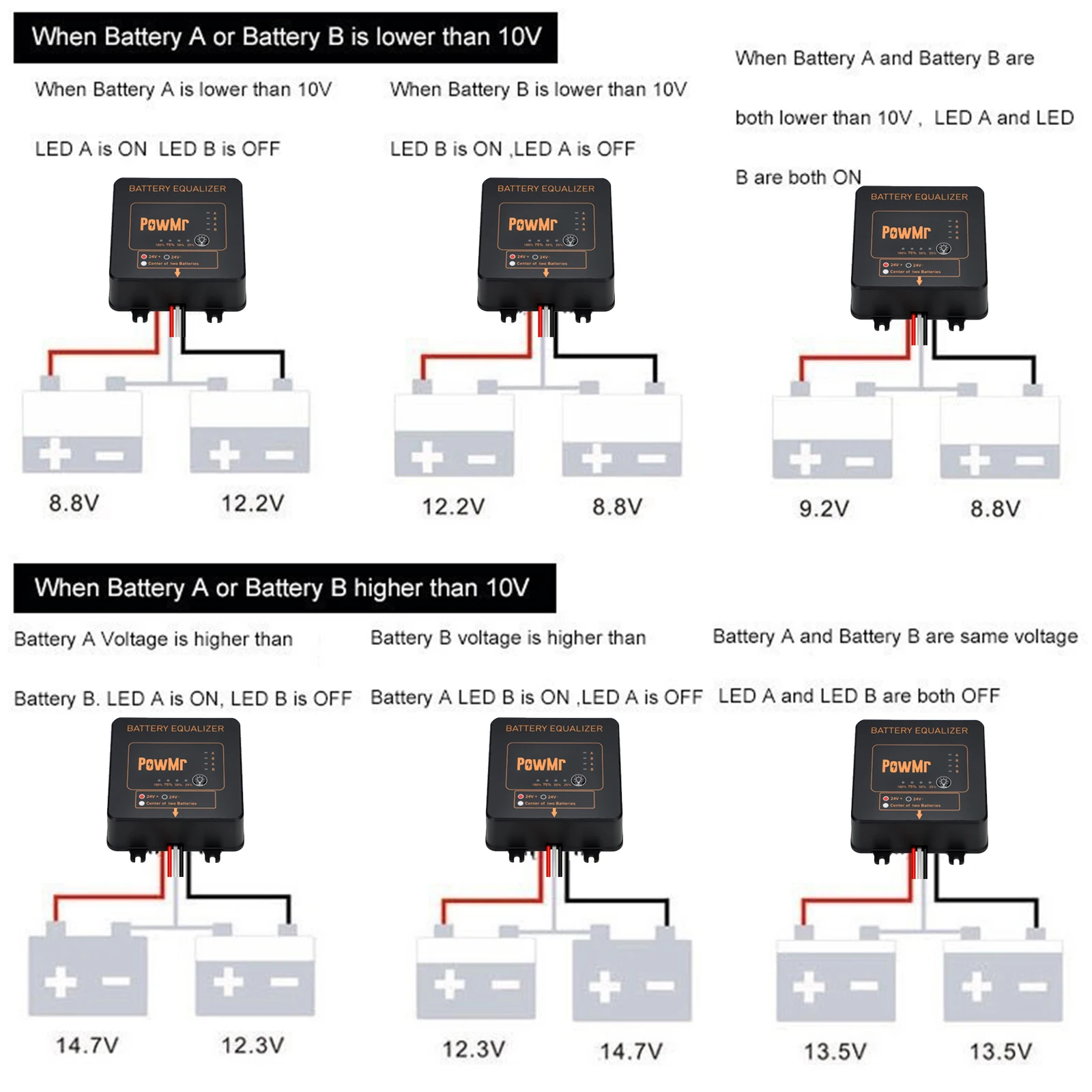

1. Since each battery has a different internal resistance, charging and discharging will cause the battery to be unbalanced.
2. It is not that the battery voltage can be balanced as soon as the equalizer is connected, but it takes a period of time to balance the unbalanced battery voltage after it is connected.

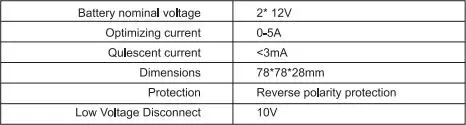

Specifications 24V :
