Keyestudio Multi-purpose Shield V1Or Shield V2 Learning Board Based On Arduino Download Program To Complete Experiment

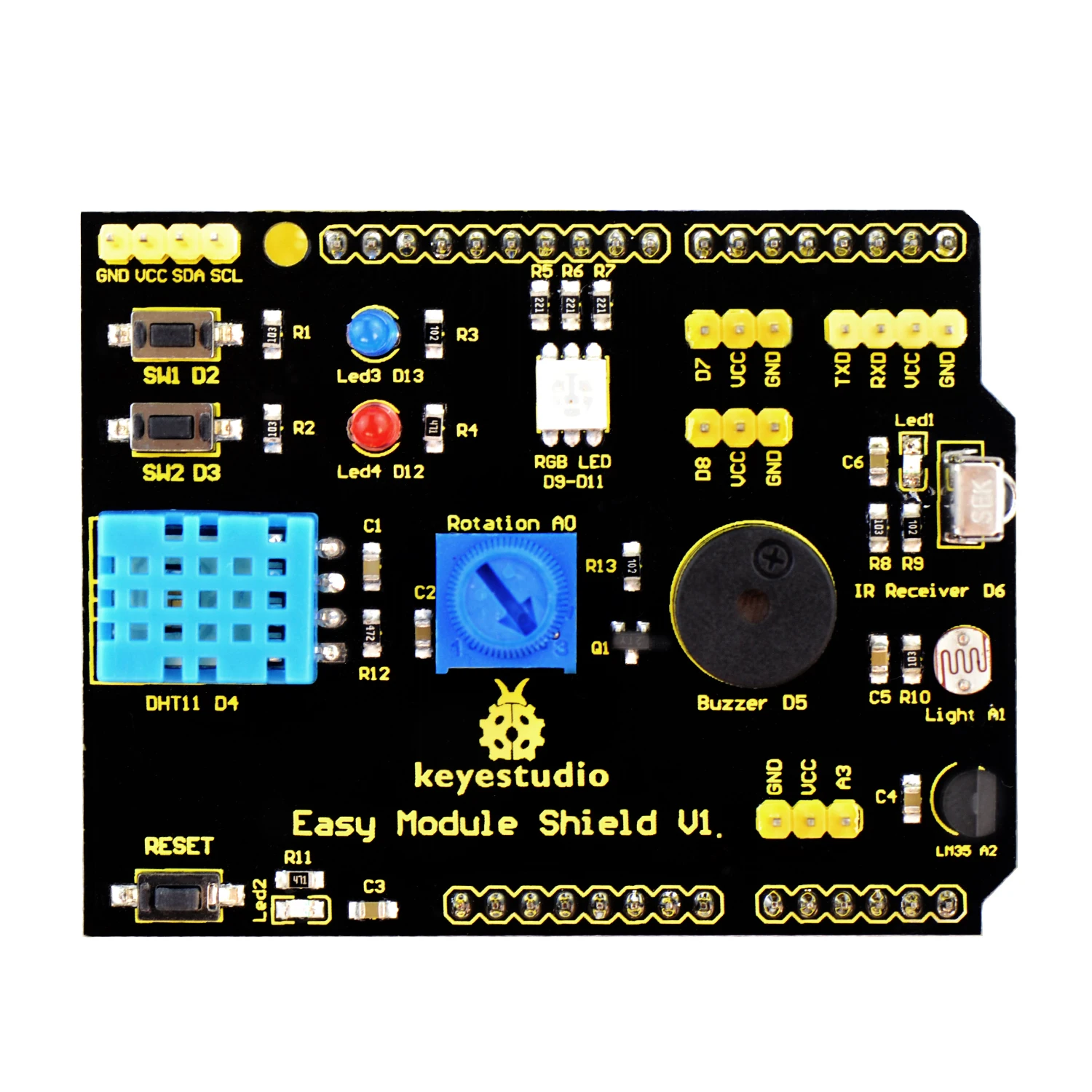

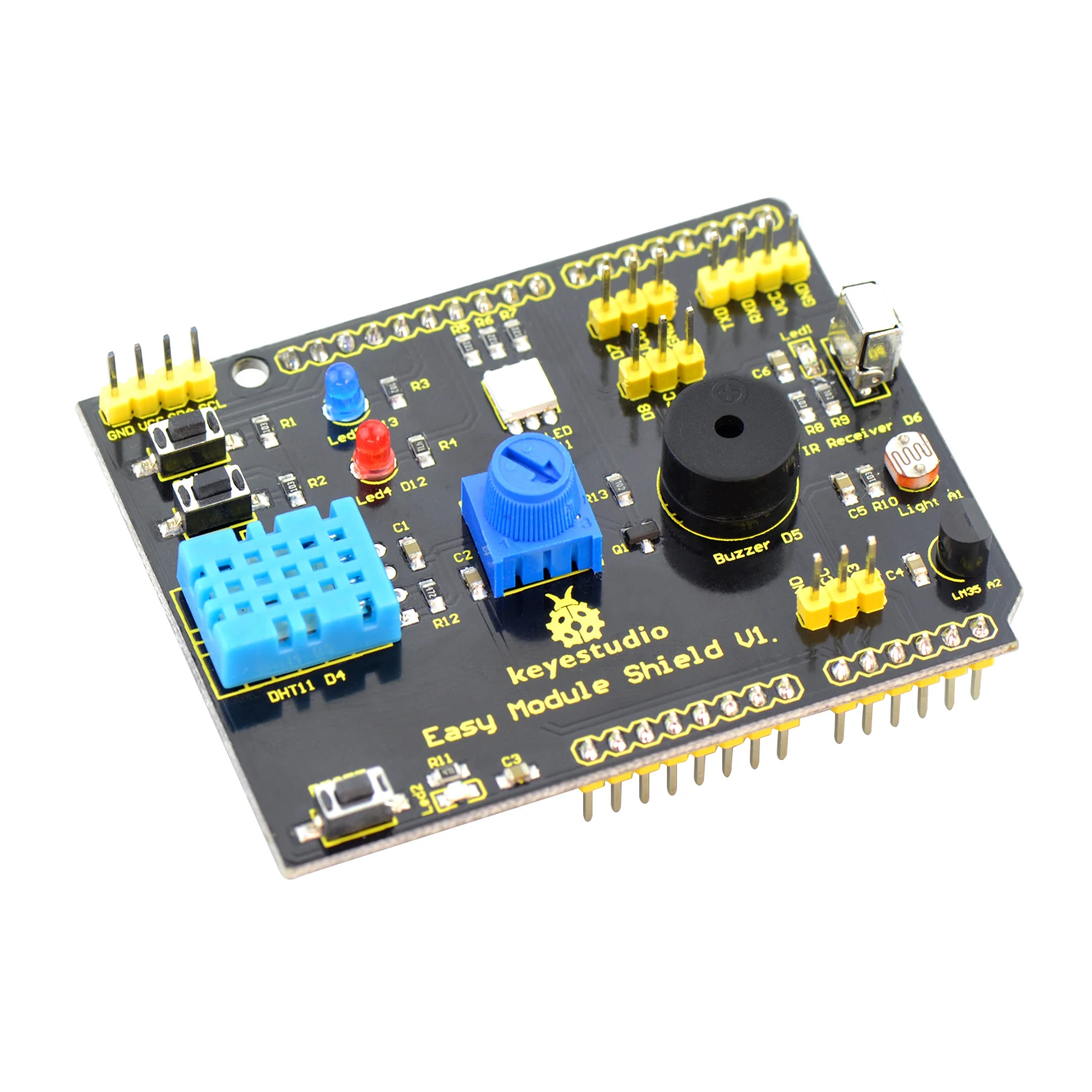

Introduction

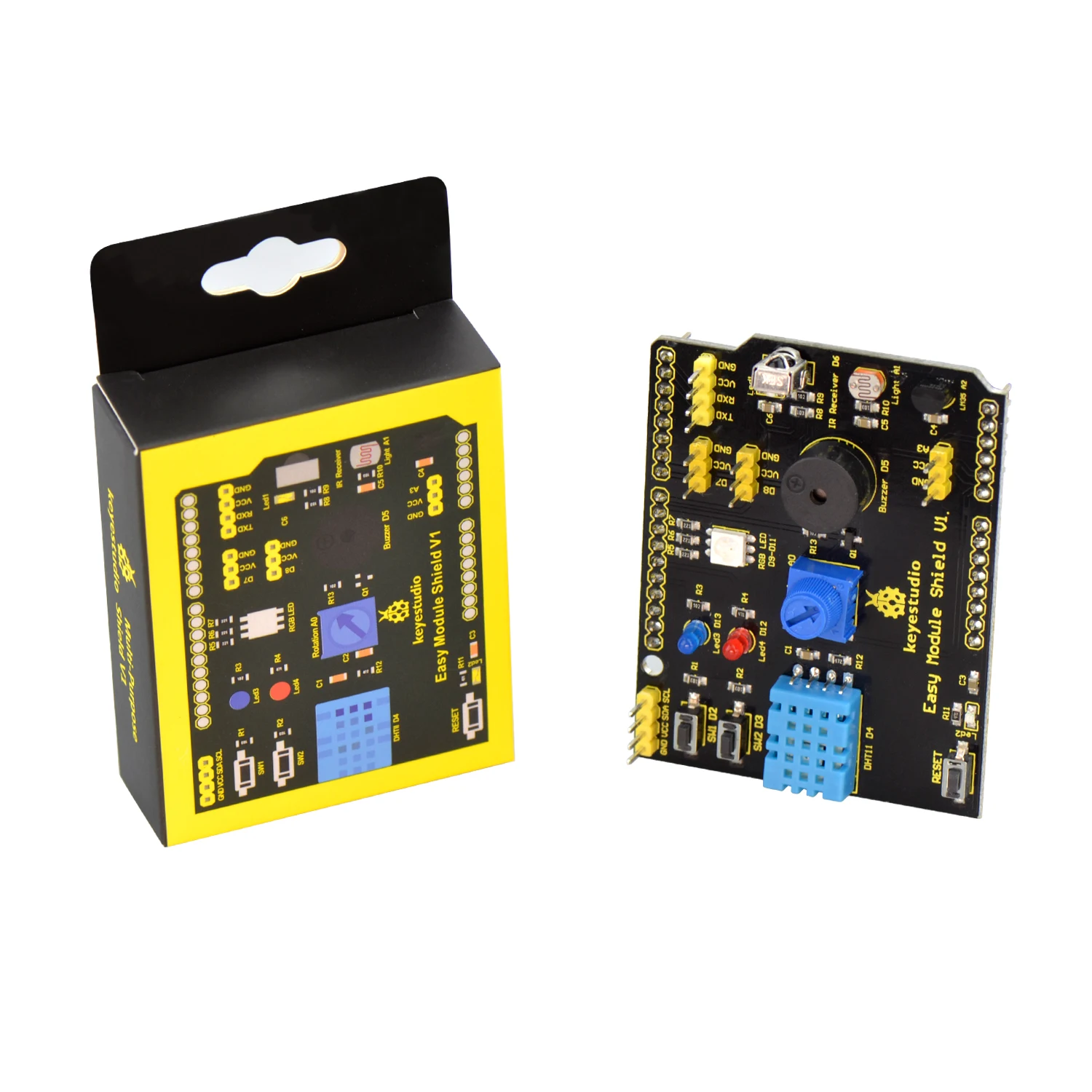

Multi-purpose Shield V1 is a learning board based on Arduino. No need for soldering and connection.Download the program to complete experiment.

It is multi-purpose and we offer code libraries of all modules that have been tested. You can use them directly.

There are extension ports on the shield to help you to complete other experiments.

Specification

Compatible with main controllers such as UNO R3 and MEGA.

Comes with 2 LED indicators to show the program status.

Comes with 2 switches for external interrupt experiment.

Comes with a reset button

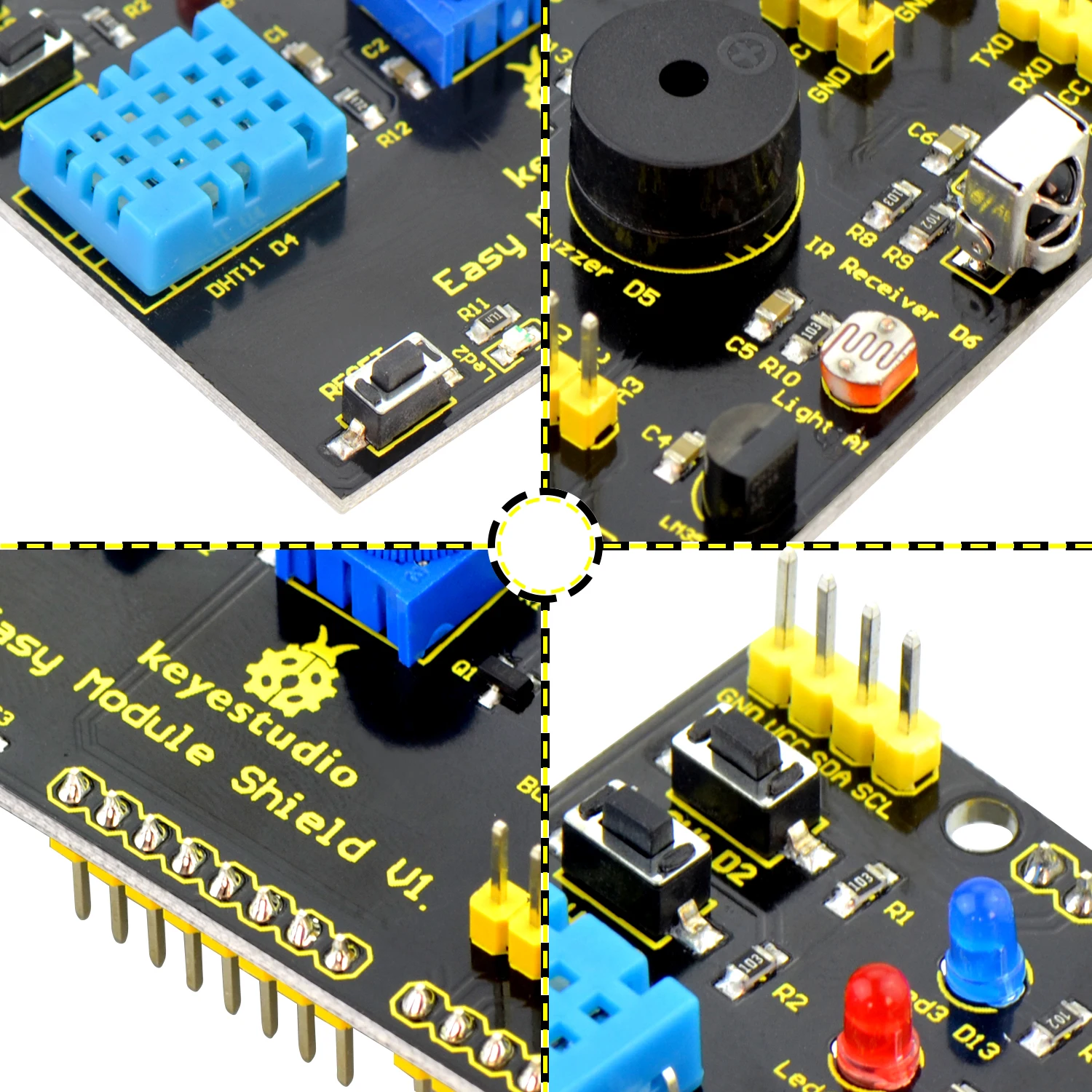

Comes with DHT11 sensor for measuring temperature and humidity.

Comes with a potentiometer for analog input

Comes with a passive buzzer for alarm.

Comes with a full-color RGB LED

Comes with a photocell to detect the brightness of light

Comes with LM35D temperature sensor

Comes with an infrared receiver

2digital pins（D7 and D8）

1 analog pin（A3）

One IIC interface

One TTL serial pin

Details

Dimensions: 69mm*53mm*19mm

Weight: 21g

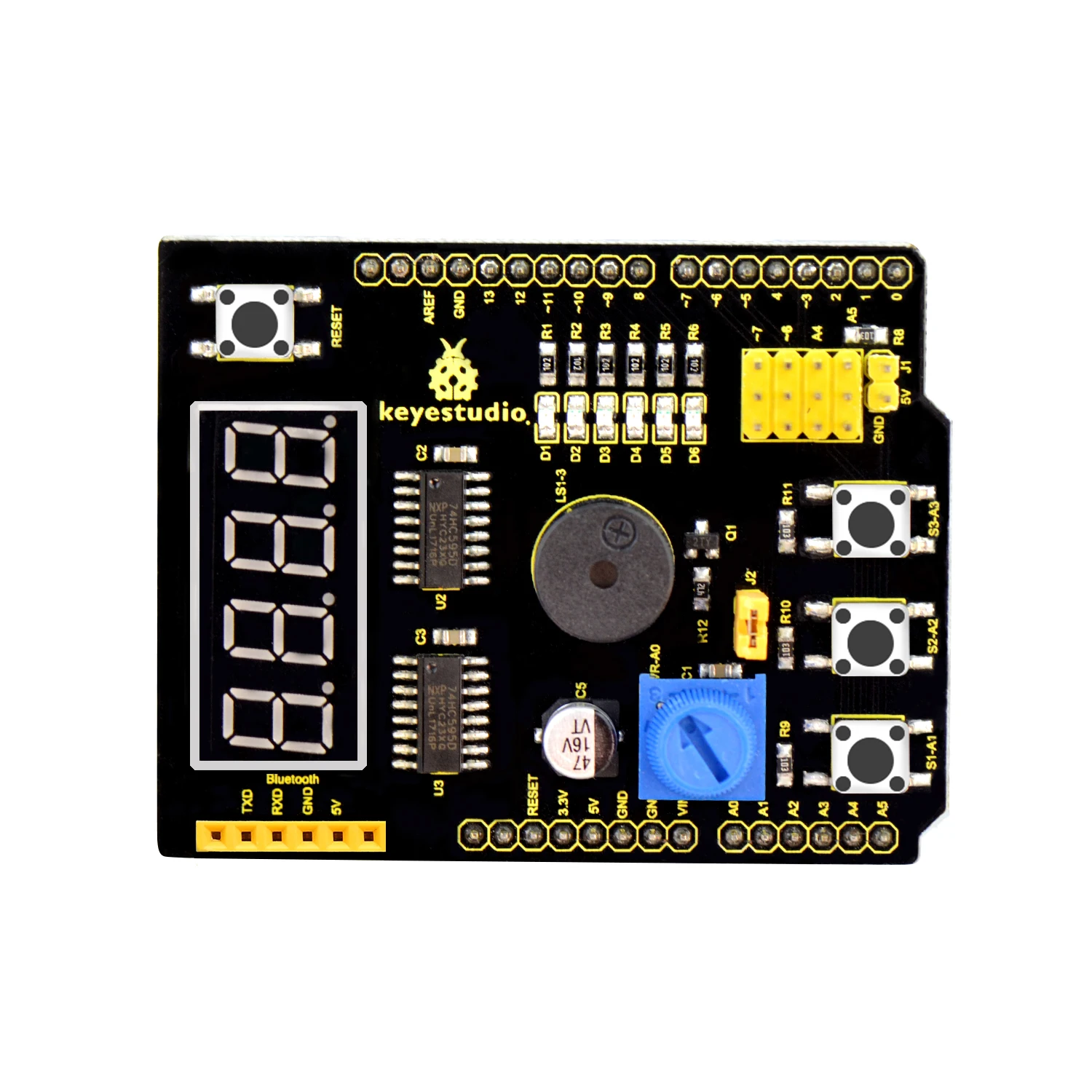

Introduction

Multi-purpose Shield V1 is a learning board based on Arduino. No need for soldering and connection.Download the program to complete experiment.

It is multi-purpose and we offer code libraries of all modules that have been tested. You can use them directly. There are extension ports on the shield to help you to complete other experiments.

Specification

Compatible with main controllers such as UNO R3 and MEGA2560.

Comes with 6 LED indicators to show the program status.

Comes with 3 switching buttons

Comes with a reset button

Comes with a potentiometer for analog input

Comes with a passive buzzer for alarm.

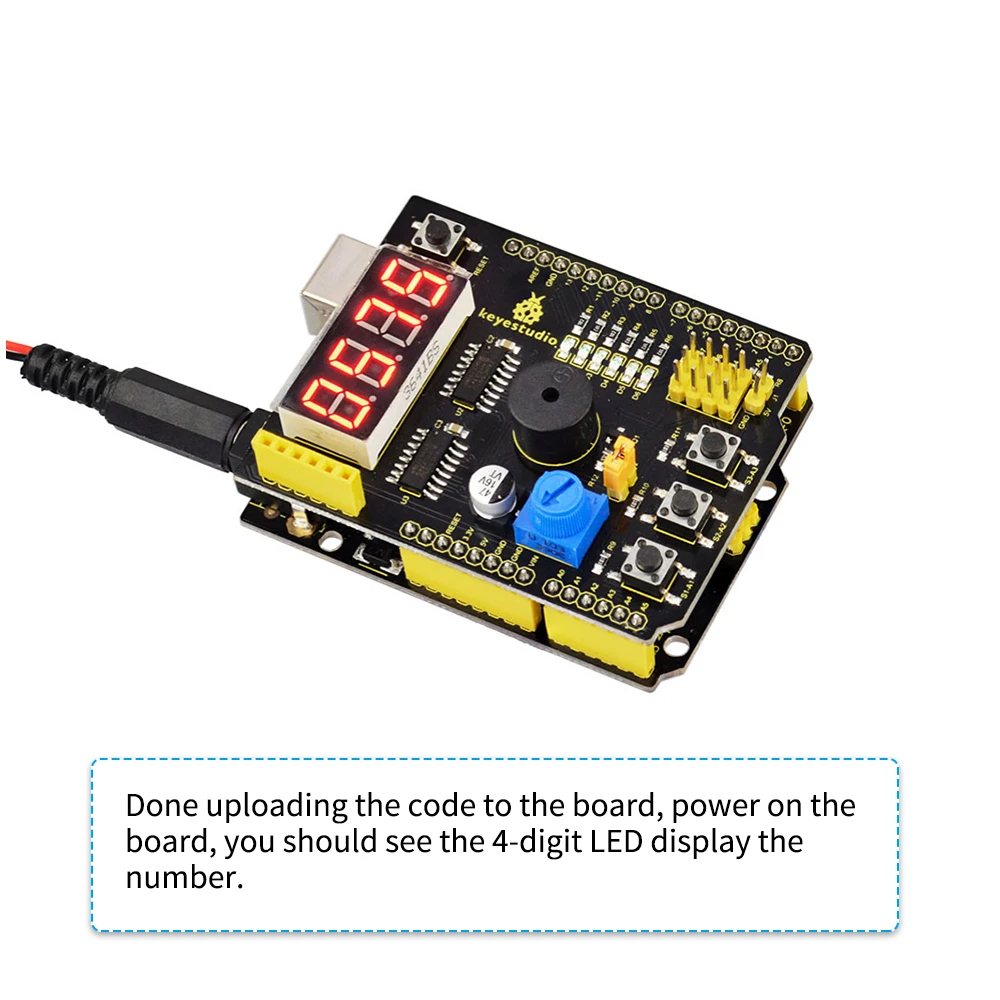

Comes with a 4-digit LED display to show the number

Dimensions: 68mm*54mm*19mm

Weight: 23g
