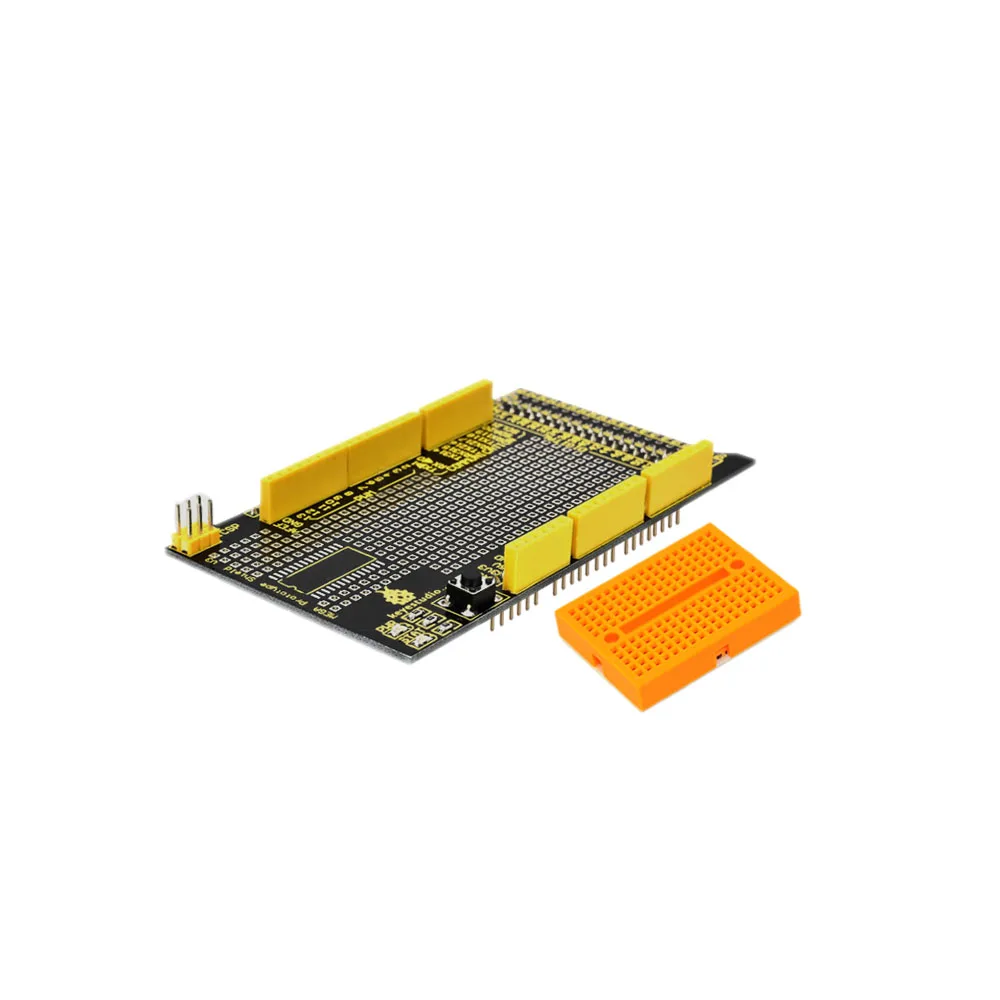

Keyestudio Protoshield for Arduino
Parameters:
Can be plugged into the Arduino controller.
Extend 5V, 3V and Arduino Vin pins.
Comes with a Reset button.
Extend out all control pins and power pins of the Arduino.
Able to build the prototyping circuits matched with Arduino.
Access to SOIC SMD pin, supporting the soldering of SOIC chips up to 14pin.
Includes a 170-hole breadboard.
Resources: //fs.keyestudio.com/KS0003

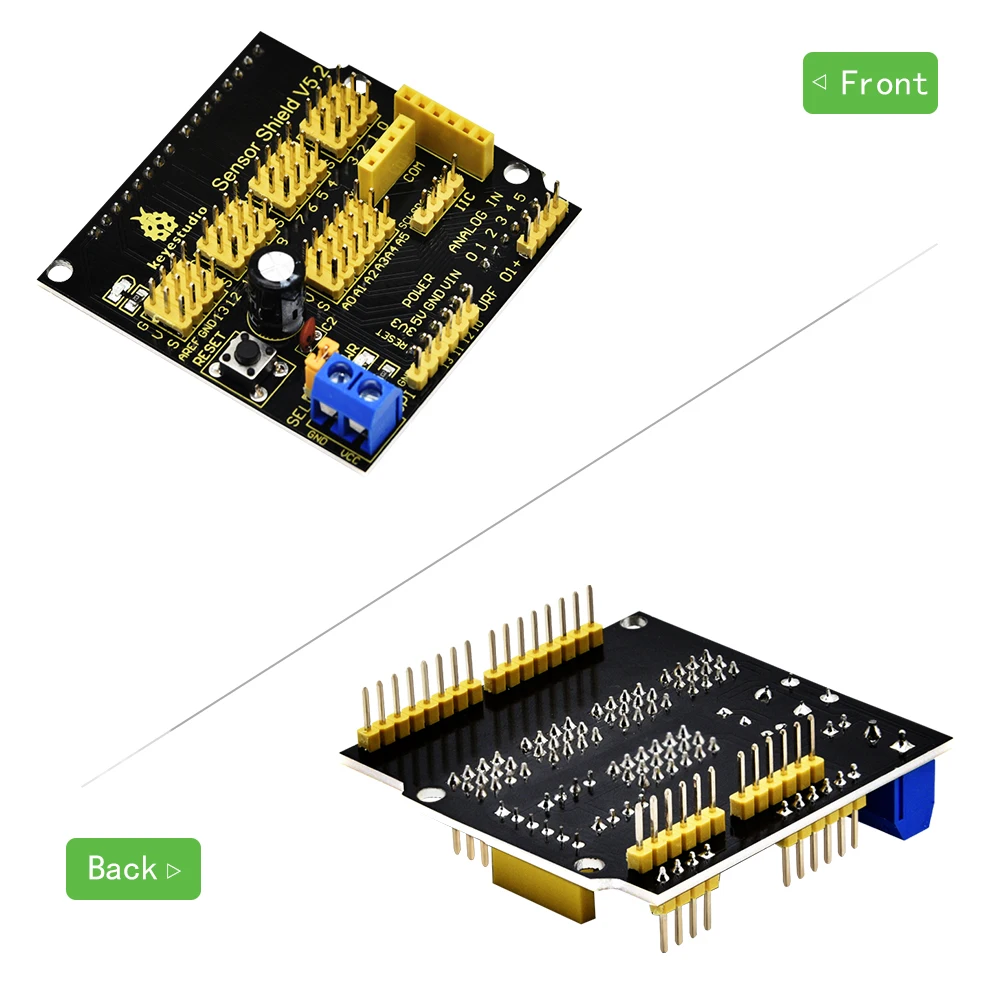

Keyestudio Sensor Shield V5 for Arduino
Introduction:
In the experiments, you might often use UNO R3 control board and several sensor modules. If the interfaces of power output is not enough, you may need to add a breadboard and use many connection wires. Is it really troublesome？
But now, with this keyestudio sensor shield, you can easily solve that problem. This shield is fully compatible with UNO R3 control board, so you can easily stack it onto UNO R3 for use.

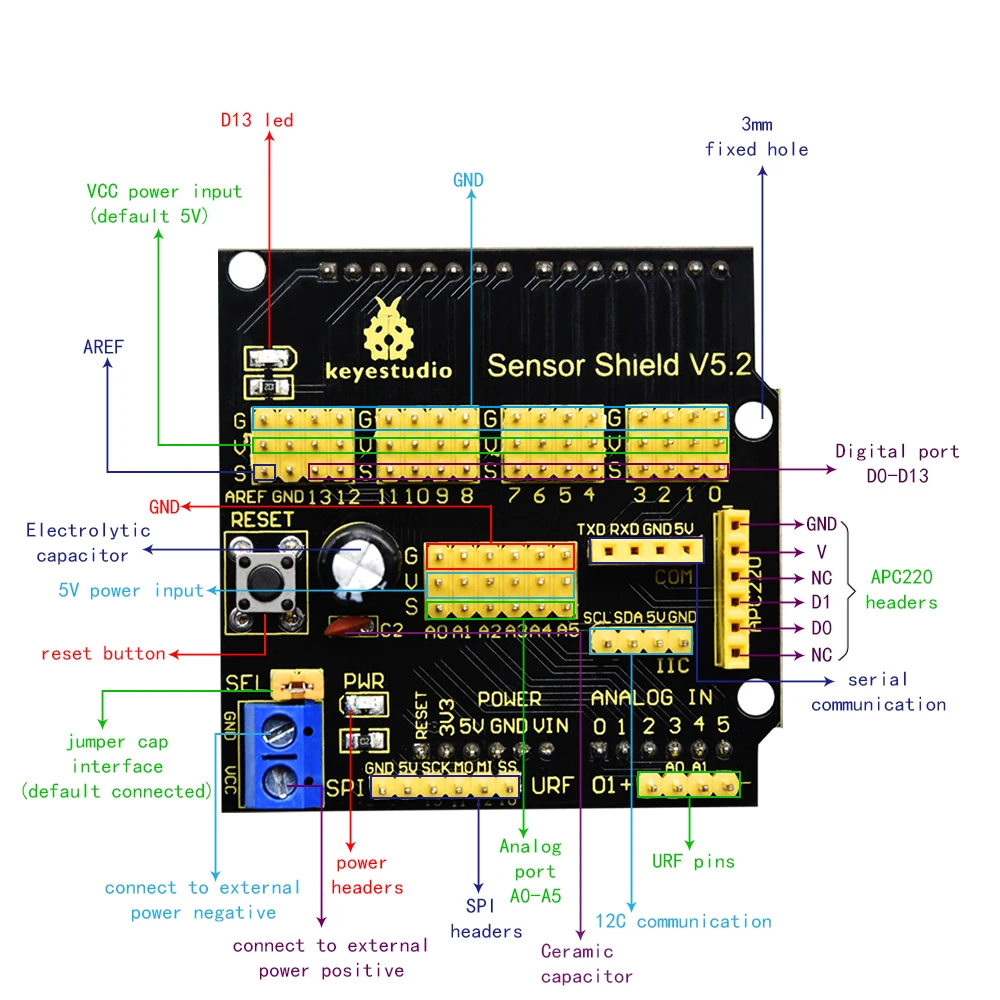

This keyestudio sensor shield has extended the digital and analog ports out as 3PIN interface (G,V, S), which can directly connect 3PIN sensor modules.
It also breaks out some communication pins of 2.54mm pitch, like serial, IIC, and SPI communication.
The shield comes with a reset button and 2 signal indicators as well.
Additionally, you can supply the voltage needed to the sensor modules through blue terminal blocks on the shield. Because some sensor modules is not used with 5V or 3.3V but with special voltage.
Specification:
Extends an Arduino Reset button
Comes with a built-in power indicator and a D13 indicator
Breakout all the digital and analog ports of UNO R3 as 3PIN headers
A serial communication interface
A I2C communication interface
A SPI communication interface
Comes with a URF interface
Comes with an APC220 interface
You can supply the voltage needed for sensor modules via terminal blocks.
Resources: //fs.keyestudio.com/KS0004

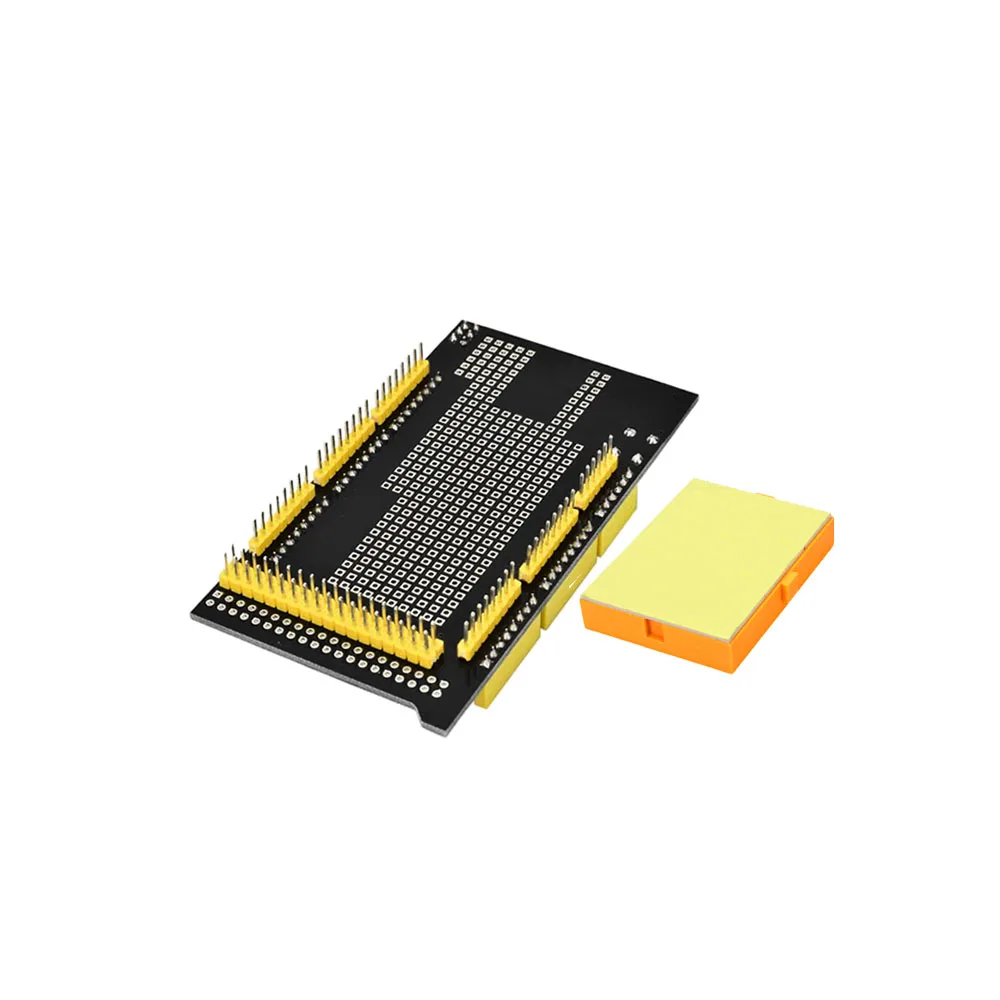

Keyestudio MEGA Protoshield V3 for Arduino
Introduction:
Keyestudio ProtoShield is particularly designed for the MEGA 2560 . It makes it easy for you to design custom circuits and solder electronics directly on it.
For convenient use, there is a large prototyping space of both connected and unconnected spaced through-holes on the shield.
There is also a soldering position reserved for SMD chip on the protoshield. You can easily solder SMD ICs on the prototyping area to test them with your Arduino board.
It also extends out a row of power and ground through-holes, giving enough port resources.
You can even stick a tiny 170-holes breadboard (included) on the prototyping area. You can weld elements on the shield directly or connect circuits with tiny breadboard.
Feature:
Can be plugged into the MEGA 2560 control board
Extends 5V, 3V and Arduino Vin pins
Comes with a Reset button
Comes with a power led and a D13 indicator
Extends an ICSP interface
Extends out all the control pins and power pins of Arduino
Able to build the prototyping circuits matched with Arduino
Can weld with 28PIN chip
Includes a tiny 170-hole breadboard
Resources: //fs.keyestudio.com/KS0005
MEGA Sensor Shield V1 for Arduino
Introduction:
Have you met with these troubles? when connecting a couple of sensor modules to MEGA 2560 control board, sometimes power output interfaces are not enough, so need to use the breadboard and the wiring is rather troublesome.
Now don’t worry about that. You can use this keyestudio MEGA sensor shield.
It is fully compatible with MEGA 2560 control board, so that you can easily stack the MEGA sensor shield onto the MEGA 2560 control board.
The shield comes with digital and analog interfaces in 3PIN (G V S), easy to connect the 3PIN sensor modules. Besides, it comes with communication pins of 2.54mm pin pitch, such as serial and SPI communication.
It comes with a reset button and 2 signal indicators as well.
Note: for the 3PIN interface, the voltage of Analog pins (labeled V) is 5V; while the voltage of Digital pins (labeled V) is VCC, that is, the voltage input via a blue terminal block, default by jumper connected, connecting the voltage to 5V on the shield.
Specification:
Can be plugged into the MEGA 2560 control board
Comes with a Reset button
Comes with a power led and a D13 indicator
Extends the digital and analog interface of MEGA into 3PIN
Comes with a serial communication interface
Extends an ICSP interface
Extends a SPI interface
Extends a URF01 interface
Extends an APC220 interface
Able to supply the voltage to sensor modules via the terminal block (jumper cap off)
Resources: //fs.keyestudio.com/KS0006
