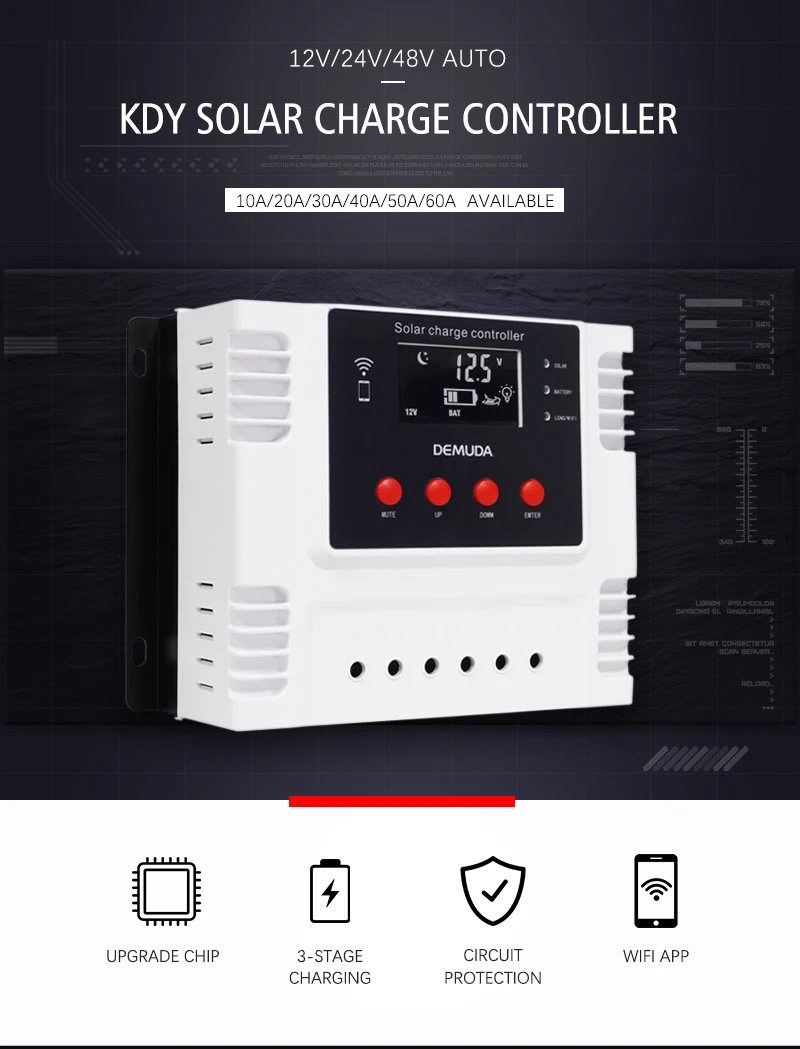

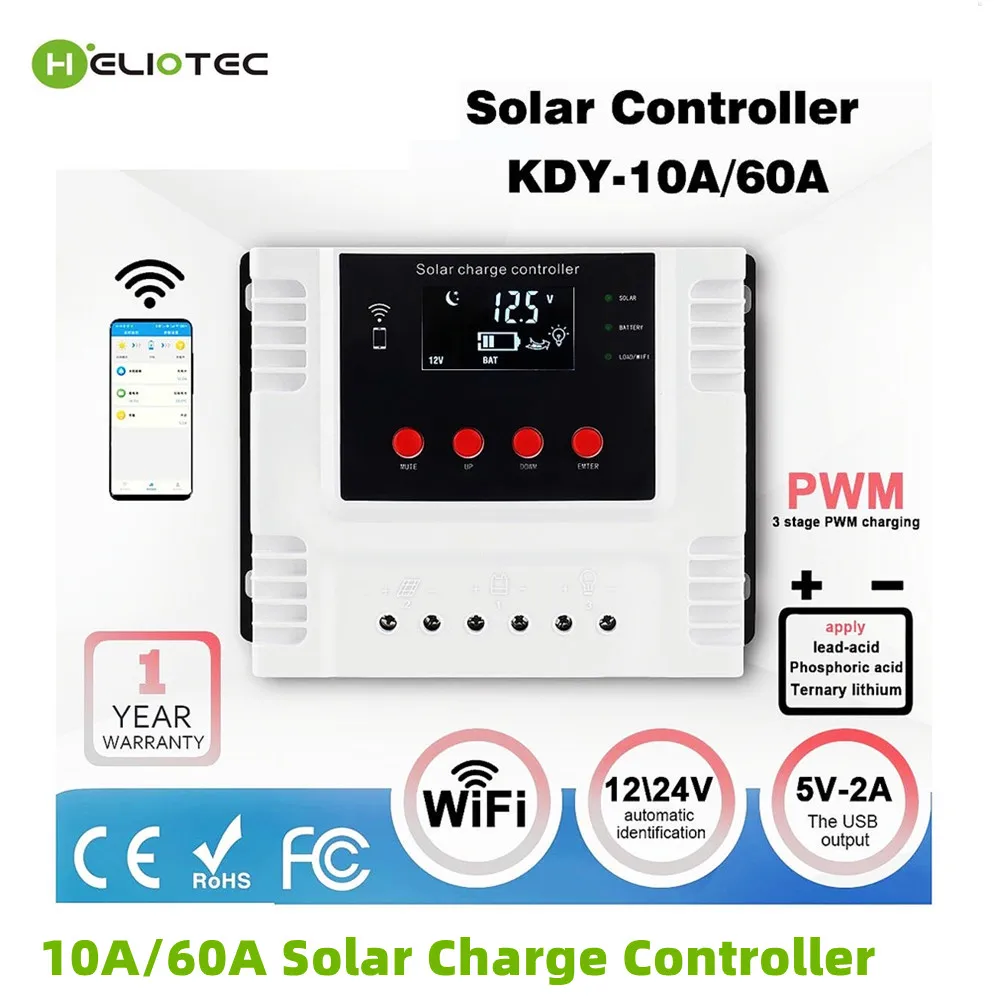

HELIOTEC Solar Charge Controller Wi-Fi App Control for 12V/24V/48V 10A 20A 30A 40A 50A 60A Lithium and Lead-Acid Batteries

Features:

* Wide range of applications, suitable for villas, outdoor RVs, solar power generation systems, yachts and ships, solar billboards, solar street lights, etc.

* Suitable for a variety of batteries, suitable for lead-acid batteries, lithium iron phosphate batteries, ternary lithium batteries, etc.

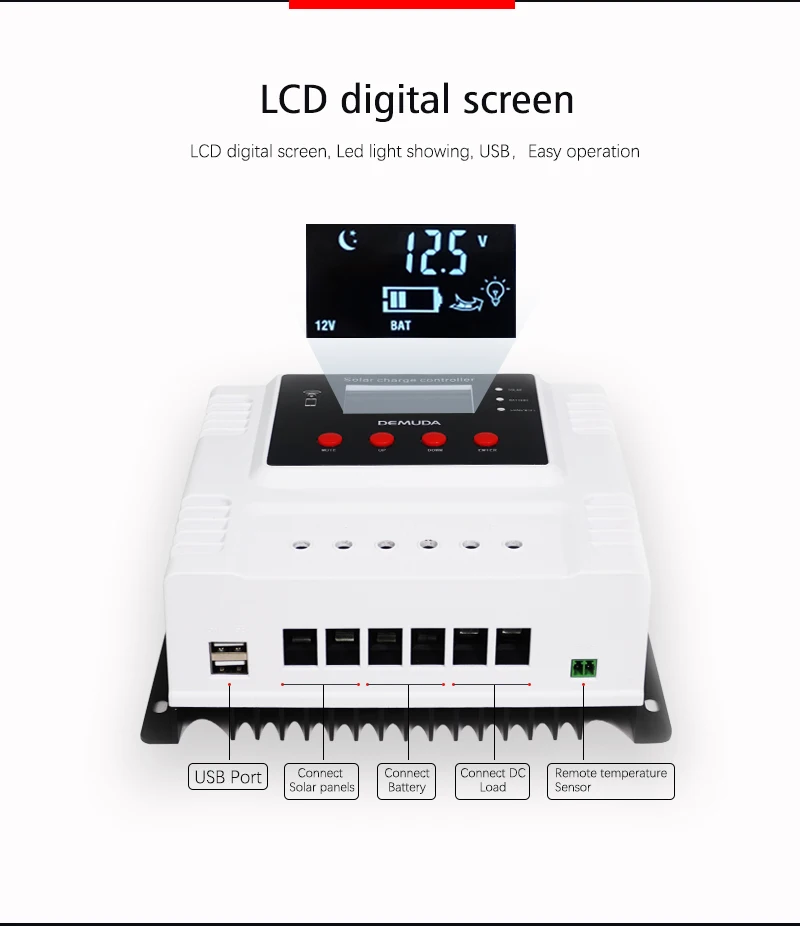

* Industrial-grade main chip, intelligent control, LCD color screen display, multiple parameters can be adjusted, multiple protections are safer.

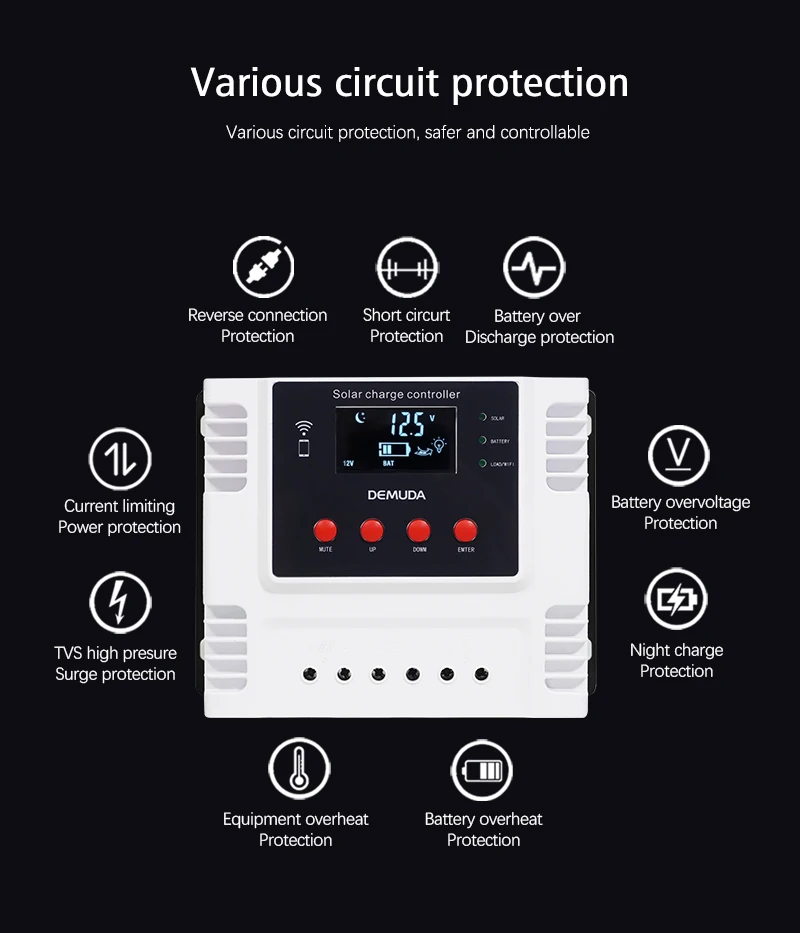

* Multiple circuit protection, built-in near charging protection, short circuit protection, open circuit protection, reverse connection protection and other multiple protections, all of which are self-recovery and do not damage the controller.

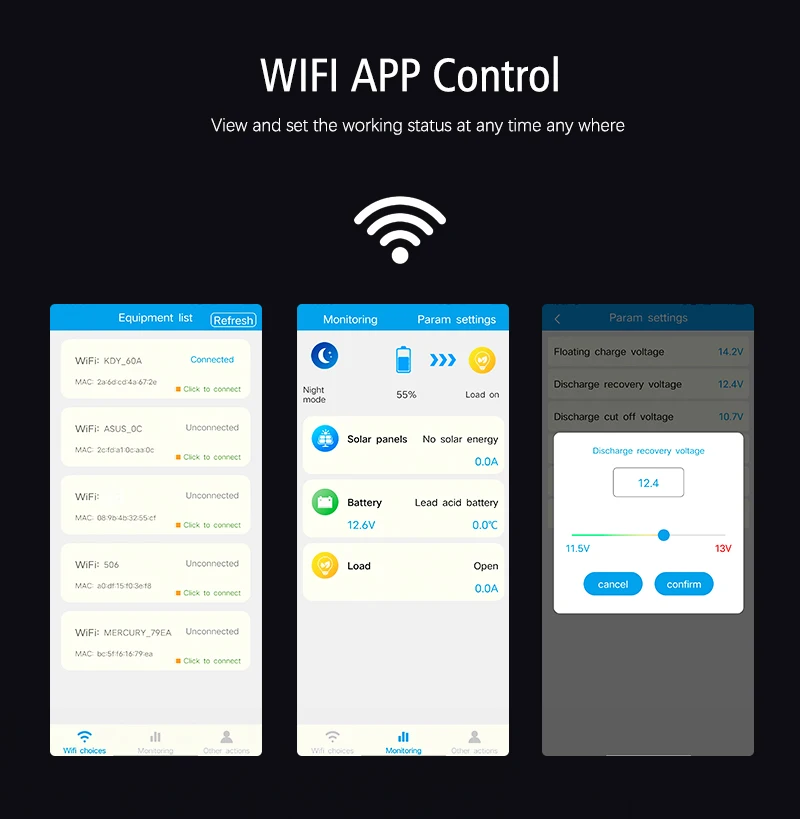

* APP real-time monitoring settings, you can check and set the working status of the machine at any time.

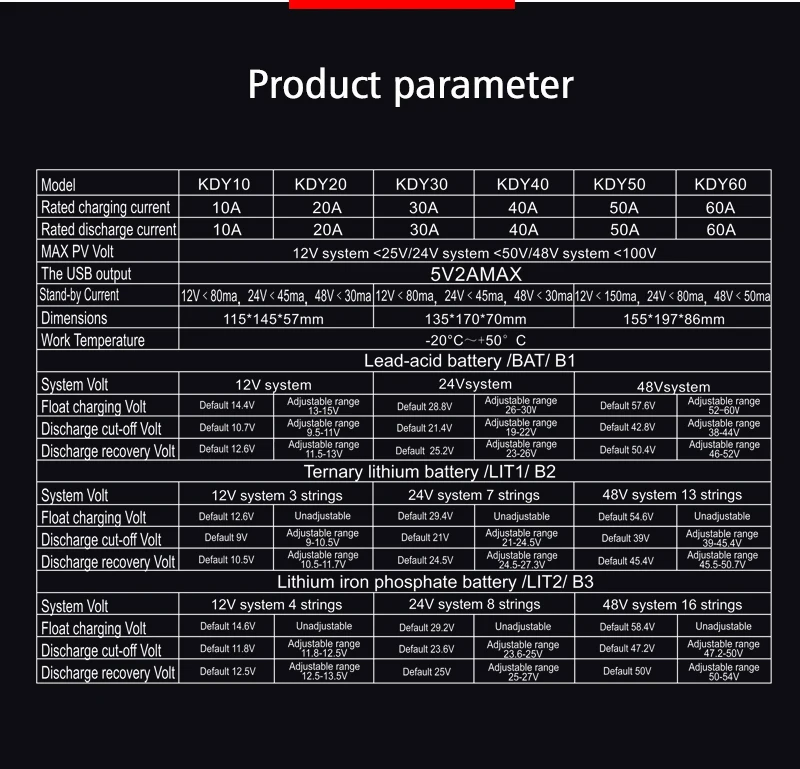

Specification:

Name: Solar Controller
Material: ABS
Rated charging current: 10A,20A,30A,40A,50A,60A
Rated discharging current: 10A,20A,30A,40A,50A,60A
Max PV Volt: 12V system ＜25V/24Vsystem ＜50V/48Vsystem ＜100V
The USB output: 5V/2A Max
Stand-by current: 12V＜150ma, 24V＜80ma,48V＜50ma
Work temperature: -20℃~+50℃

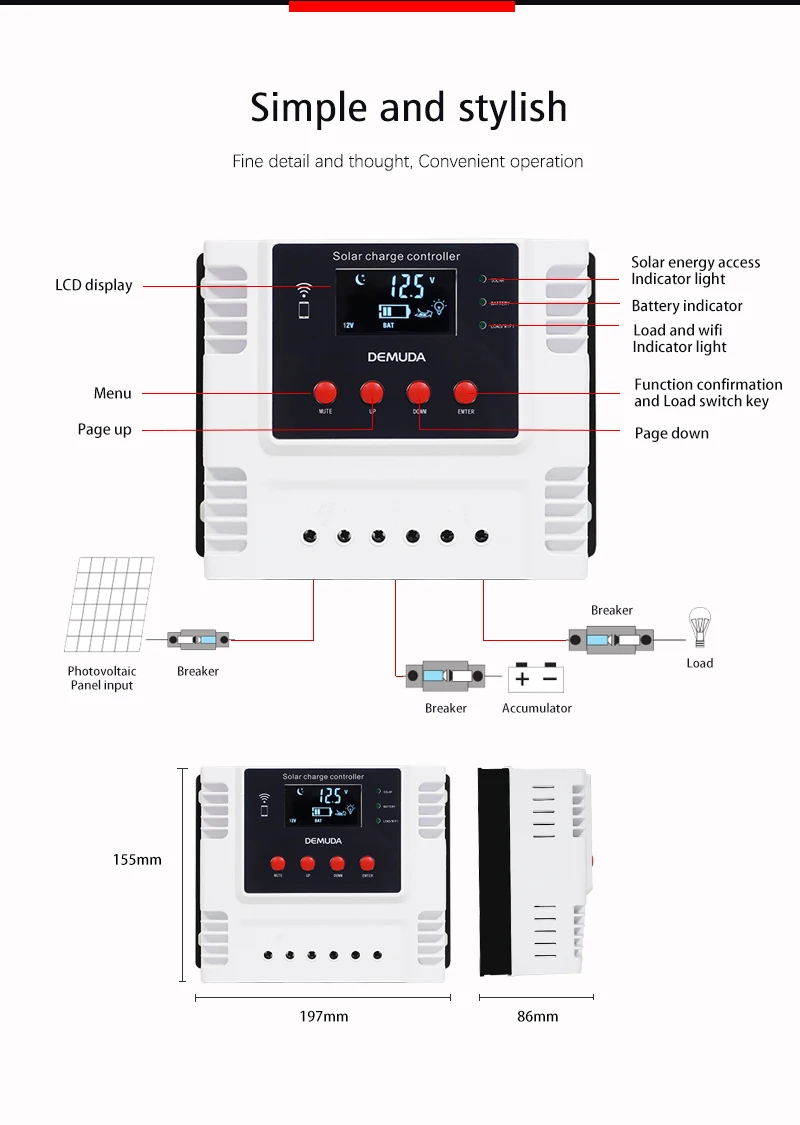

Size: 155 * 197 * 86mm

Lead-acid batteries
System voltage: 48V system
Float voltage: default value 57.6V, adjustable value 52-60V
Discharge cut-off voltage: default value 42.8V, adjustable value 38-44V
Discharge recovery voltage: default value 50.4V, adjustable value 46-52V

Ternary lithium battery
System voltage: 48V system 13 strings
Float voltage: default 54.6V, not adjustable
Discharge cut-off voltage: default value 39V, adjustable value 39-45.4V
Discharge recovery voltage: default value 45.4V, adjustable value 45.5-50.7V

Lithium iron phosphate battery
System voltage: 48V system 16 strings
Float voltage: default 58.4V, not adjustable
Discharge cut-off voltage: default value 47.2V, adjustable value 47.2-50V
Discharge recovery voltage: default value 50V, adjustable value 50-54V
