GPS Beidou Positioning Module GLONASS QZSS BDS IMU Navigation Satellite Position With Antenna for ROS Robot Development Board

[Please read carefully before buying]

Note:

1.Before placing an order, please confirm that each option has corresponding shipping list images. If not, please refer to the following product description. Except for quality issues, our store does not support “free returns”. Please consider carefully before purchasing.

2. If the product involves installation instructions, we will send them through GitHub link or Email. Buyers are requested to contact our customer service directly through the AliExpress chat interface.

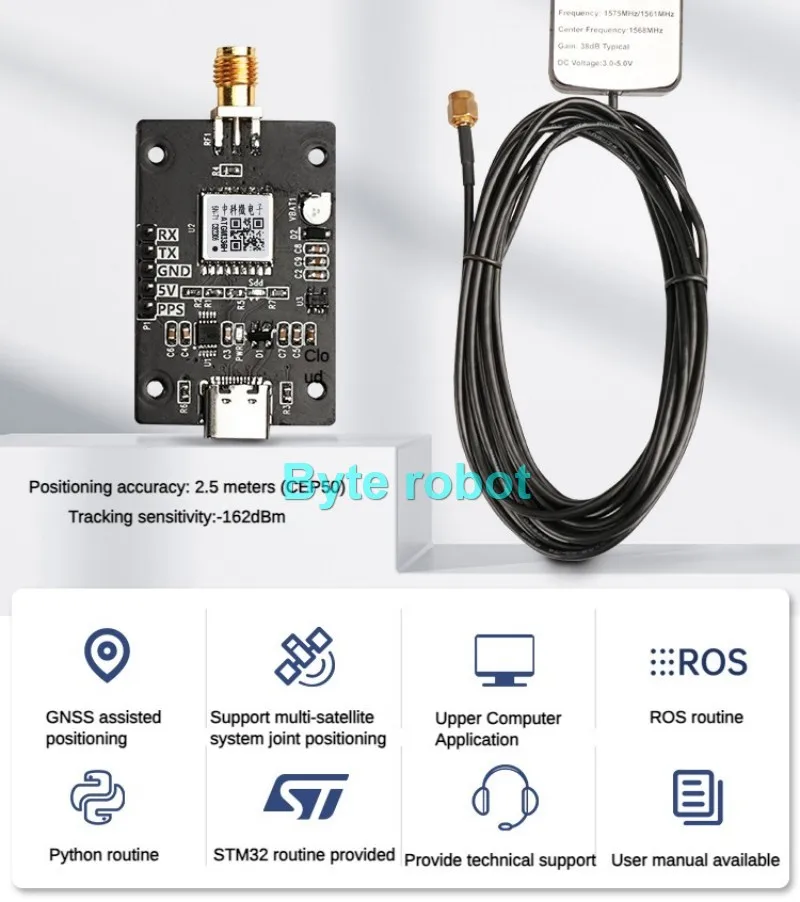

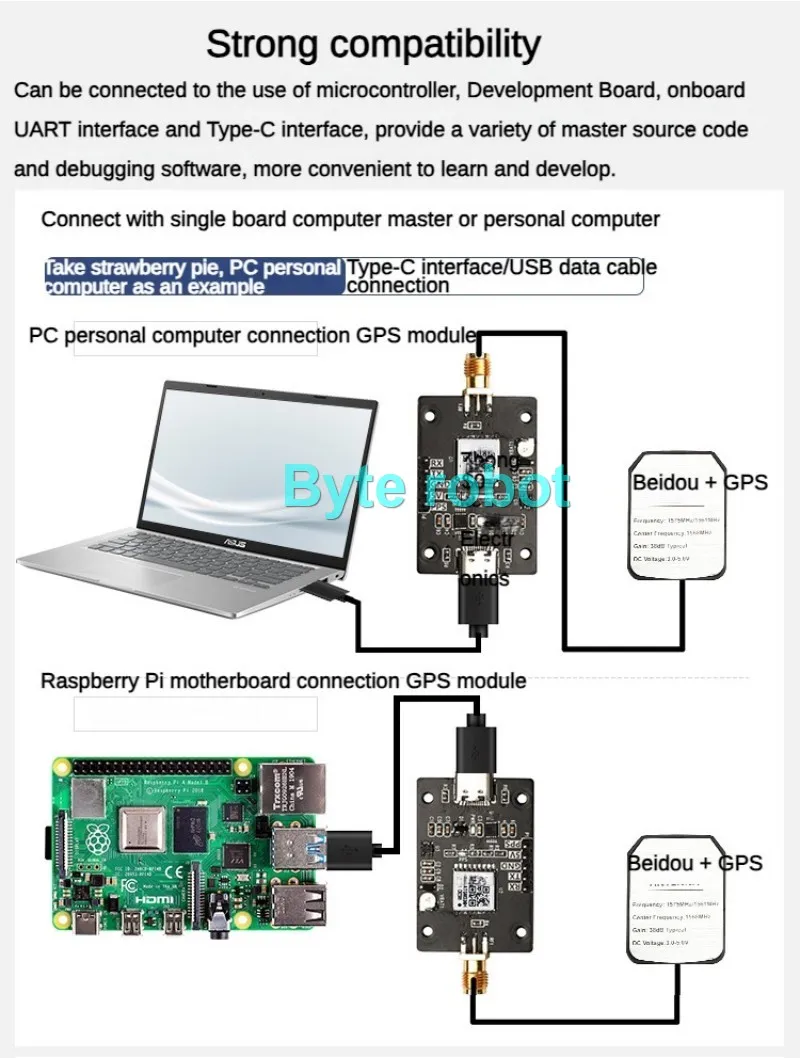

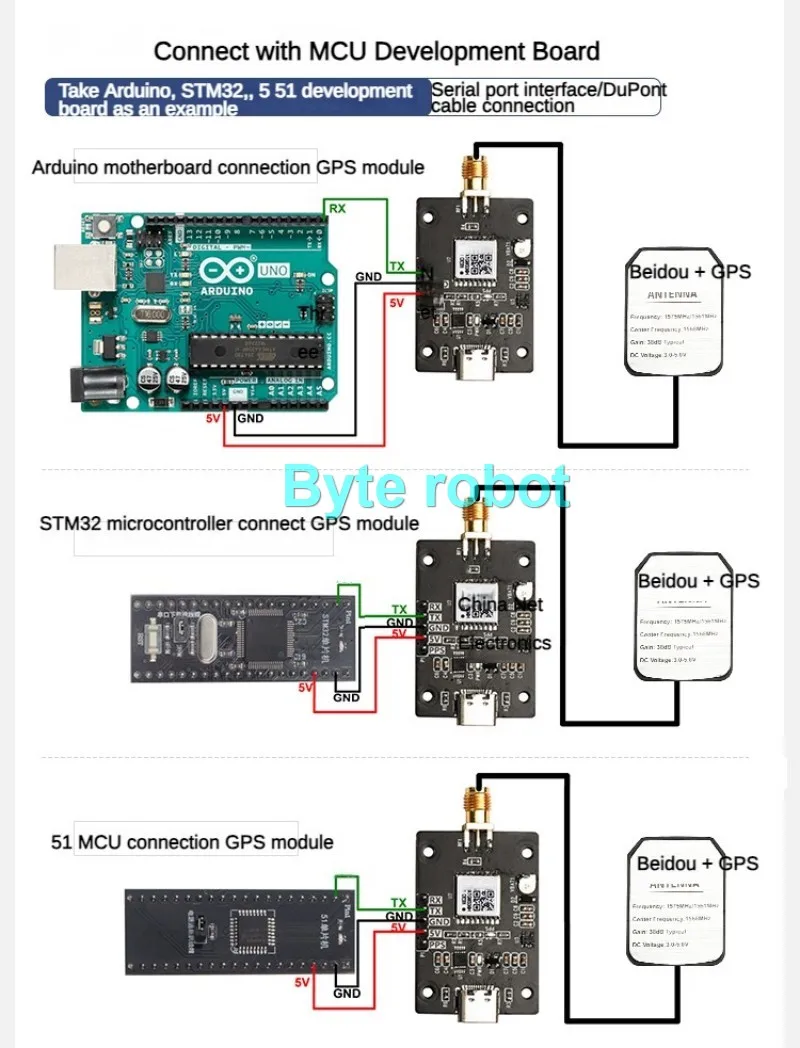

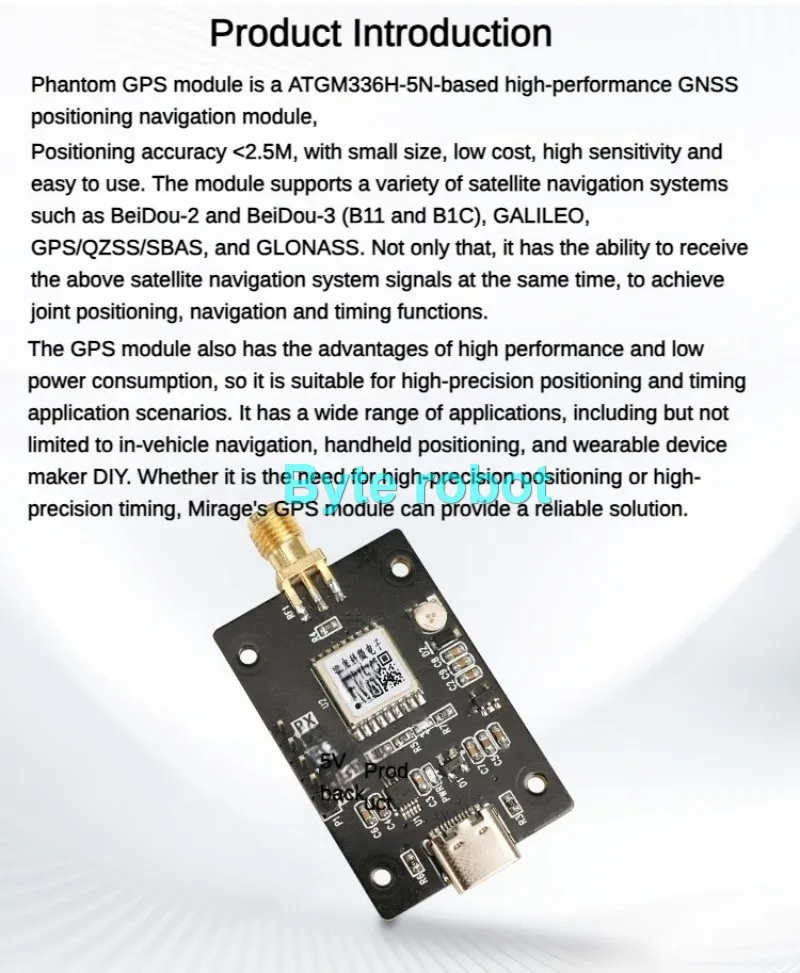

• The GPS module is a high-performance positioning and navigation module based on ATGM336H-5N. It supports BDS system in China, GPS in UAS, GLONASS in Russia, and QZSS in Japan. It can simultaneously receive the signals of the above satellite navigation systems and realize joint positioning. It has a π-type antenna circuit, the impedance matching is 50Ω, the antenna standing wave ratio is lower than 1.6, the search signal ability is strong, and the positioning is more accurate. On-board Type-C and USB can be connected to common development boards such as computer, Raspberry Pi, Jetson, etc. Yahboom will provide ROS-related tutorials and source codes for users.

Features:

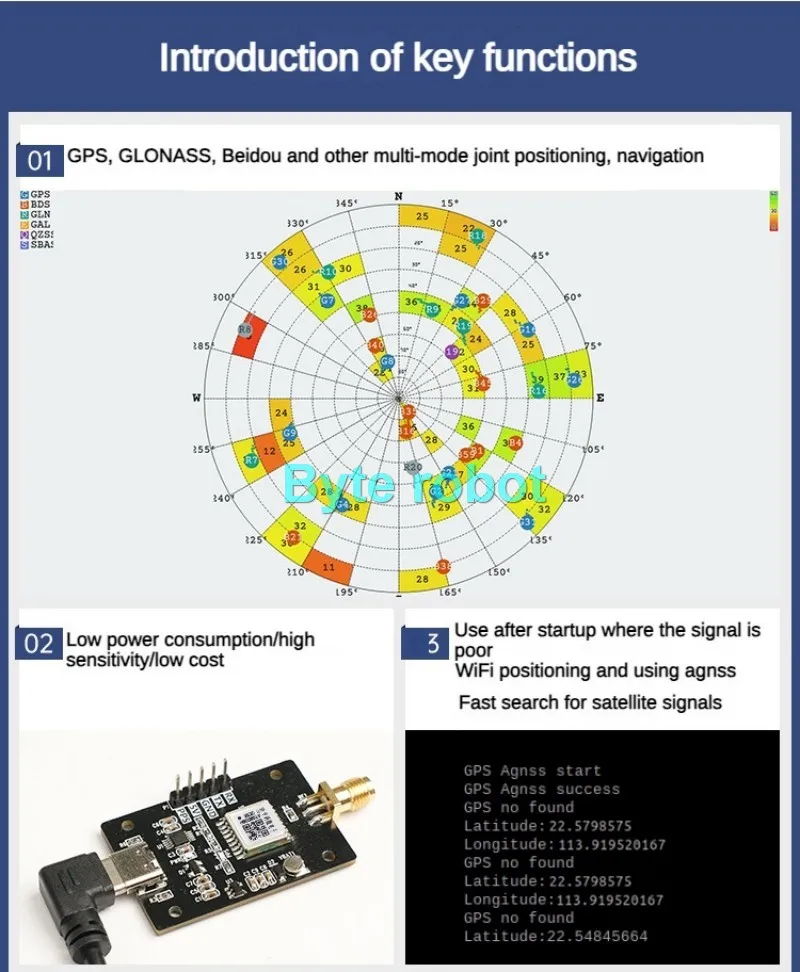

• Support four satellite systems(BDS, GPS, GLONASS, QZSS).

• π-type antenna circuit, impedance matching is 50Ω, and the antenna standing wave ratio is lower than 1.6.

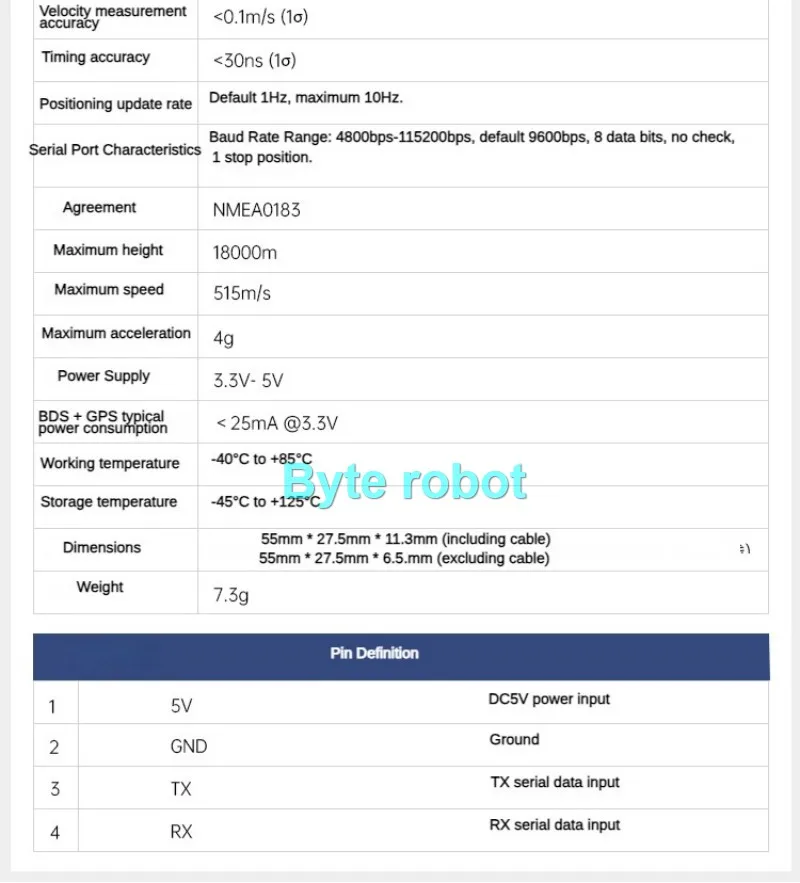

• Positioning accuracy: 2.5 meters (CEP50), tracking sensitivity: -162dBm.

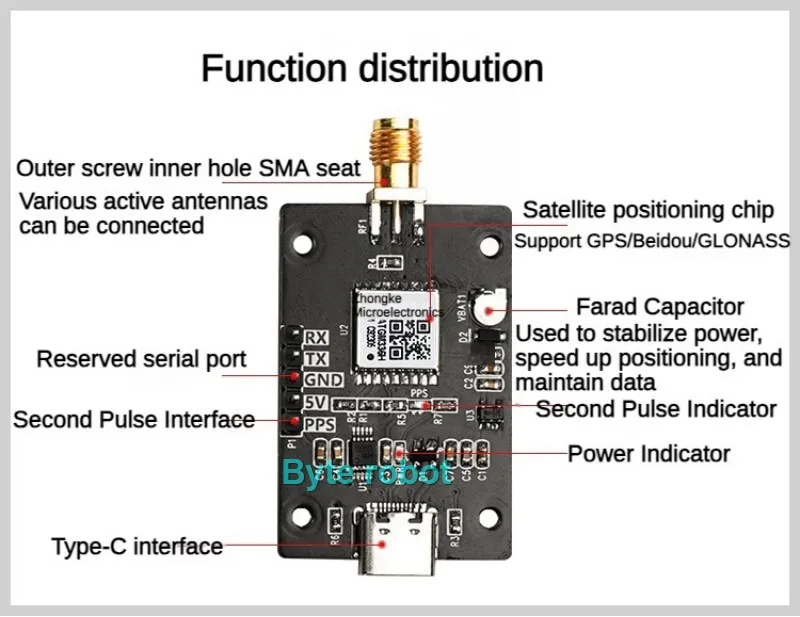

• On-board Type-C and USB interface.

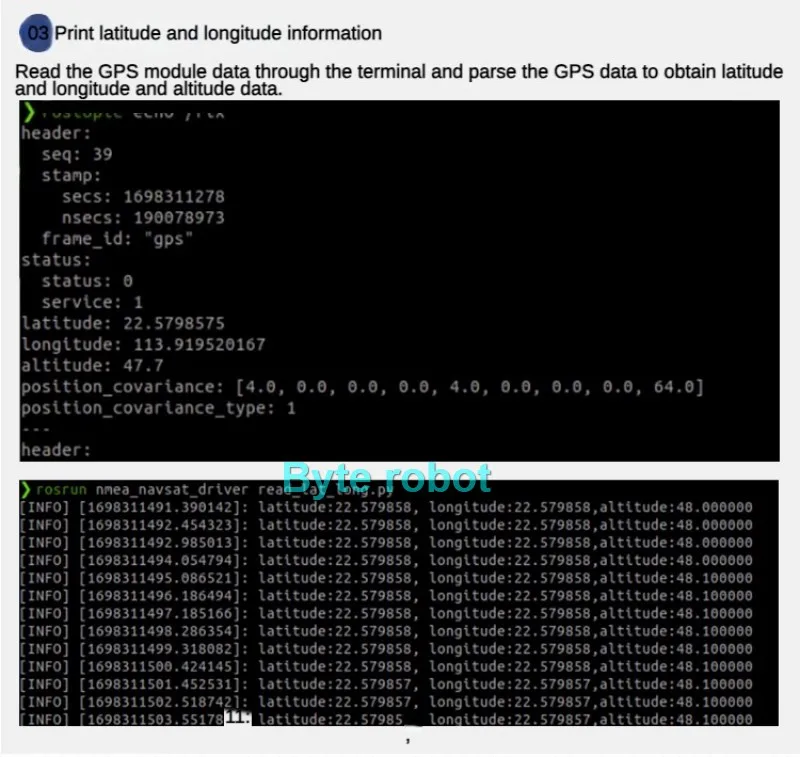

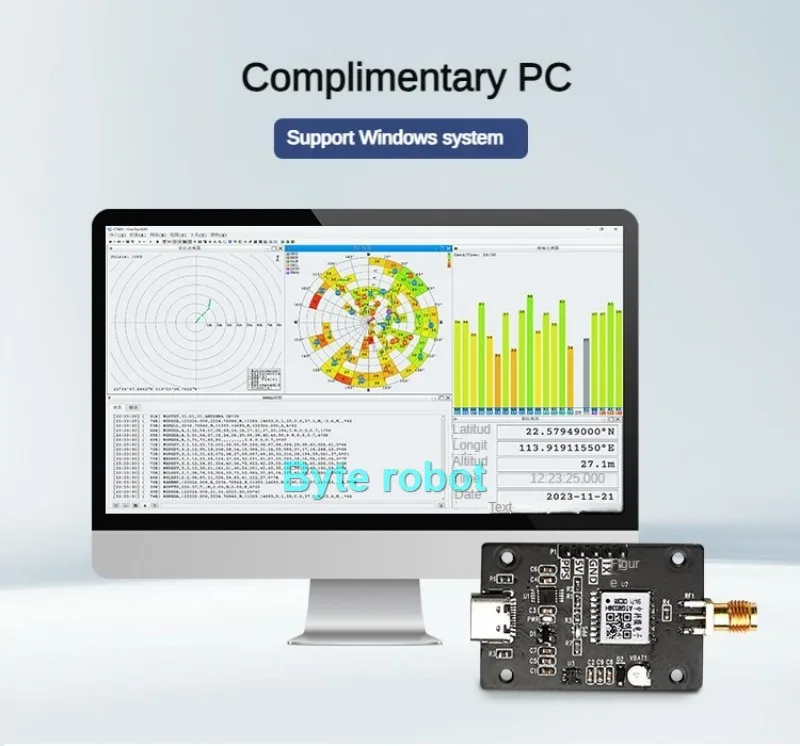

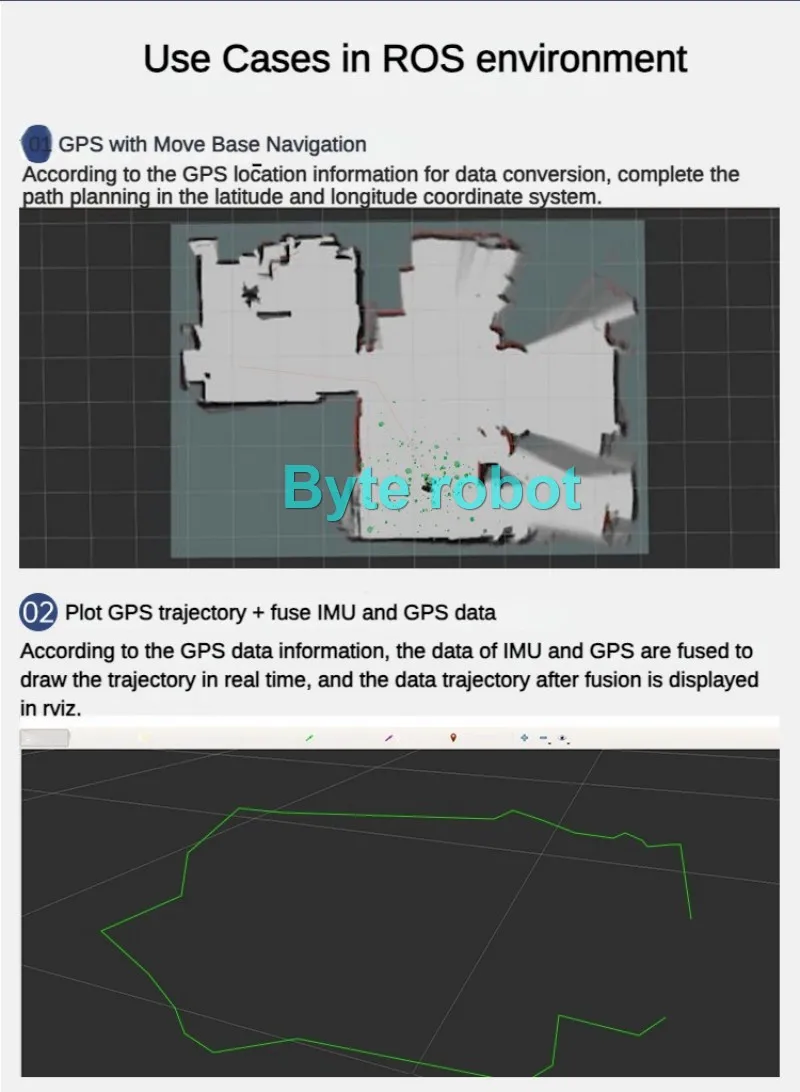

• ROS-related tutorial materials and debugging software will be provide for free.

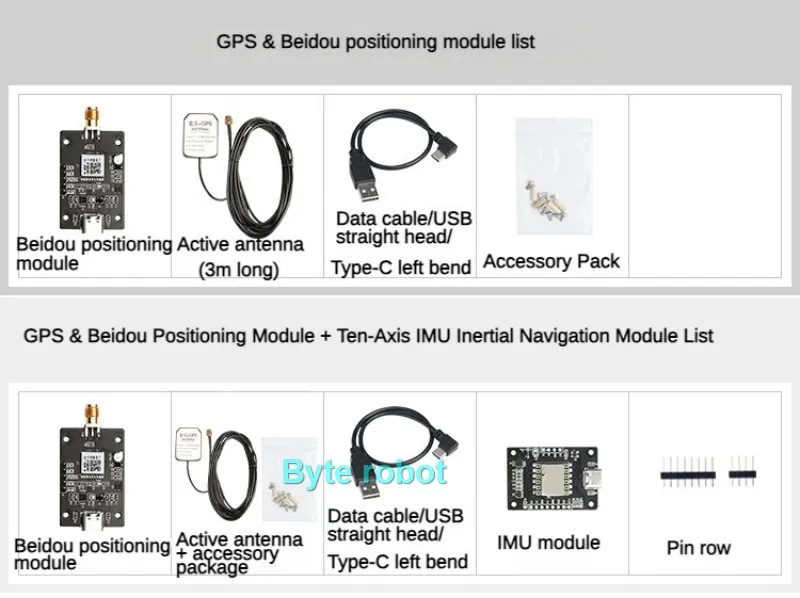

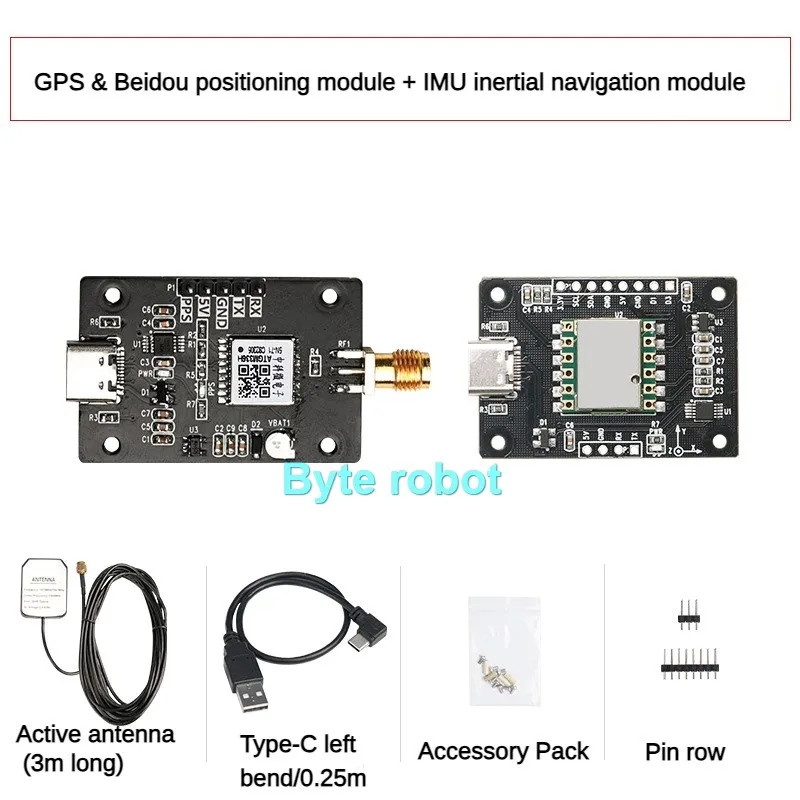

Shipping list:

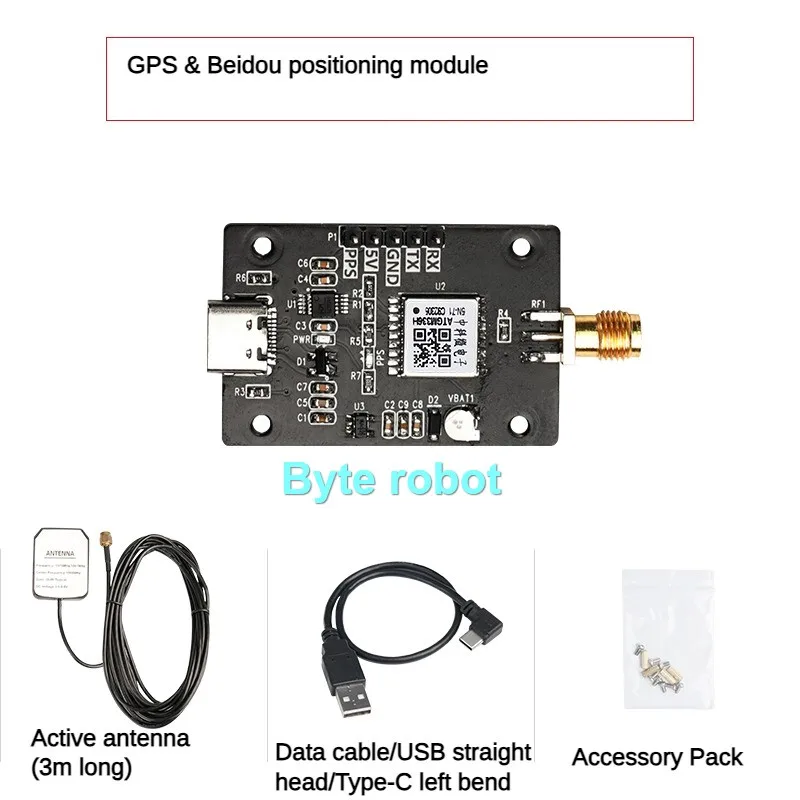

• GPS Module: Only GPS Module

Note:

1. The product has been installed, Need information to contact customer service, leave an accurate available email address!

2. Technical documentation can be provided to you free of charge, please contact us.
