PowMr 10.2KW Hybrid Solar Inverter 48V 230V On Grid Off Grid Pure Sine Wave Inverter MPPT 160A Solar Battery Charger
Notice:
For European Union customers, You can select shipping from China, We will ship from EU warehouse if it is in EU stock. You don’t pay extra money. The estimated delivery is 3-7 days. Please contact us to confirm whether the EU warehouse is available before placing a order. Thanks for your understanding
Feature:
* Pure sine wave solar inverter（on Grid & off Grid）
* Dual MPPT, Dual output
* High PV input voltage range(90~500VDC)
* WIFI&GPRS available for IOS and Android
* Built-in MPPT 160A solar charger
* Built-in Lithium battery automatic activation
* Compatible to mains voltage or generator power
* Output power factor 1.0
* Built-in anti-dust kit for harsh environment
* Smart battery charge design to optimize battery life
* One-click restoration to factory Settings
* Touch buttom
* Auto restart while AC is recovering
* Overload/ Over temperature/ short circuit protection
* Cold start function
|
MODEL |
8.2KW |
10.2KW |
|
Output Voltage Waveform |
Pure Sine Wave |
|
|
Output Voltage Regulation |
230Vac±5% |
|
|
Output Frequency |
50Hz |
|
|
Peak Efficiency |
93% |
|
|
Nominal DC Input Voltage |
48Vdc |
|
|
High DC Recovery Voltage |
62Vdc |
|
|
High DC Cut-off Voltage |
63Vdc |
|
|
No Load Power Consumption |
70W |
75W |
|
Two Load Output Power |
||
|
Full Load |
8200W |
10200W |
|
Maximum Main Load |
8200W |
10200W |
|
Maximum Second Load(battery model) |
2733W |
3400W |
|
Main Load Cut Off Voltage |
44VDC |
|
|
Main Load Return Voltage |
48VDC |
|
|
Utility Charging Mode |
||
|
AC Charging Current(Max) |
140Amp |
160Amp |
|
Floating Charging Voltage |
54Vdc |
|
|
MPPT Solar Charging Mode |
||
|
Max.PV Array Power |
8200W |
10200W |
|
Nominal PV Voltage |
360Vdc |
|
|
PV Array MPPT Voltage Range |
90Vdc~450Vdc |
|
|
Max.PV Array Open Circuit Voltage |
500Vdc |
|
|
Max Charging Current |
160Amp |
160Amp |
|
Grid-Tie Operation |
||
|
Nominal Output Voltage |
220/230/240VAC |
|
|
Feed-in Grid Voltage Range |
195~253VAC |
|
|
Feed-in Grid Frequency Range |
49~51±1Hz/59~61±1Hz |
|
|
Nominal Output Current |
35.6A |
44.3A |
|
Power Factor Range |
>0.99 |
|
|
Maximum Conversion Efficiency |
98% |
|
|
General Specifications |
||
|
Safety Certification |
CE |
|
|
Operating Temperature Range |
-10℃ to 50℃ |
|
|
Storage temperature |
-15C~60℃ |
|
|
Humidity |
5%to 95% Relative Humidity(Non-condensing) |
|
|
Dimension(D*W*H),mm |
537*390*130 |
|
|
Net Weight,kg |
14.2 |
14.5 |
【Solar Hybrid Inverter】10.2KW Off-Grid 48V Solar Inverter Built-in 160A MPPT Charge Controller, Pure Sine Wave Inverter Single-phase output 230VAC, 10.2kw new all-in-one inverter combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in a single package.
【One Click Restore Default Settings】10.2KW All in One MPPT inverter can restore the system settings by one key in case of setting error, avoiding the machine damage caused by setting error. with battery cold start function(46V) ,and automatic restart while AC is recovering to well protect your system.
【RGB Light Mode】PowMr Hybrid Inverter LOGO Can Display Four Different colors of RGB light, Stationary Mode: white light, PV Mode: purple light, Battery Mode: Red light, Utility Mode: blue light. You can know the working mode of the inverter by the colors of logo light.

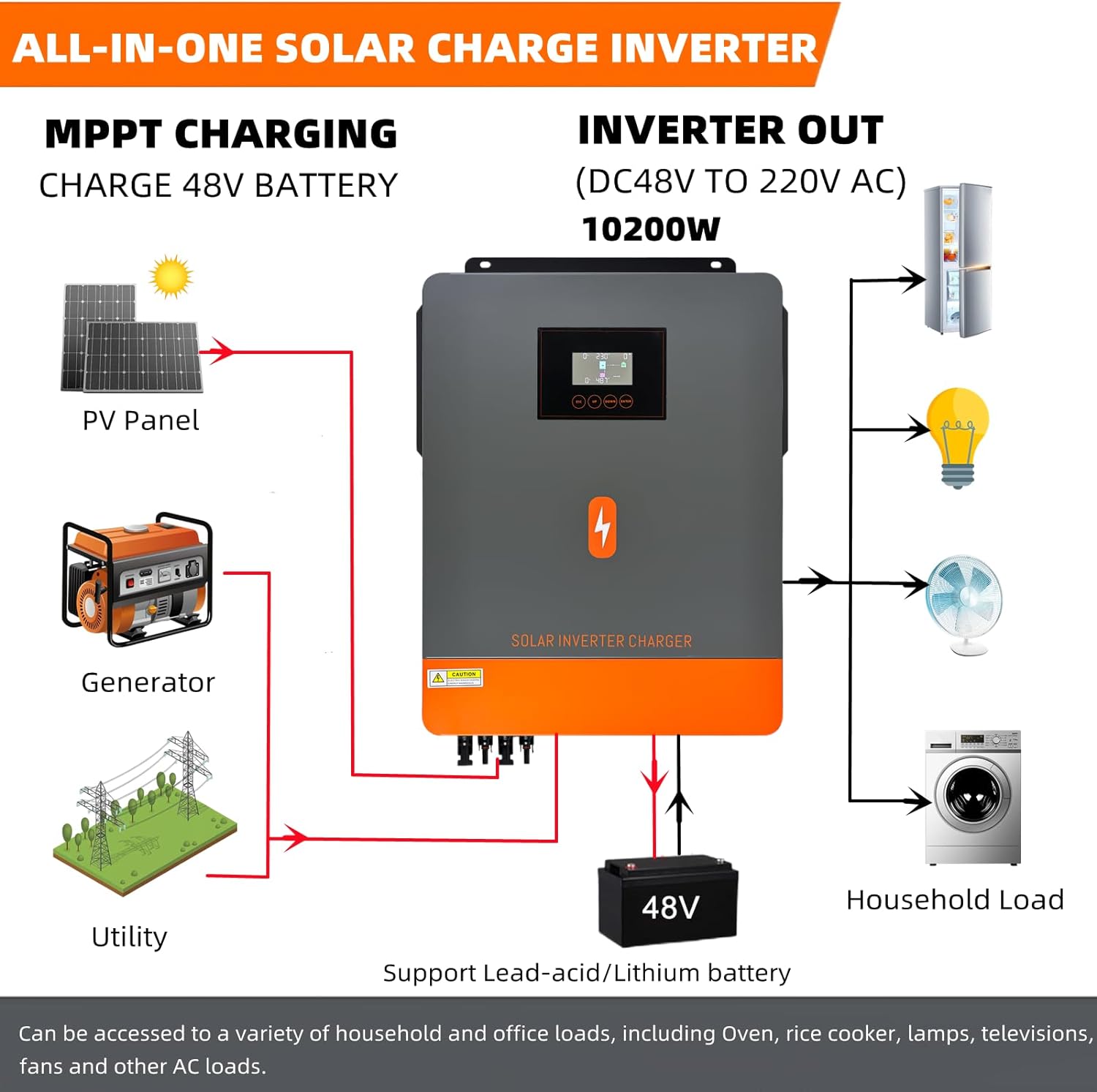

【Diverse Uses】48V Inverter with Smart battery charger design for optimized battery performance; Compatible with mains voltage or generator power; Can be accessed to a variety of household and office loads, including refrigerators, lamps, televisions, fans, air conditioning and other loads. 4 charging modes support: Utility first, Solar first,Solar&Utility and Battery & Solar.
【Technical Parameter】160A MPPT Solar Charging Inverter, MAX. PV Array Power: 10200W, Max.PV Open Circuit Voltage: 500Vdc; Starting voltage >150V, MAX. Charging Current:160A, PV Array MPPT Voltage Range: 90~450Vdc; Cold start function(46V).
