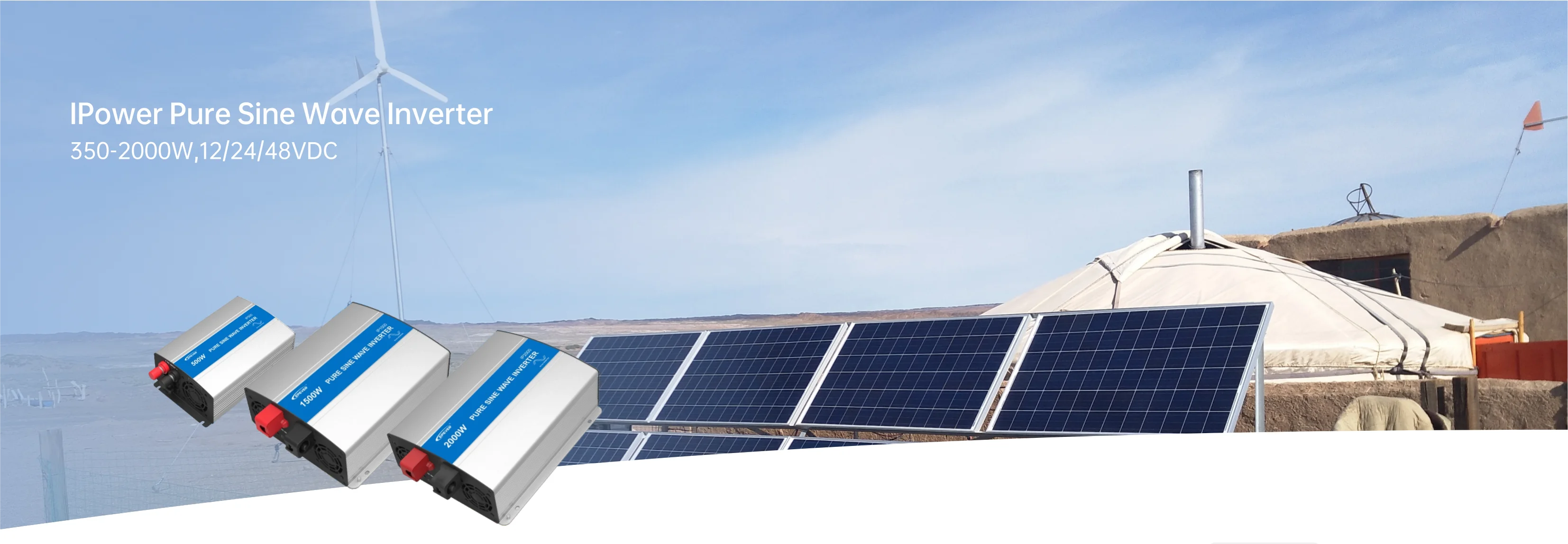

EPEVER IPower series Pure Sine Wave Inverter DC 12V/24V to AC 220V/230V 500W 50Hz/60Hz IP500
Overview:
IPower series is a pure sine wave inverter which can convert 12/24/48VDC to 220/230VAC (or 110/120VAC). Industrial design, compared with the civil design, has a wider operating temperature, easy installation and operation. The wide input voltage range is ideal for solar system application. The inverter can be applied in many fields, such as household emergency lighting system, vehicle mounted system and small field power supply etc.

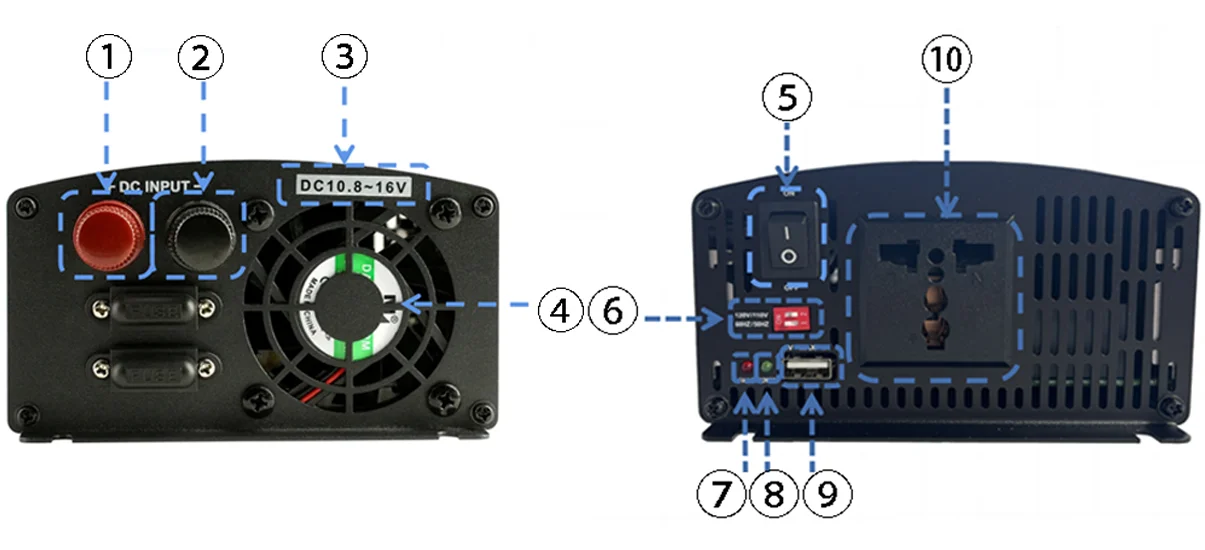

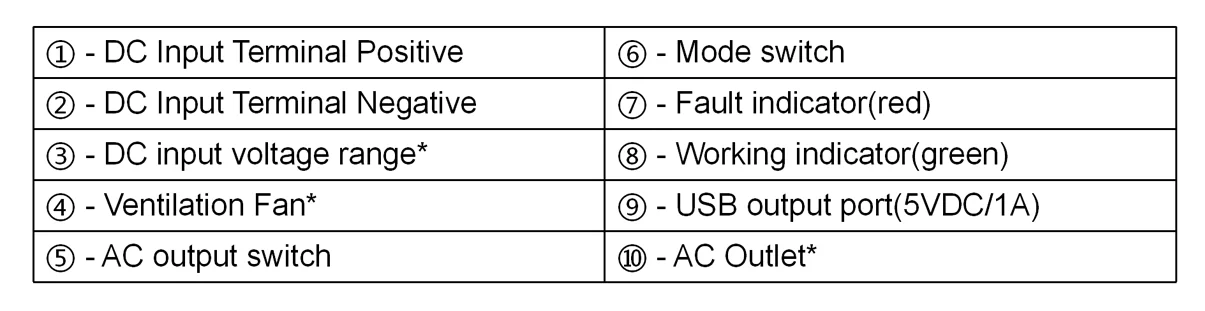

Features:
-
Safe design with input and output electrical isolation
-
Adoption of advanced SPWM technology, pure sine wave output
-
Optional output voltage 220/230VAC(or 110/120VAC), set by DIP switch
-
Output frequency 50/60Hz, set by DIP switch
-

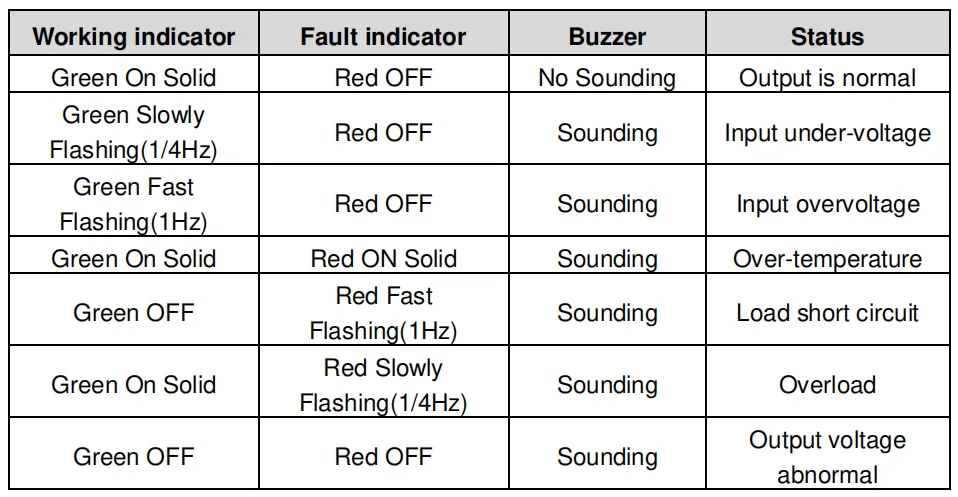

LED indicators for working and fault status
-
Lower No-load consumption
-
Max. efficiency up to 95%
-
Input protection: Over voltage protection, low voltage protection
-
Output protection: Overload protection, short circuit protection
-
Over temperature protection: Temperature-controlled Fan Ventilation; Inverter turns off automatically when over temperature.
-
Operational USB output 5VDC/1A
Functions:
(1) Input rated voltage
-
12V system input voltage range is 10.8~16V;
-
24V system input voltage range is 21.6~32V;
-
When the heat sink temperature is higher than 50℃ or the internal temperature is higher than 50℃, the fan will turn on automatically.
-
When the heat sink temperature is lower than 40℃, and the internal temperature is lower than 40℃, the fan will turn off automatically.


-

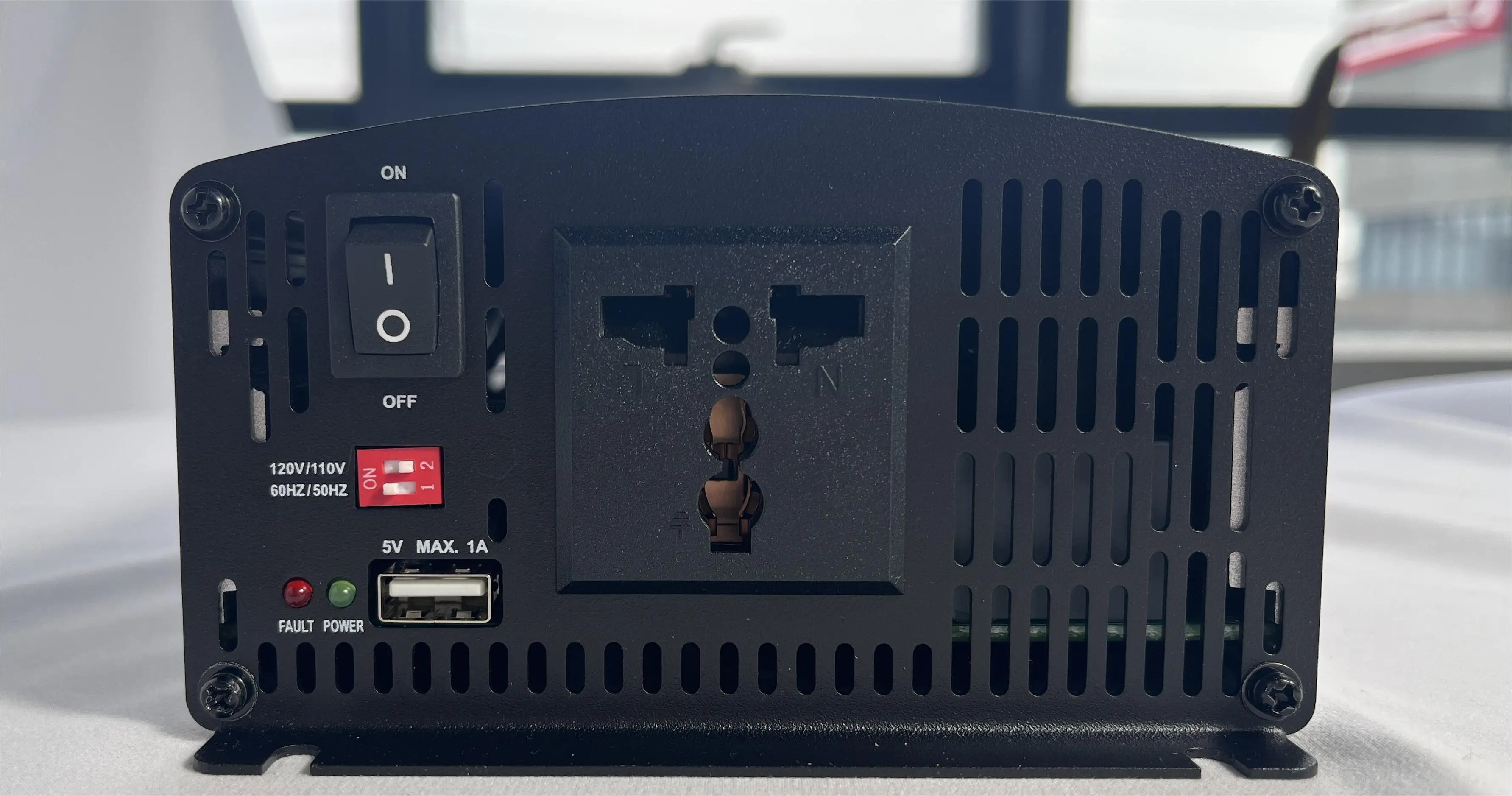

When switch No.1 is on the ON side, the output frequency is 60Hz. Otherwise, it is 50Hz.
-
When switch No.2 is on the ON side, the output voltage is 230VAC. Otherwise, it is 220VAC.

Technical Specifivation:
Item |
IP500-12 |
IP500-22 |
Rated Input Voltage |
12VDC |
24VDC |
Input Voltage Range |
10.8~16VDC |
21.6~32VDC |
Input Surge Voltage |
<32VDC |
<44VDC |
Output Voltage |
220VAC(±5%) |
|
Output Frequency |
50/60±0.1Hz |
|
Output Continuous Power |
400W |
|
Output Power 15min. |
500W |
|
Surge power |
1000W |
|
Power factor |
0.2-1(VA lower than output continuous power) |
|
Output Wave |
Pure Sine Wave |
|
Distortion THD |
THD≤3% |
|
Max. Efficiency |
92% |
|
No-load Current |
<0.9A |
<0.5A |
USB Output Port |
5VDC/Max.1A |
|
Binding Post |
φ6mm |
|
Dimension |
232.2 x 132 x 74.5mm |
|
Mounting size |
205 x 102mm |
|
Mounting hole size |
φ5.2mm |
|
Net weight |
1.7kg |
|
Operating temperature range |
-20℃~+45℃ |
|
Relative humidity |
≤95%(N.C.) |
|
Enclosure |
IP20 |
