EPEVER 12V24V MPPT Solar Charge Controller 10A 20A 30A TracerAN Series Regulator With MT50 Remote Meter Data Monitoring

EPEVER Tracer-AN Series MPPT Solar Charge Controller 10A20A30A 12/24VDC Solar Panel Charger Regulator With MT50 Remoter Meter

Overview:

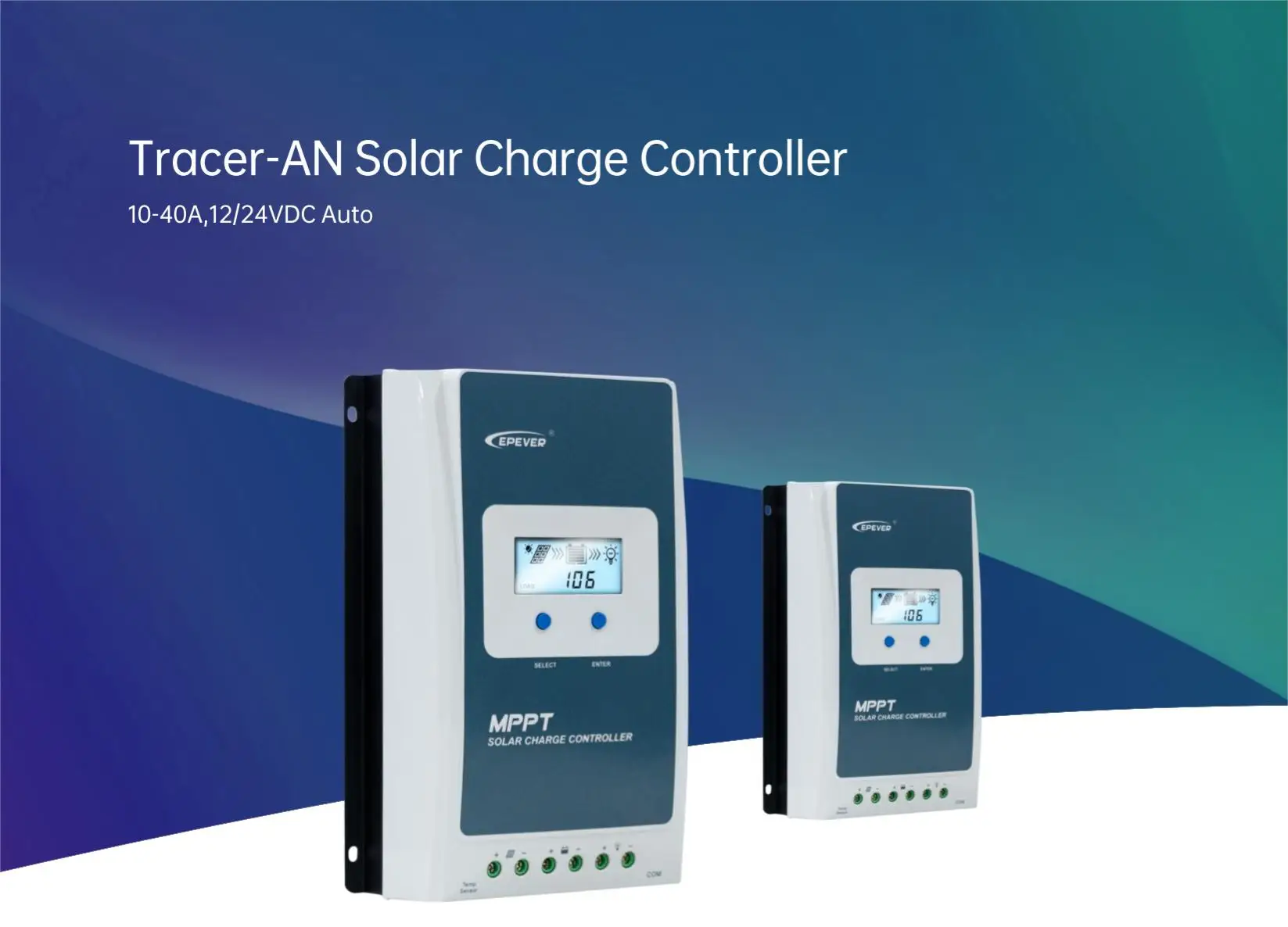

Tracer-AN (10A-40A) series charge controller adopts MPPT (Maximum Power Point Tracking) technology. In any situation, it can track the maximum power point (MPP) of the solar array and obtain the maximum solar energy rapidly and accurately. It can generate up to 30% more power compared with the PWM charge controller. This series can accept max.100V Voc and work with the solar panels which are designed for on-grid applications. The multifunction LCD display the system status vivdly.

Features:

• MPPT tracking efficiency above 99.5%

• Maximum charge conversion efficiency as high as 98%

• Support lead-acid and lithium-ion batteries

• Multiple load work modes

• Charging power and current limitation function

• High-temperature charging power derating function

• Standard Modbus communication protocol with RS485 interface

• Real-time energy statistics function

Steps: Connect solar system in this order: 1.battery–> 2. load–> 3.PV array, and disconnect solar system in the reverse order >3. >2. >1.

• Battery must be connected first! Never connect soalr panel array to controller Without/Before connect battery.

• DO NOTconnect any inverter/wind/Alternator or Charger into the charge controller directly ! Youshouldconnect with battery and add fuse.

• If there is a long distance between the PV array and controller or between the controller and battery, larger size wires should be used to reduce the voltage drop and improve performance. (Recommended wire size is only for reference.)

Electronic Protections:

• Battery Protection:Lithium Battery Low Temperature protection ,Battery Over Discharge protection,Battery Over Voltage protection

• Load Protection:Load Overload protection, Load Short Circuit protection Controller Overheating protection, TVS High Voltage Transients protection

• PV Protection:PV Over Current/power Protection, PV Short Circuit protection, PV Reverse Polarity protection, Night Reverse Charging proection

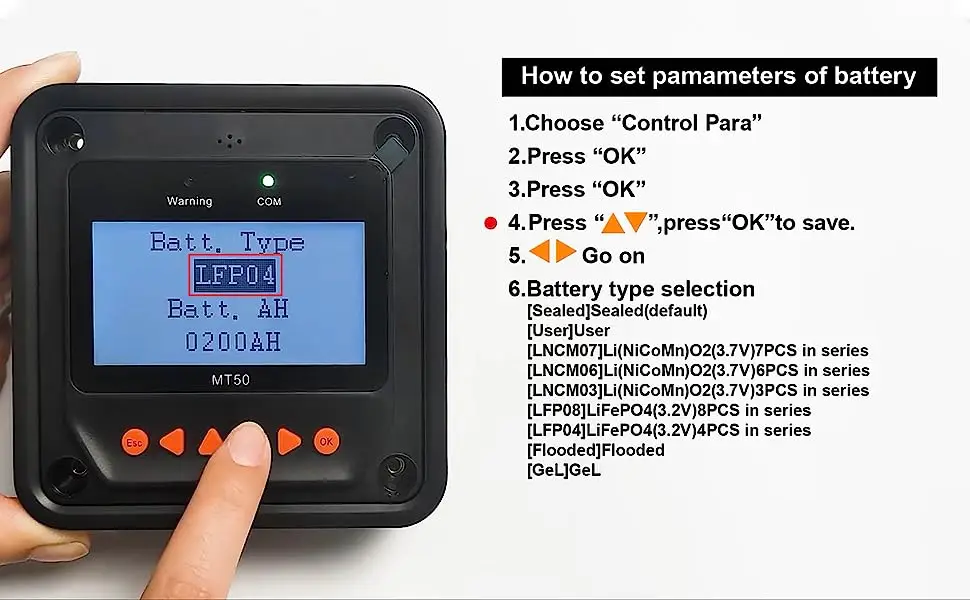

How to program for Lithium Battery？

• Via Remote Meter (Accessories needed: MT50)

• Via PC Software (Accessories needed RS485 cable :CC-USB-RS485-150U )

• Via Phone APP [ Android or IOS], (Accessories needed：WIFI or BLE)

EPEVER MT50 Remote Meter

Overview:

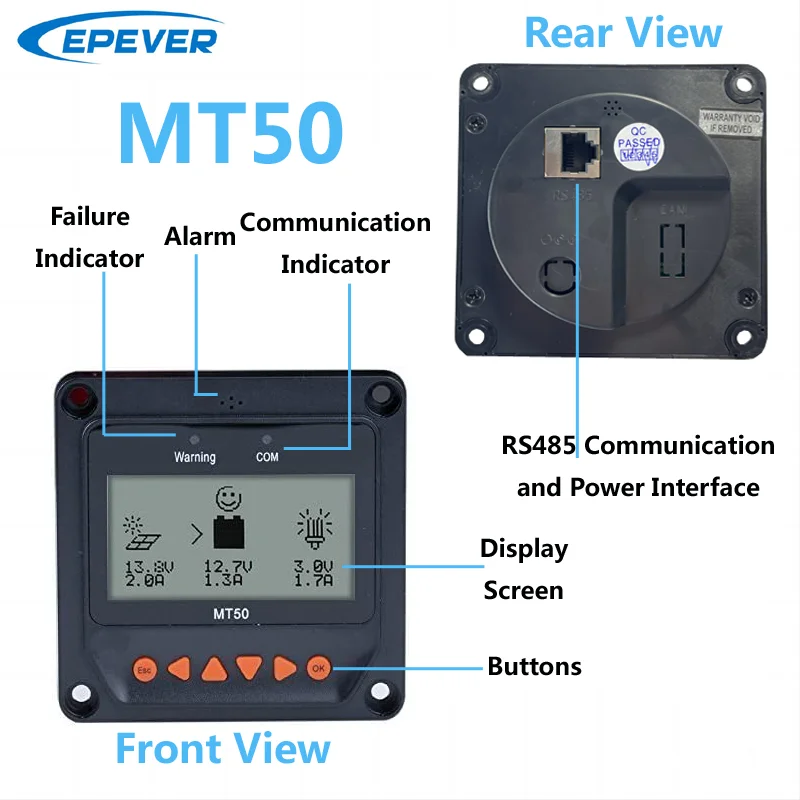

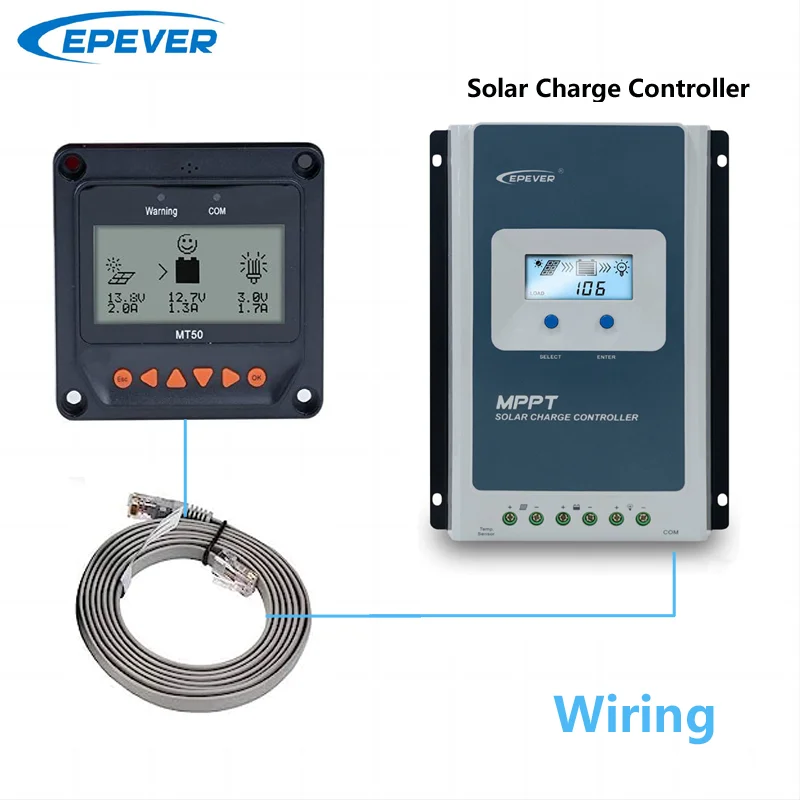

MT50 is a new generation of remote meters designed based on the latest controller communication protocol and voltage technical standards. The MT50 remote meter, using the controllers equipped with RJ45 port, can monitor the controller’s real-time working status and program the parameters.

Features:

• For Tracer-AN/BN/BP, TRIRON-N, XTRA-N, LS-B, VS-BN, iTracer, eTracer

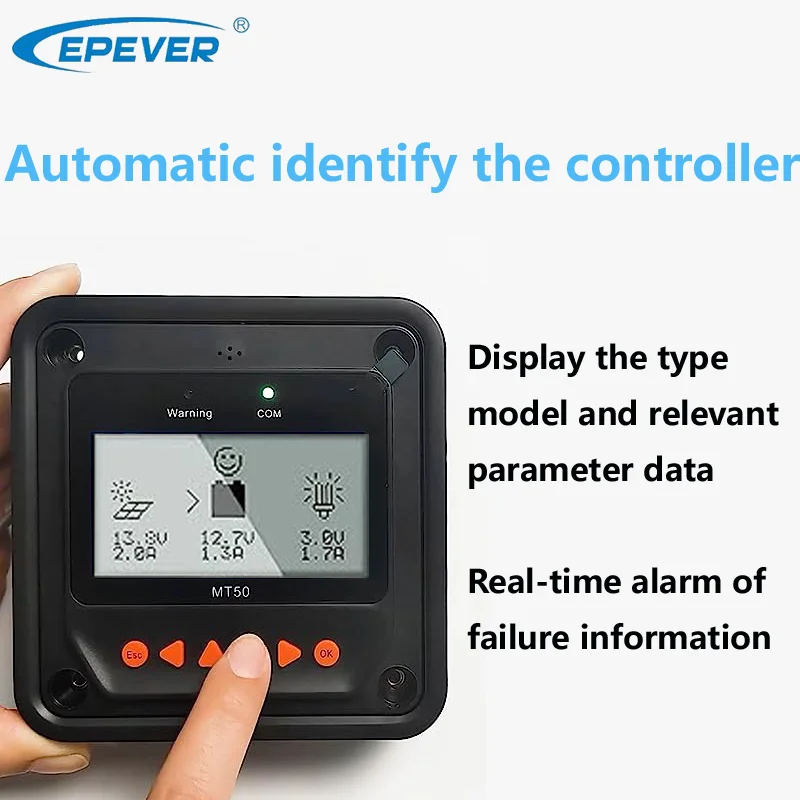

• Automatic identify and diaplay the type, model and relevant parameter data of controllers

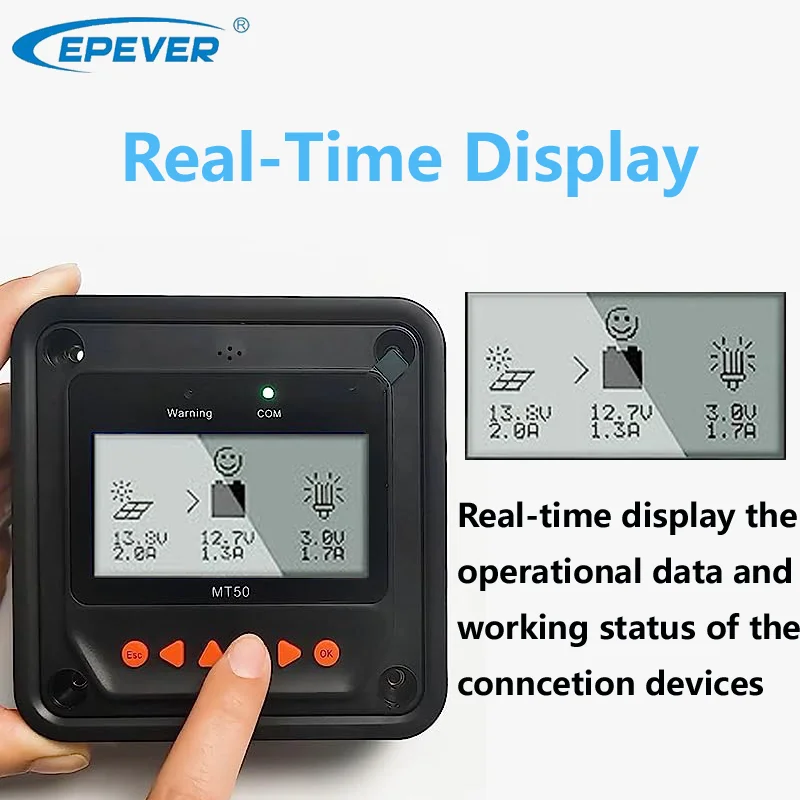

• Real-time display the operational data and working status of the connection devices in digital, graphic and textual forms by a large-screen multifunction LCD

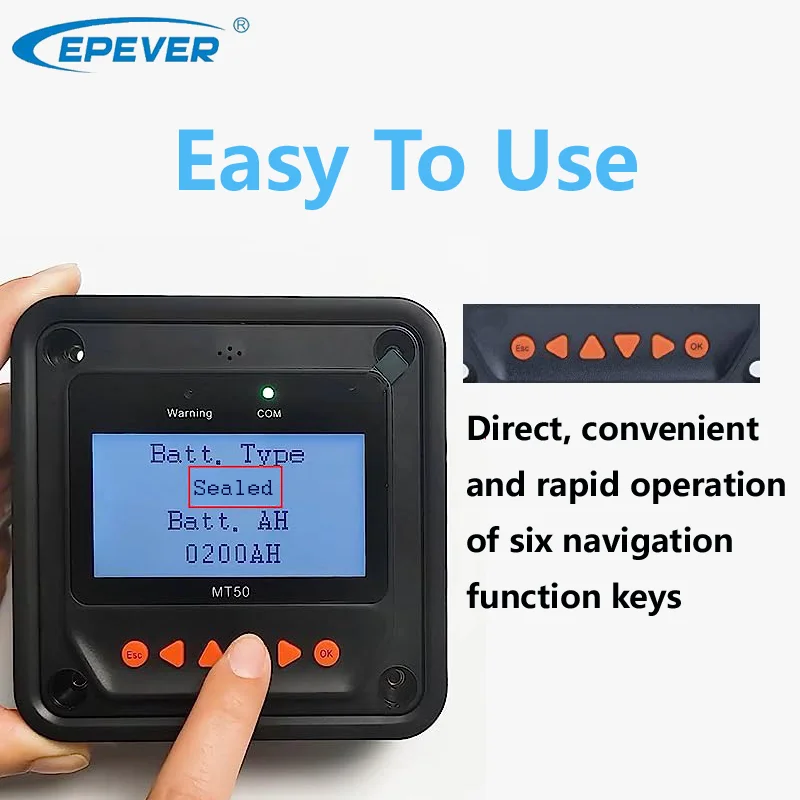

• Direct, convenient and rapid operation of six nevigation function keys

• Both data and power flowing in the same lead, no need for external power

• Real-time data monitoring and remote load switchover of the controllers, and data browse and  modification of device parameters, charge control parameters and load control parameters

• Real-time display and acoustic alarm of failure information of the connection devices

• Longer communication distance based on RS485

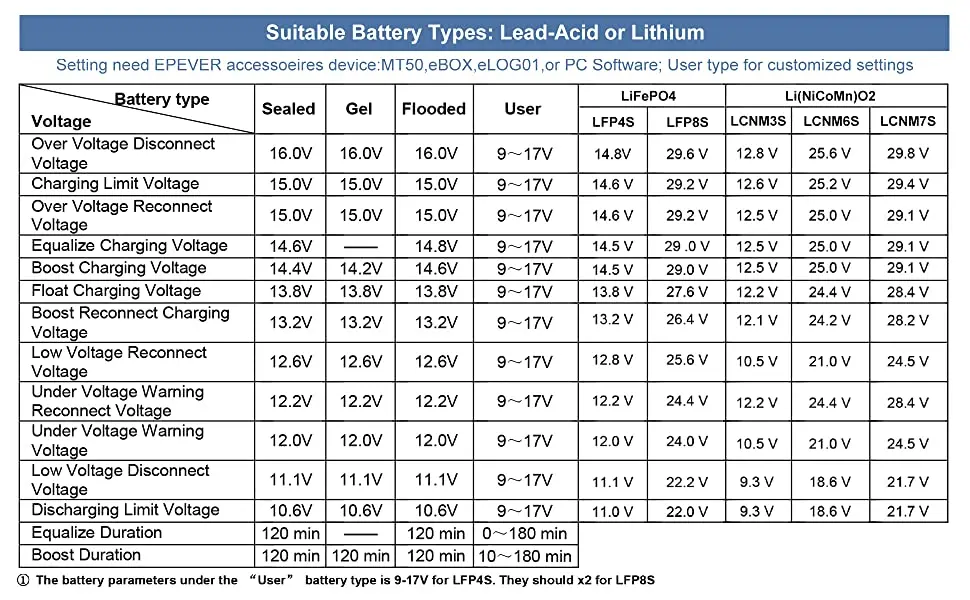

When the battery type is “USE,” the Lithium battery voltage parameters follow the following logic:

• Over Voltage Disconnect Voltage>Over Charging Protection Voltage(Protection Circuit Modules(BMS))+0.2V;

• Over Voltage Disconnect Voltage>Over Voltage Reconnect Voltage=Charging Limit Voltage ≥Equalize Charging Voltage=Boost Charging Voltage ≥ Float Charging Voltage>Boost Reconnect Charging Voltage:

• Low Voltage Reconnect Voltage > Low Voltage Disconnect Voltage ≥Discharging Limit Voltage.

• Under Voltage Warning Reconnect Voltage>Under Voltage Warning Voltage Discharging Limit Voltage;

• Boost Reconnect Charging voltage> Low Voltage Reconnect Voltage;

• Low Voltage Disconnect Voltage ≥ Over Discharging Protection Voltage (BMS)+0.2V

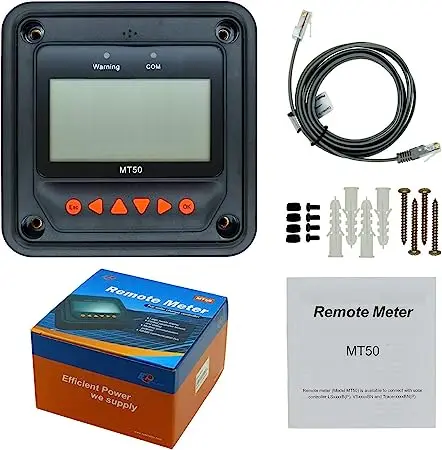

Package List:
