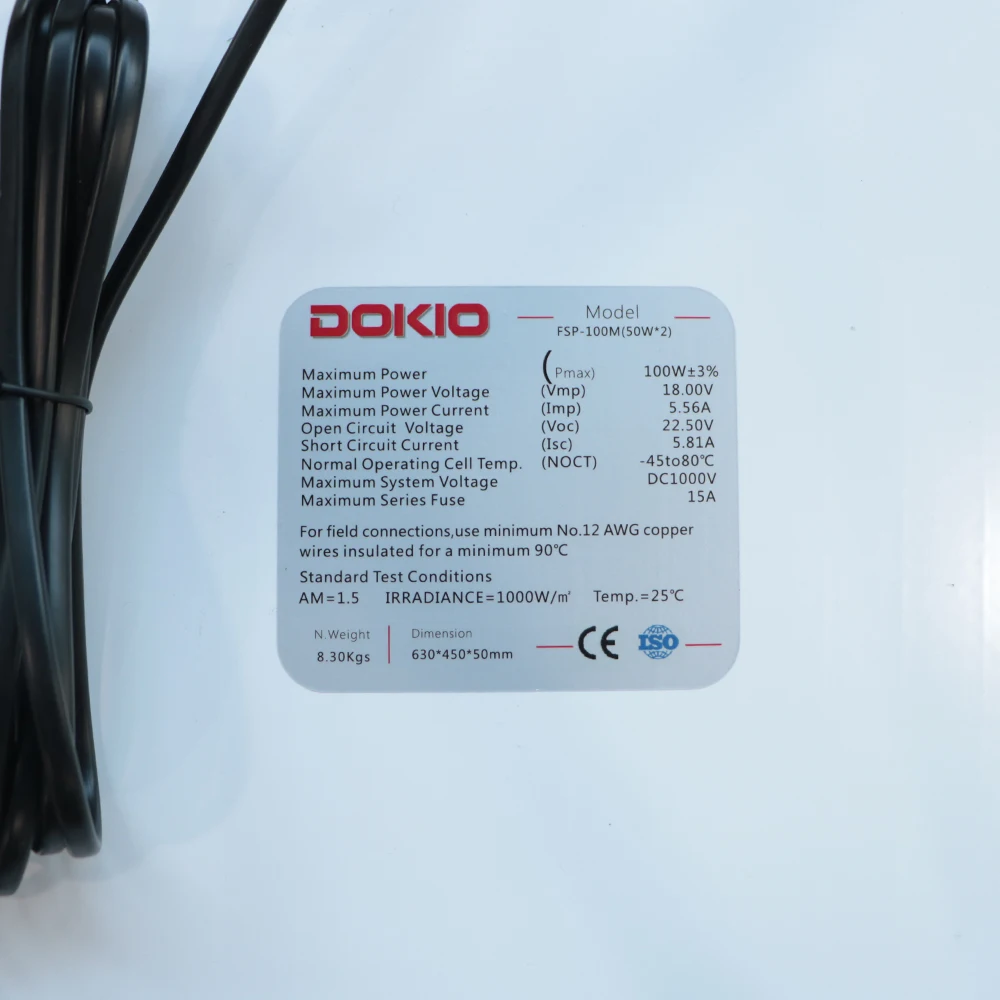

Model:FSP-100M

Date first listed:18/04/2018

Material:Monocrystalline silicon

Maximum Power(Pmax): 100W±3%

Maximum Power Voltage(Vmp):18.00V

Maximum Power Current (Imp):5.56A

Open-Circuit Voltage (Voc): 22.50V

Short-Circuit Current (Isc):5.81A

Maximum System Voltage: DC1000V

Maximum Series Fuse:9A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Weight: 6.9KG

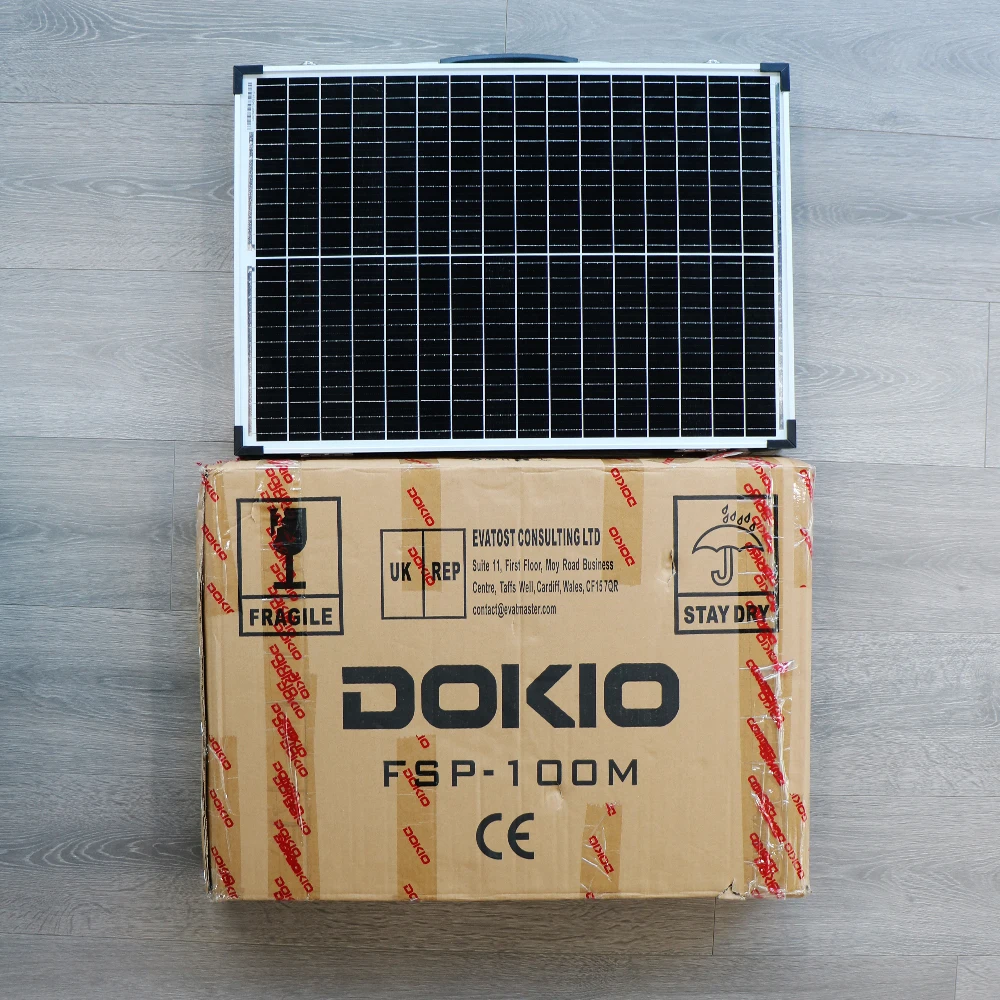

Foldable Dimension:

63.5*45*5(cm)

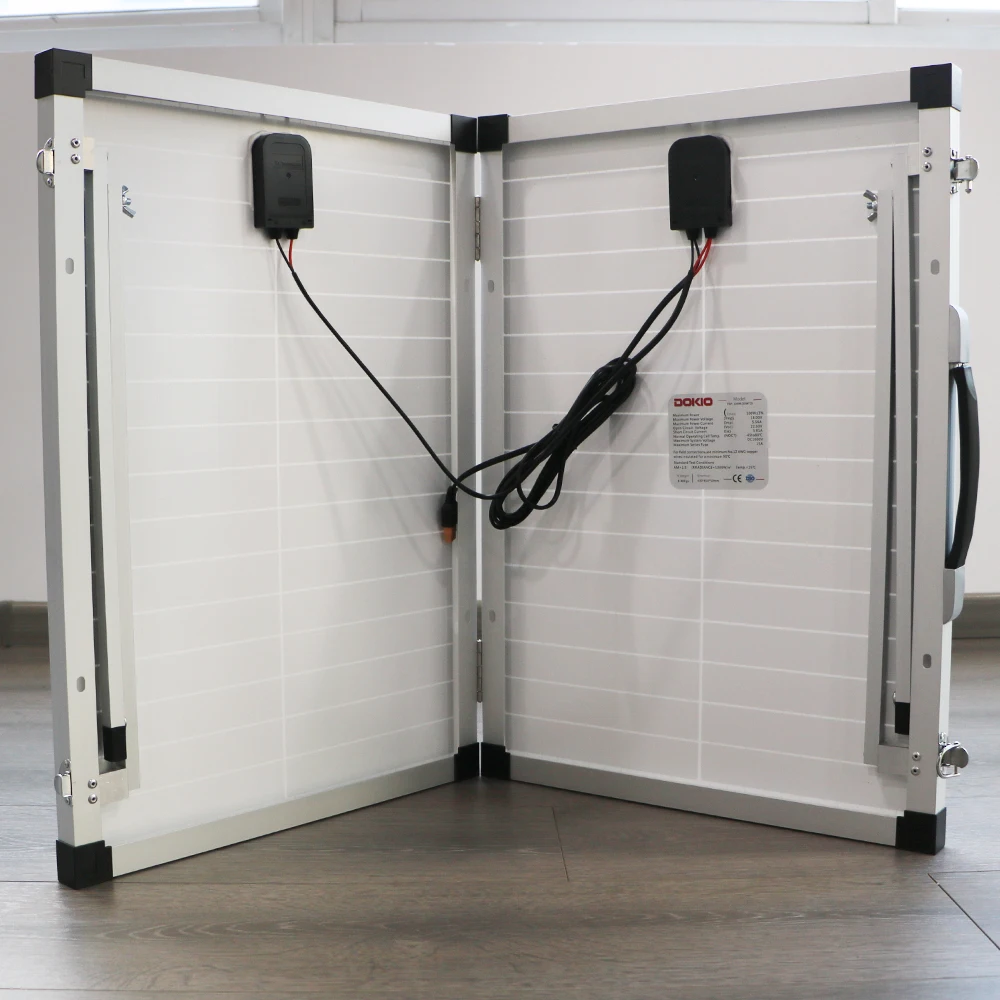

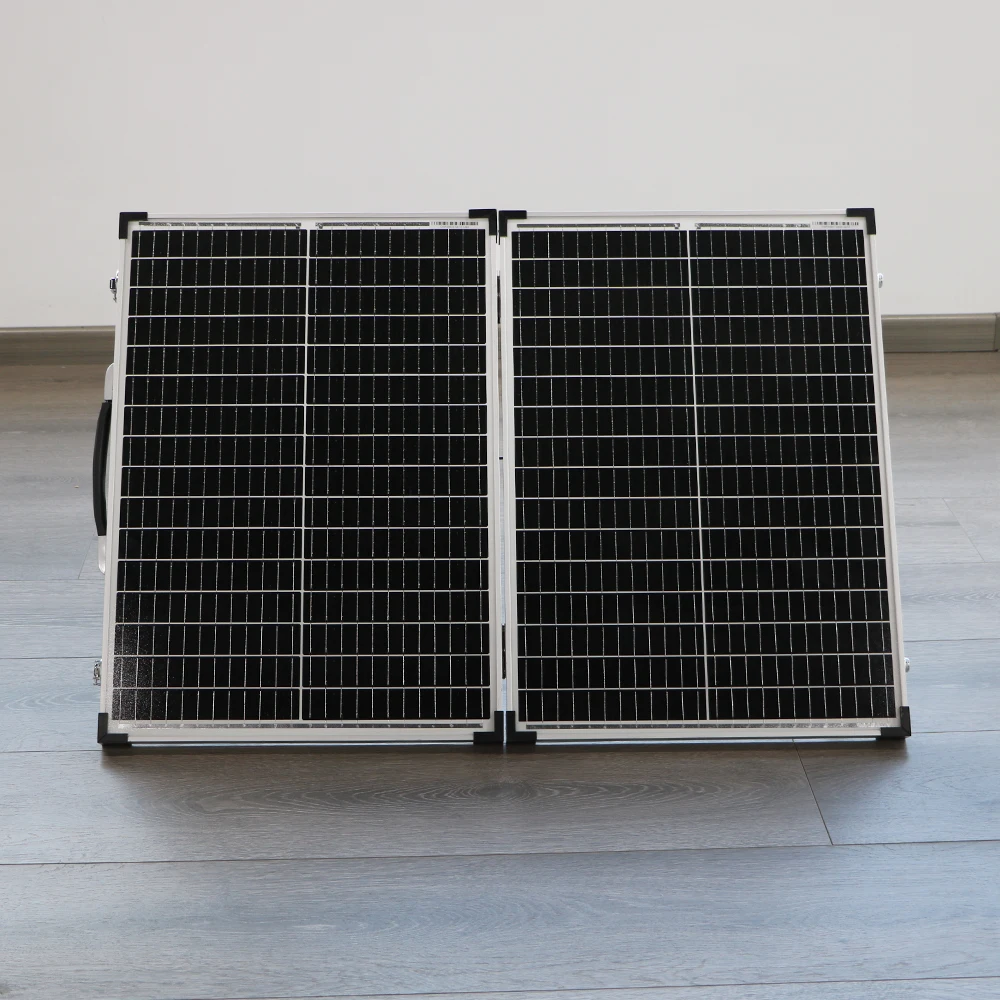

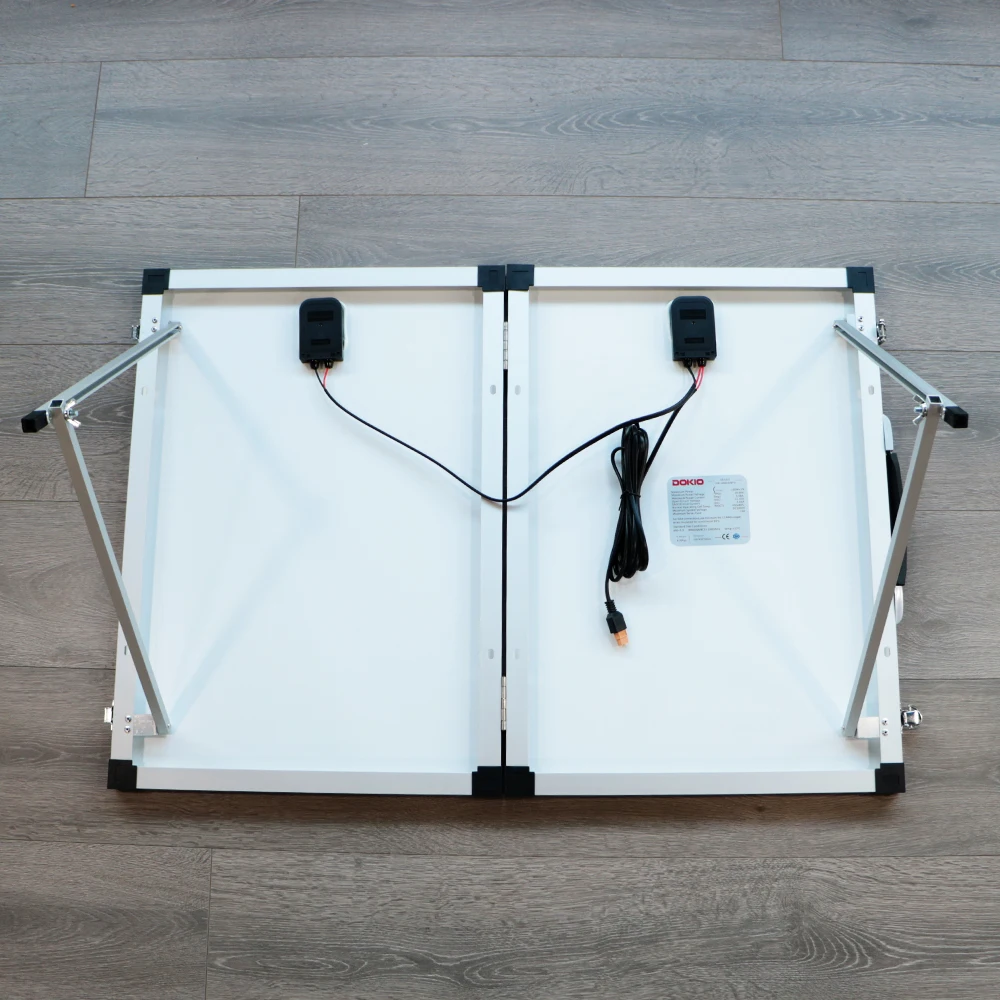

Unfold dimensions:

90.5*63.5(cm)/36*25(inch)

Package List:

100W solar panel *1

Alligator clip cable*1

10A PWM controller *1

DOKIO bag*1

(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）
Controller support 12V lead-acid,lithium ions and LiFePO4 battries.
The controller cannot be used to test solar panels.Under sufficient light conditions, a multimeter should be used for no-load test.

PS

The gray controller is suitable for 12V lead-acid,lithium ions and LiFePO4 battries.

No need to connect battery to start.
