Products Description
Product Paramenters
|
Items
|
Value
|
|

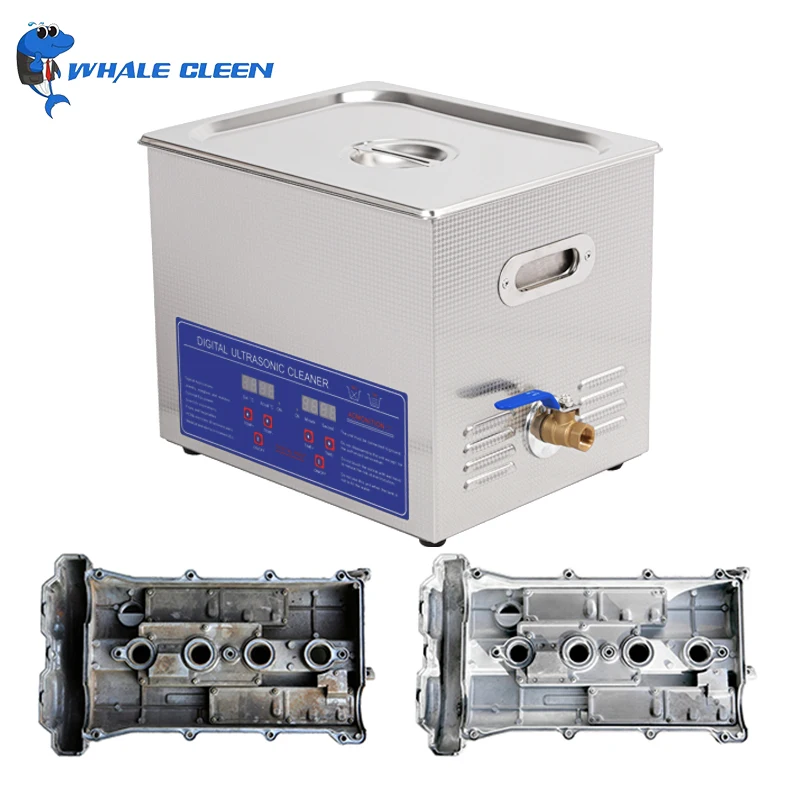

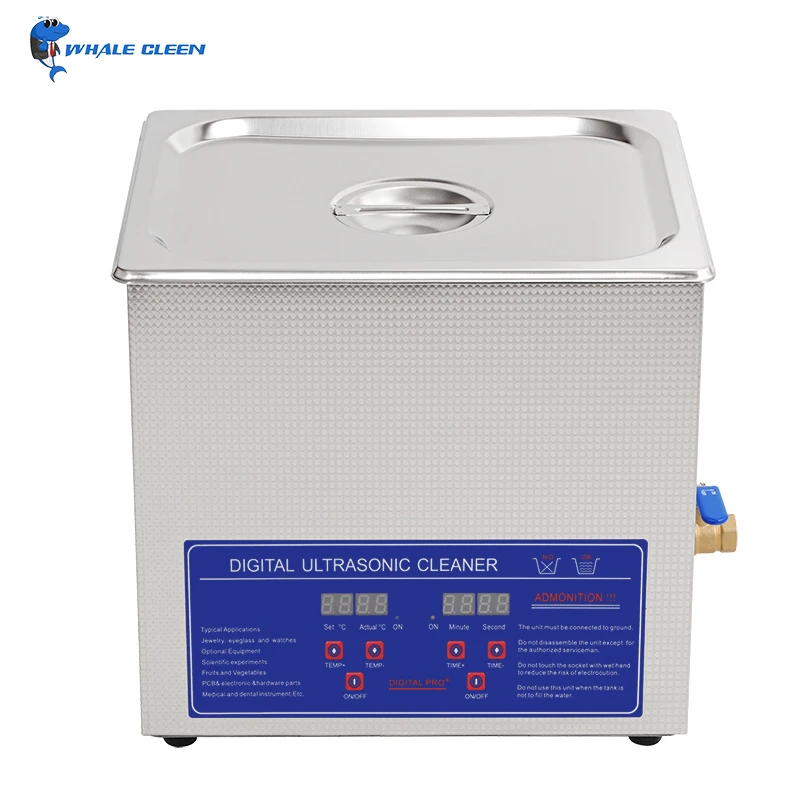

Model No.
|
Z-S04
|
|
Ultrasonic Frequency
|
40,000 Hz (40Khz)
|
|
Material
|
Stainless steel SUS304 or SUS316, can be chosen.
|
|
Tank Capacity
|
10L
|
|
Tank Size
|
300*240*150mm ( L*W*H )
|
|
Unit Size
|
380*290*280mm( L*W*H )
|
|
Package Size
|
435*360*350mm( L*W*H )
|
|
G.W. per Unit
|
8.5KGS
|
|
Packing Method
|
1pc per carton
|
|
Timer
|
1-30 min. adjustable
|
|
Ultrasonic Power
|
240W
|
|
Transducer Qty
|
4pcs
|
|
Heating Power
|
200W
|
|
Power Supply
|
AC 100 ~ 120V, 50 / 60Hz
AC 220 ~ 240V, 50 / 60Hz |
You can also find below parameters with other capacity for this series:
|
Model
|
Capacity
|
Tank Size
|
Ultrasonic Frequency
|
Transducer Qty
|
Ultrasonic Power
|
Heating
Power |
Temp. Control
|
Time Control
|
|
Z-S008
|
0.8L
|
150*85*65MM
|
40KHz
|
1pc
|
50W
|
/
|
/
|
18 Time frame adjustable such as 1-180S is one of the time cycles
|
|
Z-S009
|
1.3L
|
150*135*65MM
|
40KHz
|
1pc
|
80W
|
100W
|
Room temp. to 80℃
|
|
|
Z-S01
|
2L
|
150*135*100MM
|
40KHz
|
1pc
|
80W
|
100W
|
Room temp. to 80℃
|
1-30 Min.
|
|
Z-S02
|
3.2L
|
240*135*100MM
|
40KHz
|
2pcs
|
120W
|
100W
|
Room temp. to 80℃
|
1-30 Min.
|
|
Z-S03
|
4.5L
|
300*150*100MM
|
40KHz
|
3pcs
|
180W
|
200W
|
Room temp. to 80℃
|
1-30 Min.
|
|
Z-S031
|
6.5L
|
300*150*150MM
|
40KHz
|
3pcs
|
180W
|
200W
|
Room temp. to 80℃
|
1-30 Min.
|
|
Z-S04
|
10L
|
300*240*150MM
|
40KHz
|
4pcs
|
240W
|
200W
|
Room temp. to 80℃
|
1-30 Min.
|
|
Z-S05
|
14.5L
|
300*240*200MM
|
40KHz
|
5pcs
|
300W
|
200W
|
Room temp. to 80℃
|
1-30 Min.
|
|
Z-S06
|
15L
|
330*300*150MM
|
40KHz
|
6pcs
|
360W
|
300W
|
Room temp. to 80℃
|
1-30 Min.
|
|
Z-S07
|
20L
|
330*300*200MM
|
40KHz
|
7pcs
|
420W
|
300W
|
Room temp. to 80℃
|
1-30 Min.
|
|
Z-S08
|
22.5L
|
500*300*150MM
|
40KHz
|
8pcs
|
480W
|
500W
|
Room temp. to 80℃
|
1-30 Min.
|
|
Z-S010
|
30L
|
500*300*200MM
|
40KHz
|
10pcs
|
600W
|
500W
|
Room temp. to 80℃
|
1-30 Min.
|
Product Features

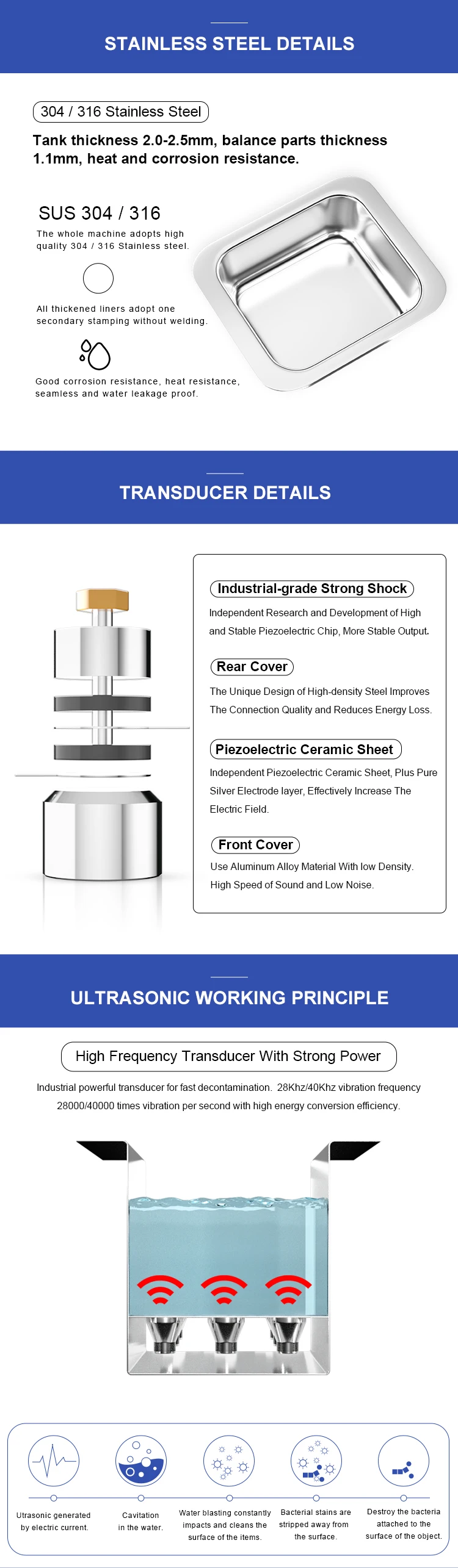

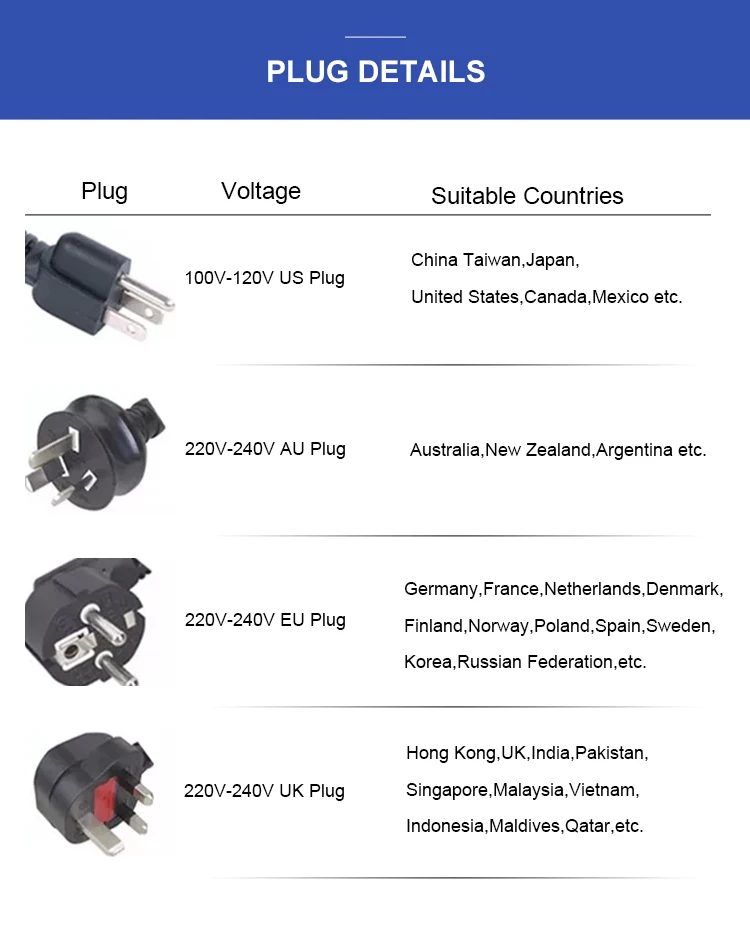

1. Compact product design, neat and elegant. 2. Adopt high-quality stainless steel SUS304 / 316 material, anti-corrosion. 3. No welding points on the cleaning tank, it is molded by one stamping process, waterproof and no potential leakage. 4. Standard Ultrasonic transducer power 60W/unit for the cleaner with tank capacity bigger than 3.2L, high ultrasonic power conversion efficiency, high cleaning speed, more efficient and clean than traditional cleaning method; 5. 0-80 °C self-regulation temperature control, LED digital display, 1-30 minutes digital control, to meet your varies cleaning needs; 6. 6L and above with drainage, easy maintenance; 7. Support full voltage from 100, 110~130, 220~240V, plug type will be matched according to your shipping address. 8. This product is sold with drainage pipes, PTFE tape, adapter, stainless steel cleaning basket and sound drop cover. 9. Blue Whale desktop digital Z series ultrasonic cleaning machine, mainly used in mechanical, electronic, jewelry, optical, coating, auto maintenance and vacuum coating pre-treatment and other related categories. For parts with complex surface shapes, such as grooves, slits, blind holes and deep holes on parts, it has an efficient and rapid cleaning effect. At the same time, it can clean off the oil, rust and oxide from the surface of the parts.
Product packaging

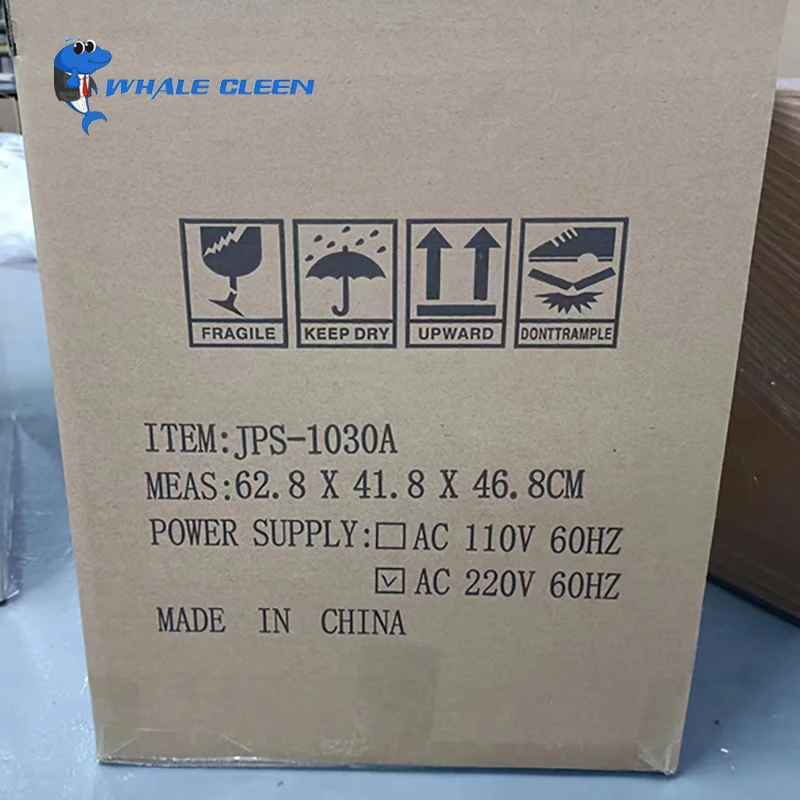

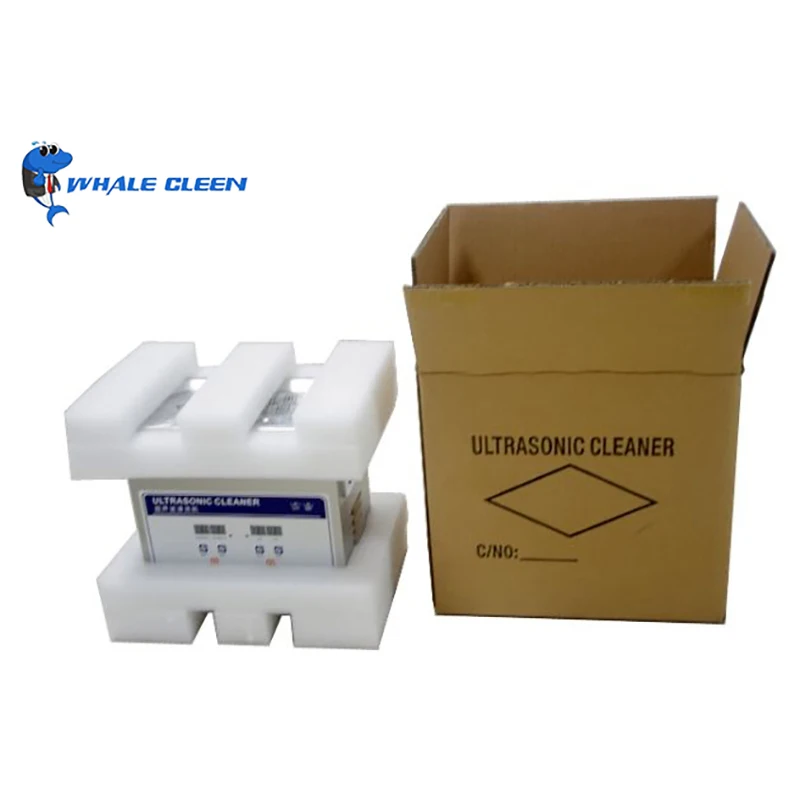

Paper Carton Packing
For tabletop small ultrasonic cleaners with
product details printed on the carton markings.

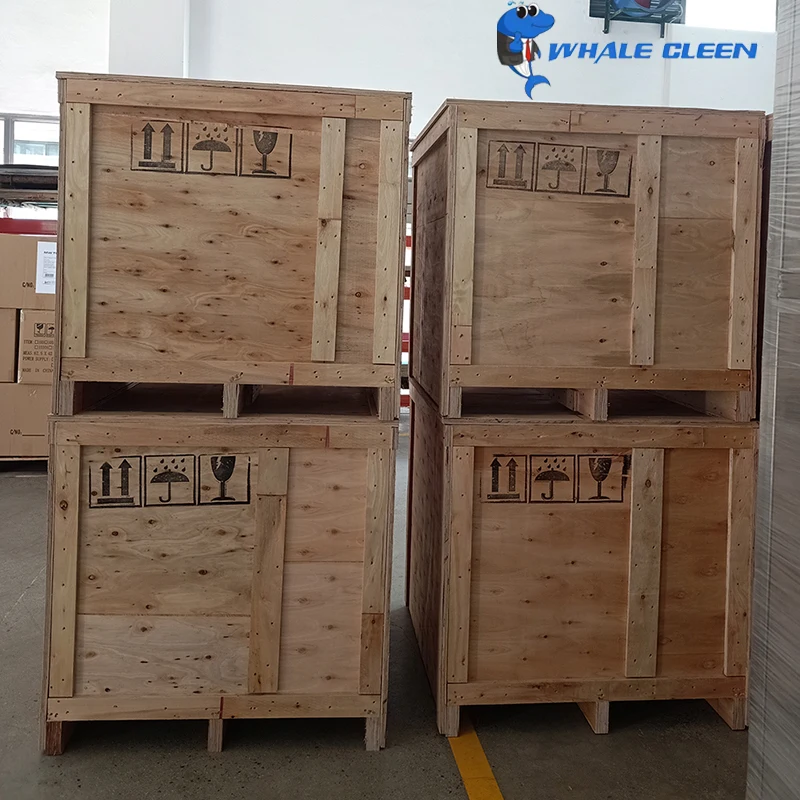

Wooden Case Packing:
For industrial big ultrasonic cleaners, the product details
are printed on the paper stickers then put on the outside case.
are printed on the paper stickers then put on the outside case.
