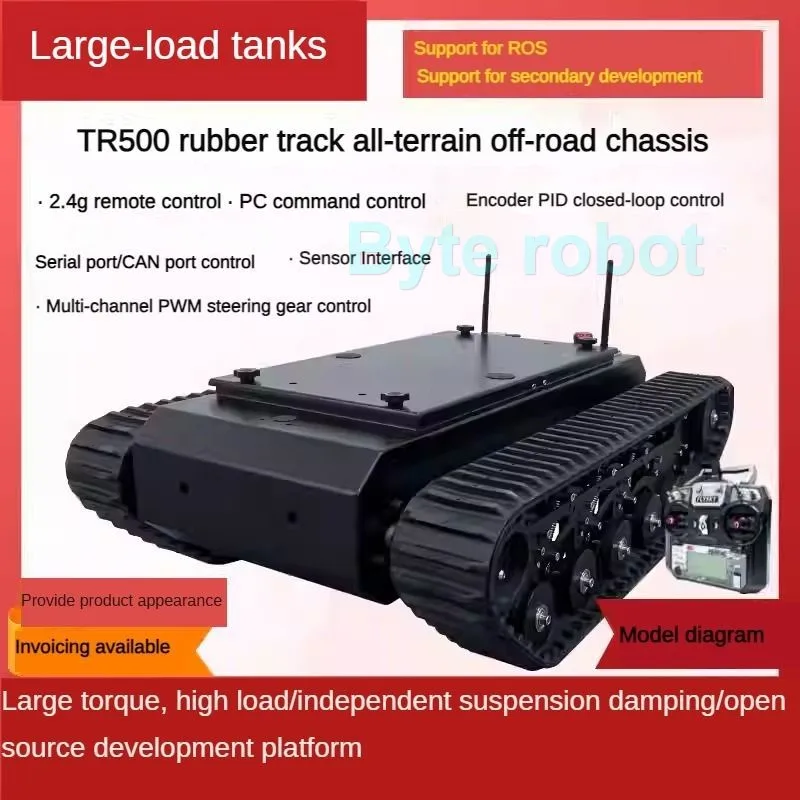

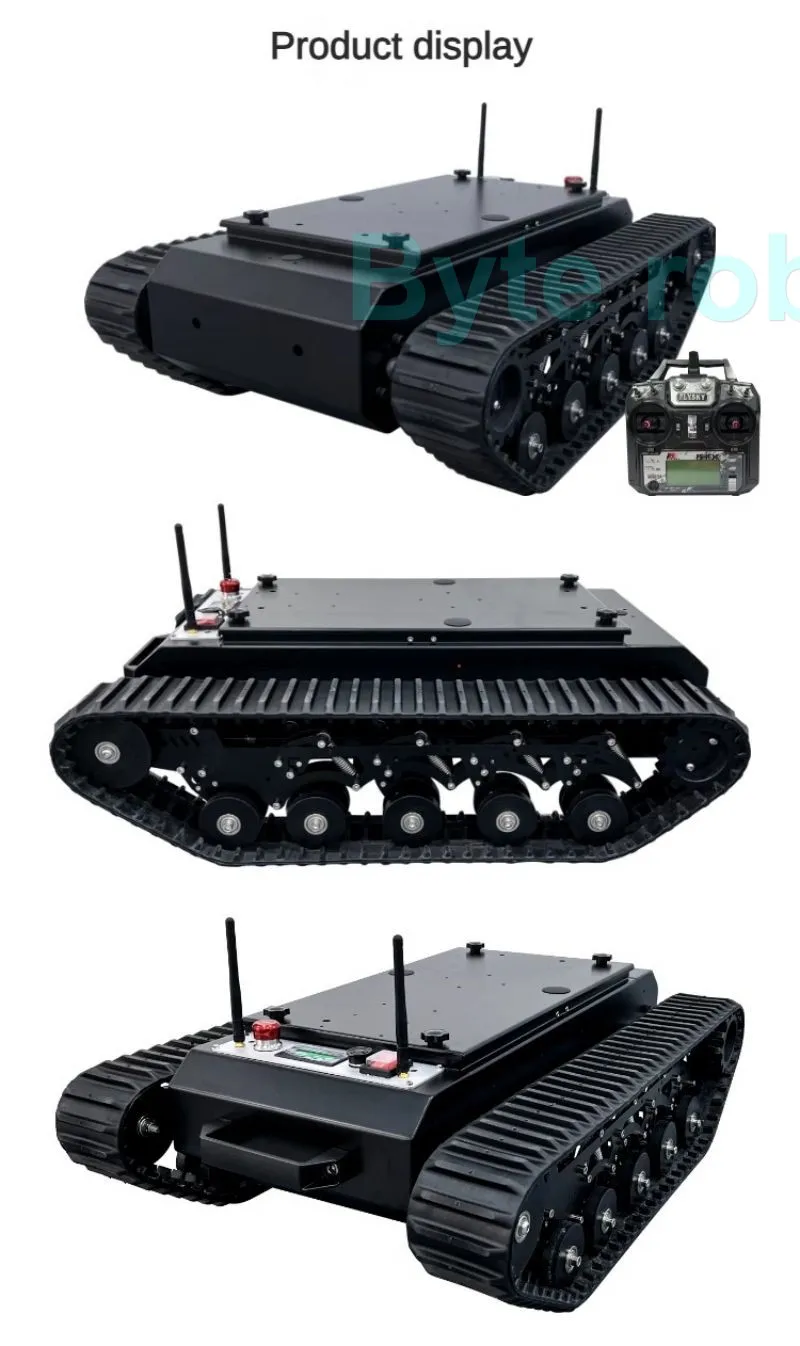

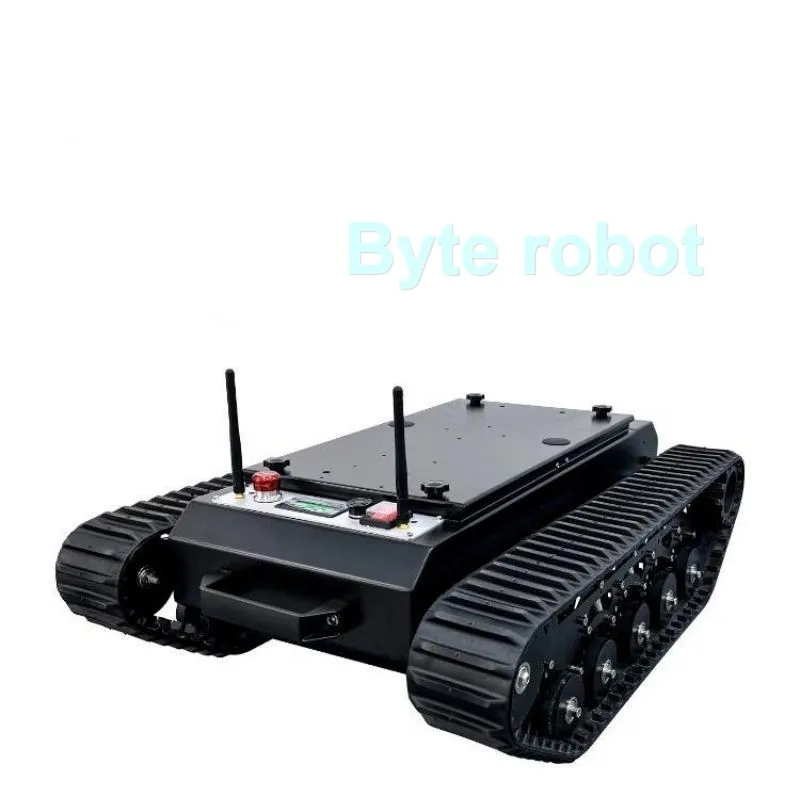

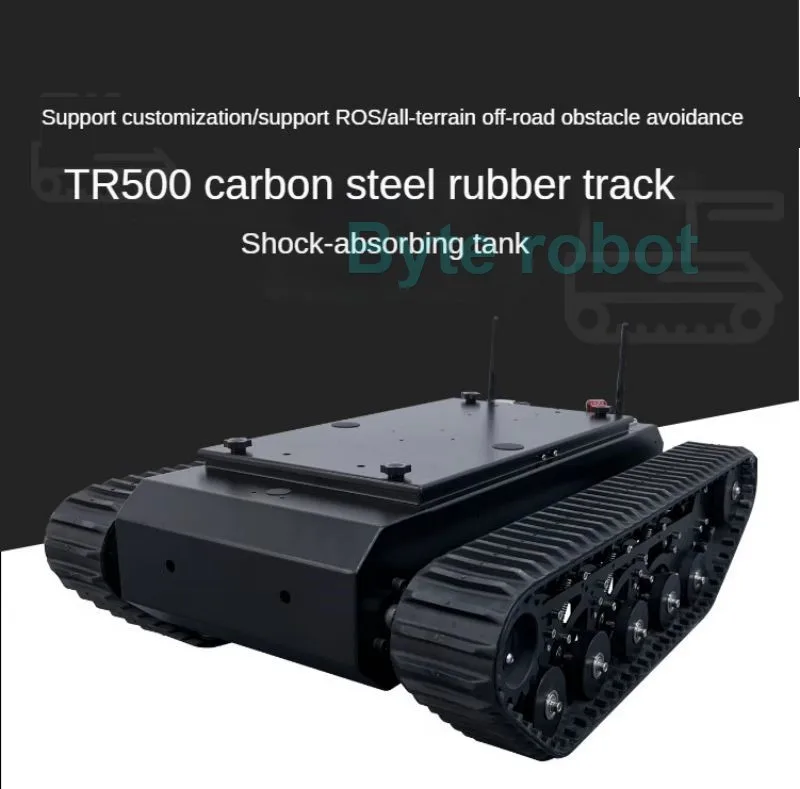

New TR500 Tank Car chassis ,8cm Rubber Track,50kg High load.High Speed. 10 Suspension system,STM32 Develop,DIY

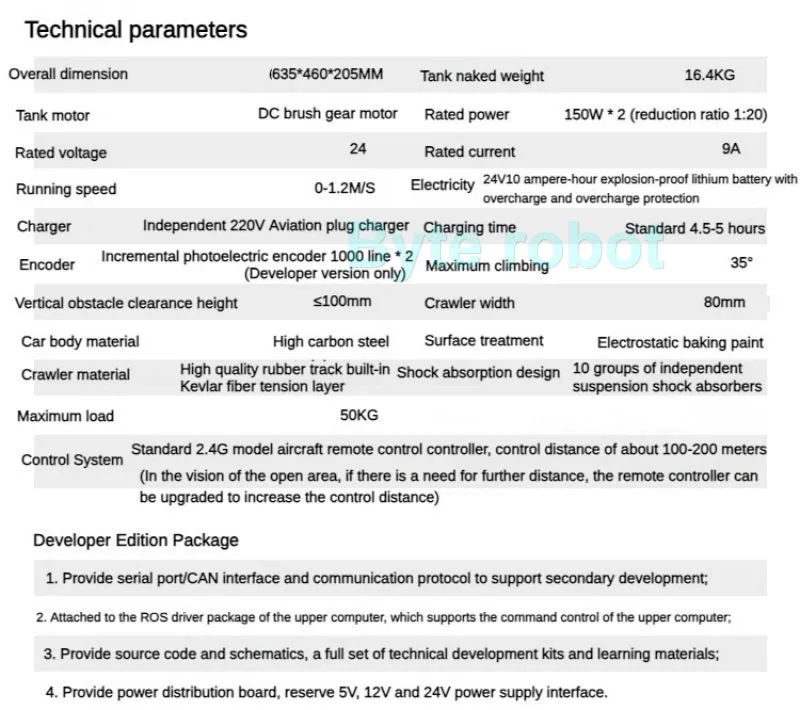

Product Description:
Name: TR500 Tank Chassis
-
Wheel: Nylon material
-
Tank Boay Material:Steel
-
Tracks: 80mm width rubber tracks with kevlar fibers of inner tension layer
-

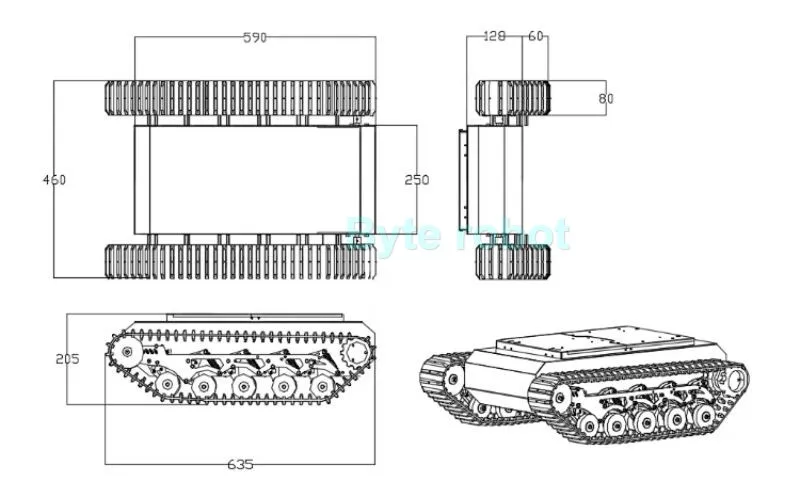

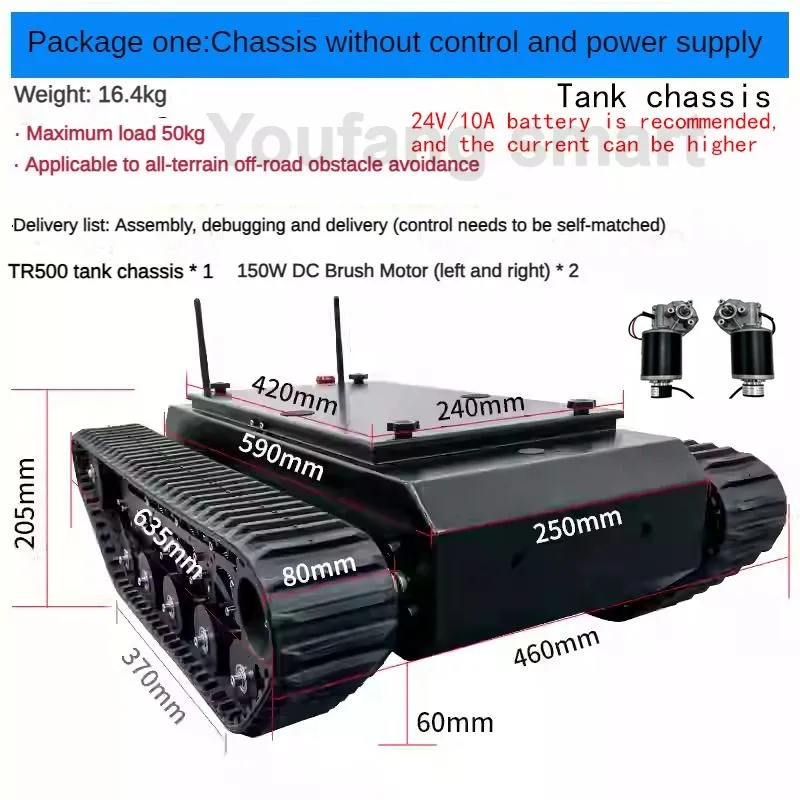

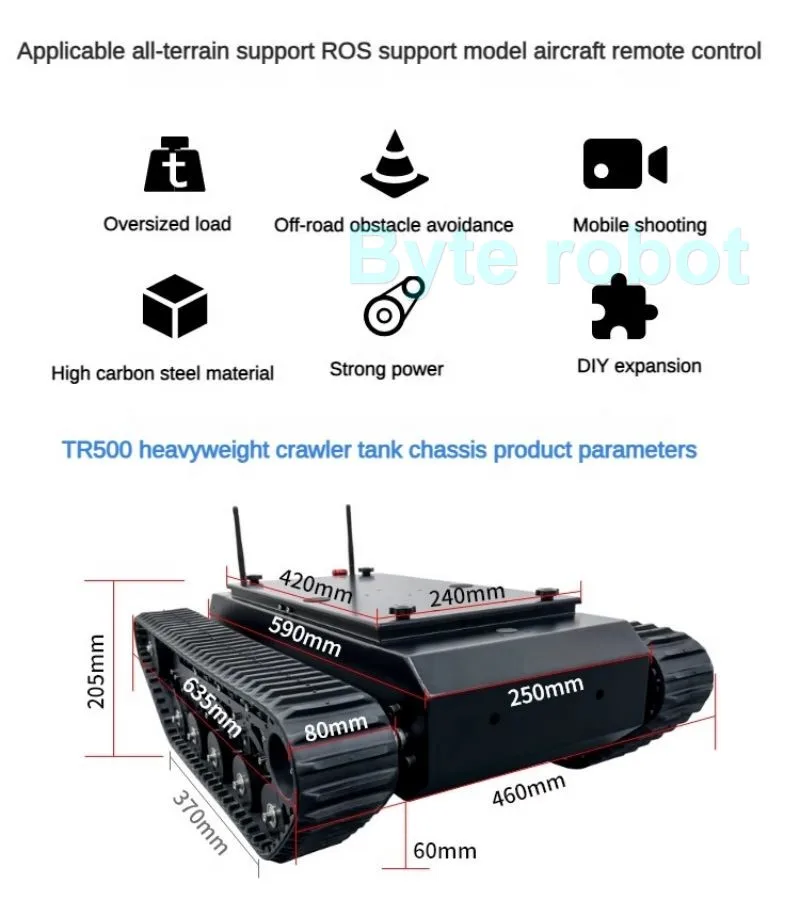

Size: 635* 460 *205mm (length * width * height)
-
Working Voltage: 24V
-
Working Current Request:30Ah
-
Speed:270±10%RPM
-
Shock Absorb System:10sets of individual suspention components
-
Tank Weight: 15.8KG
-

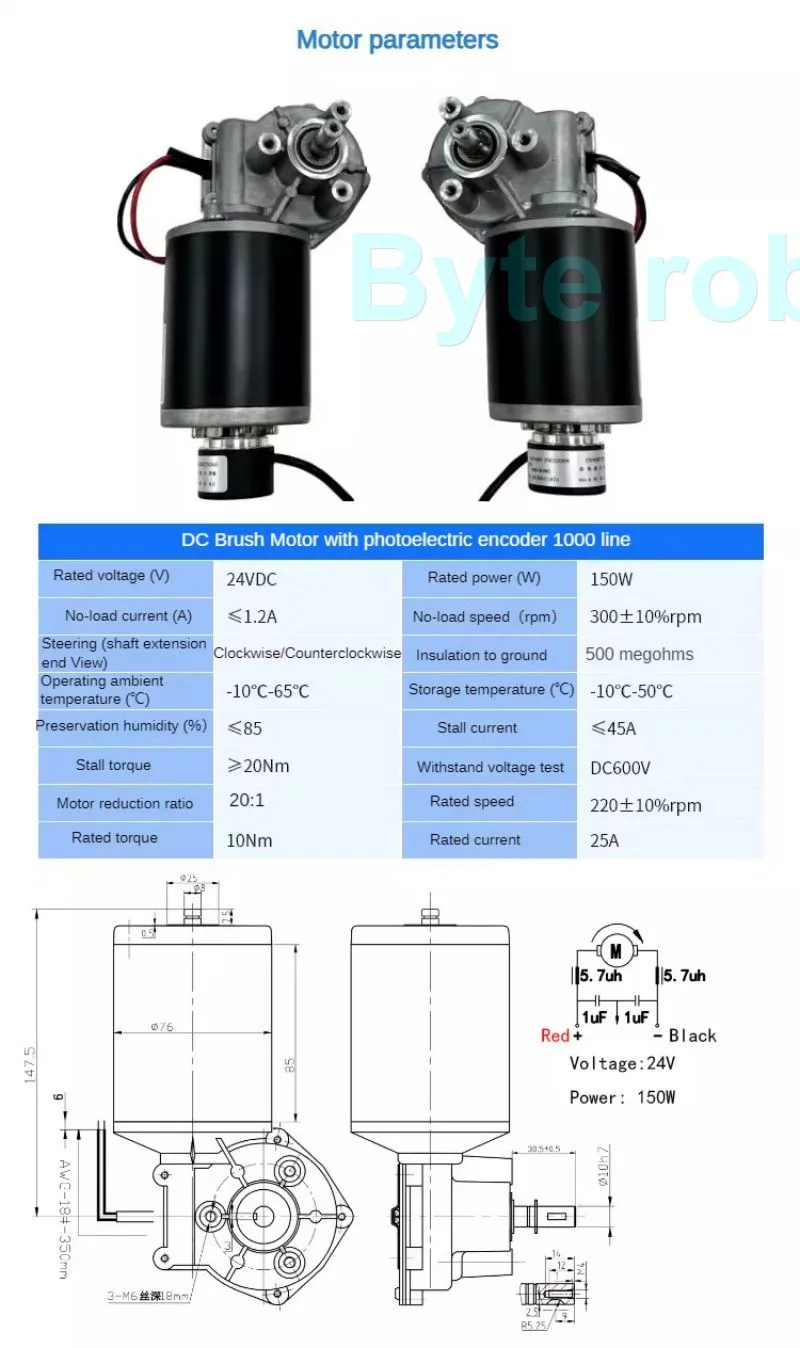

Type of Motor:DC brushed motor
-
Loading:50KG

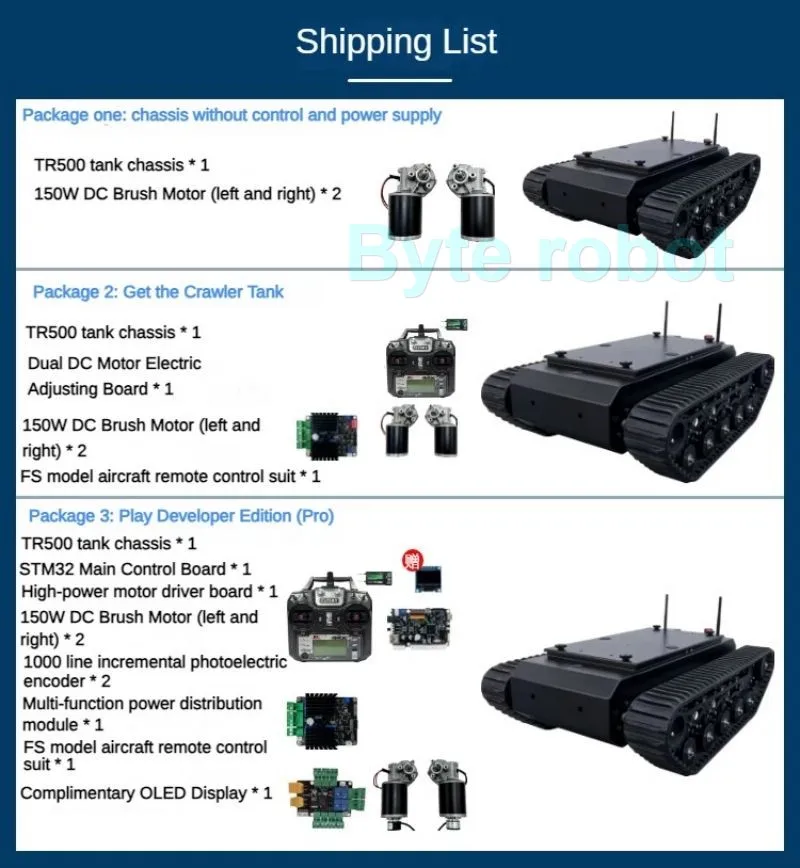

Shipping List:
-
Only TR500 tank chassis(Without Controller): TR500 tank chassis 1 pc (tank chassis with 2pcs of DC motors)
-

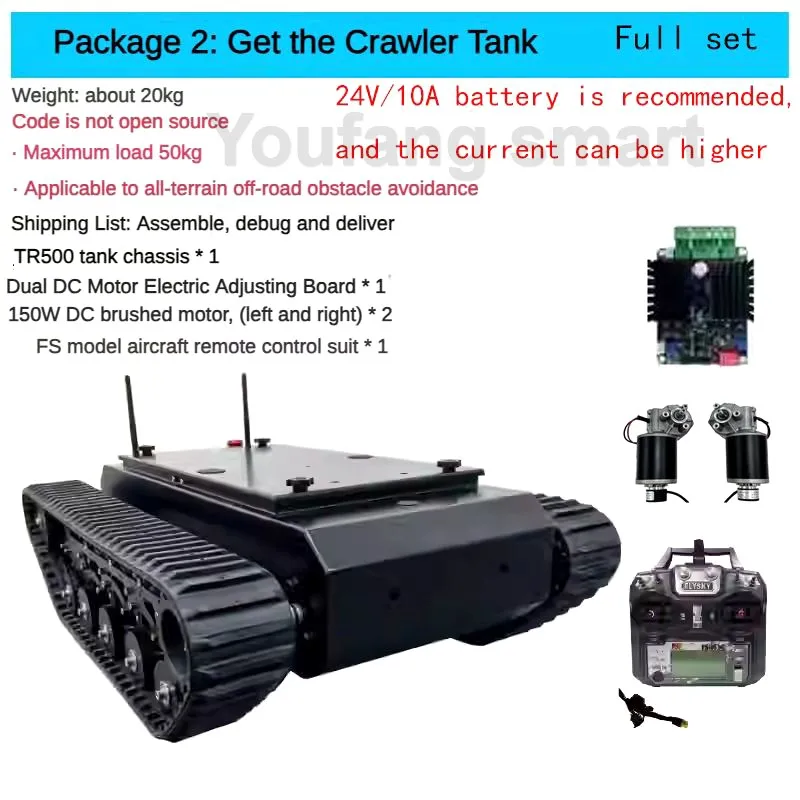

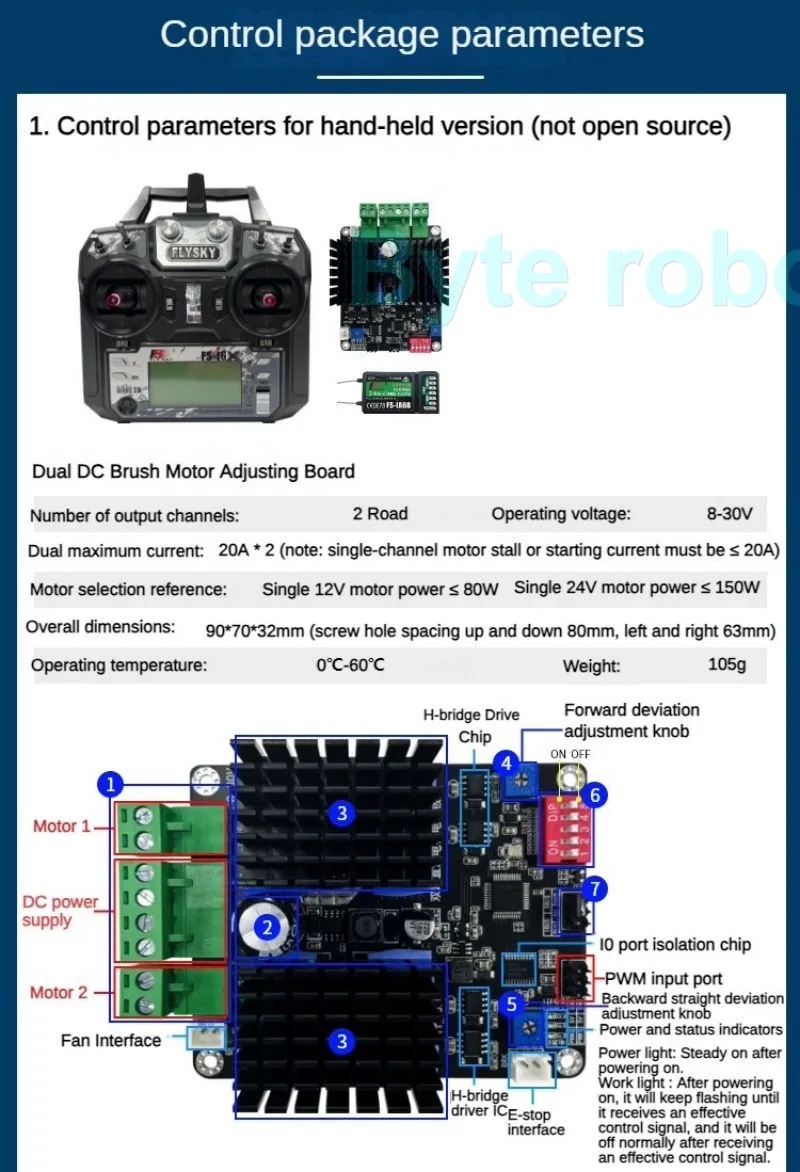

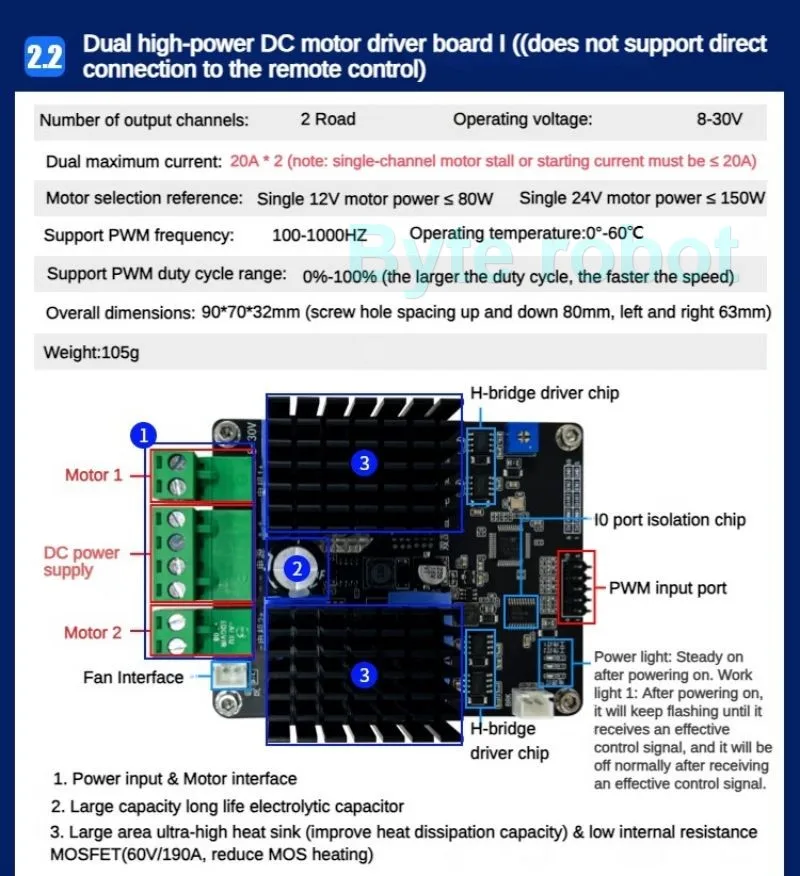

TR500 Full set : TR500 tank chassis with control set(tank chassis with 2pcs of DC motors and FS handle control set wired up, it is ready to use once you prepared compatible power to connect on it),Without STM32 mian board, no Programming code
-

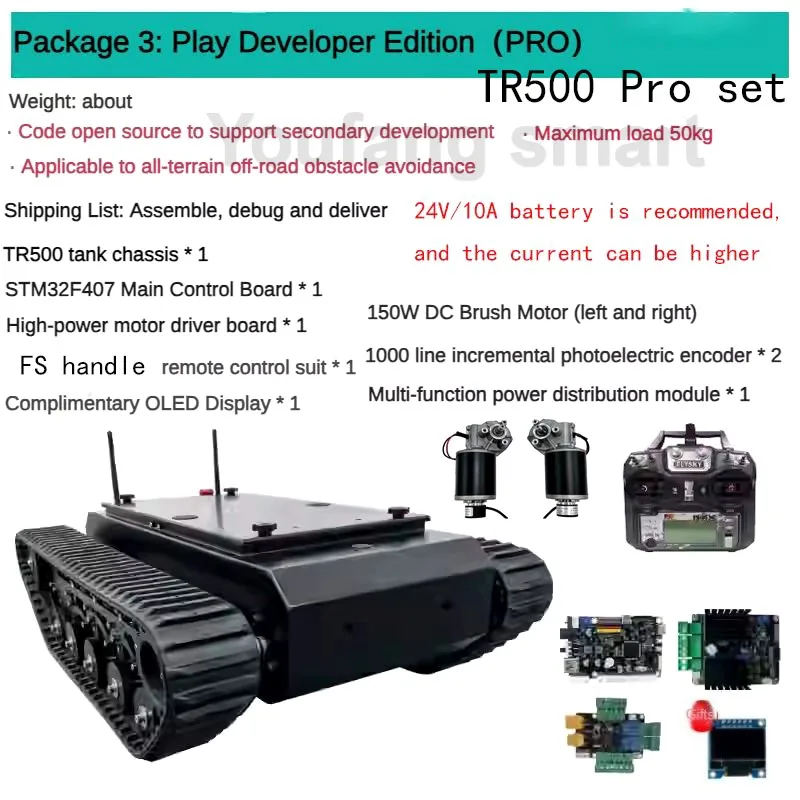

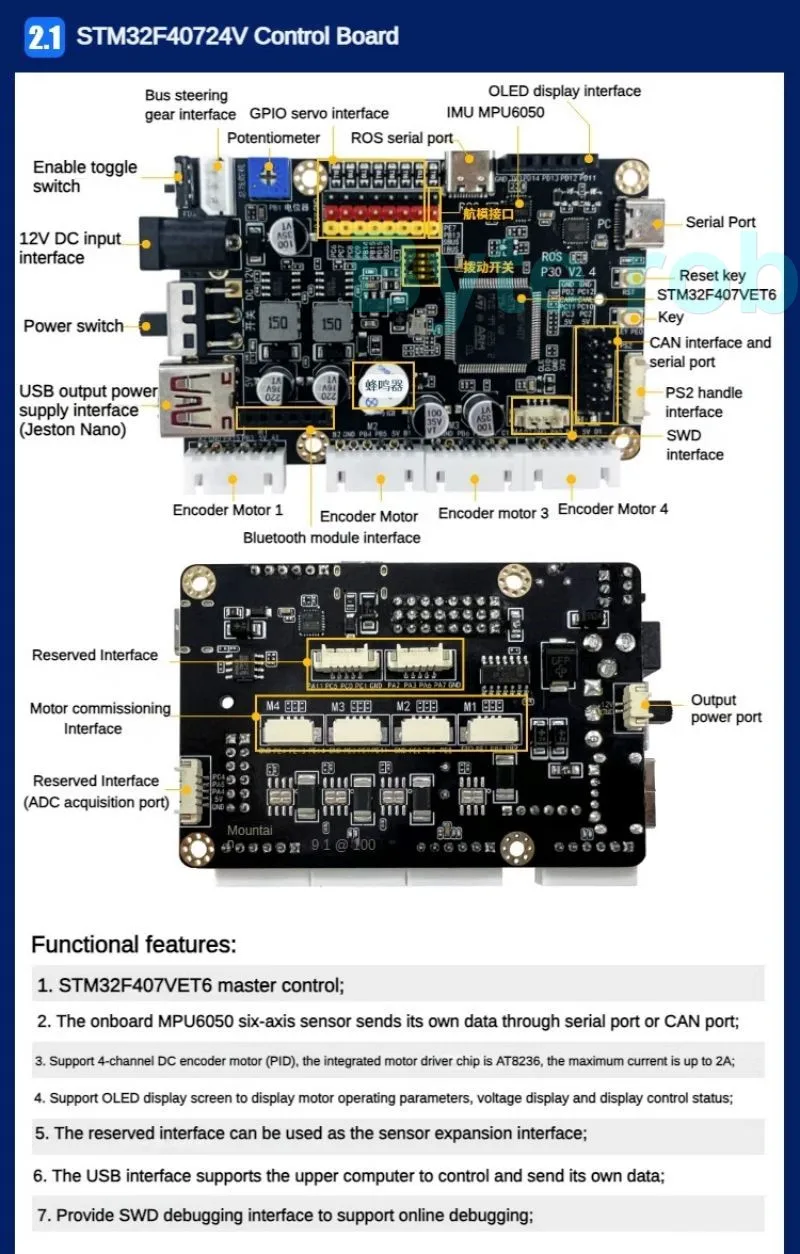

TR500 Pro set : TR500 tank chassis with control set(tank chassis with 2pcs of DC motors and FS handle control set wired up, it is ready to use once you prepared compatible power to connect on it),With STM32 mian board, Provide Programming code
-

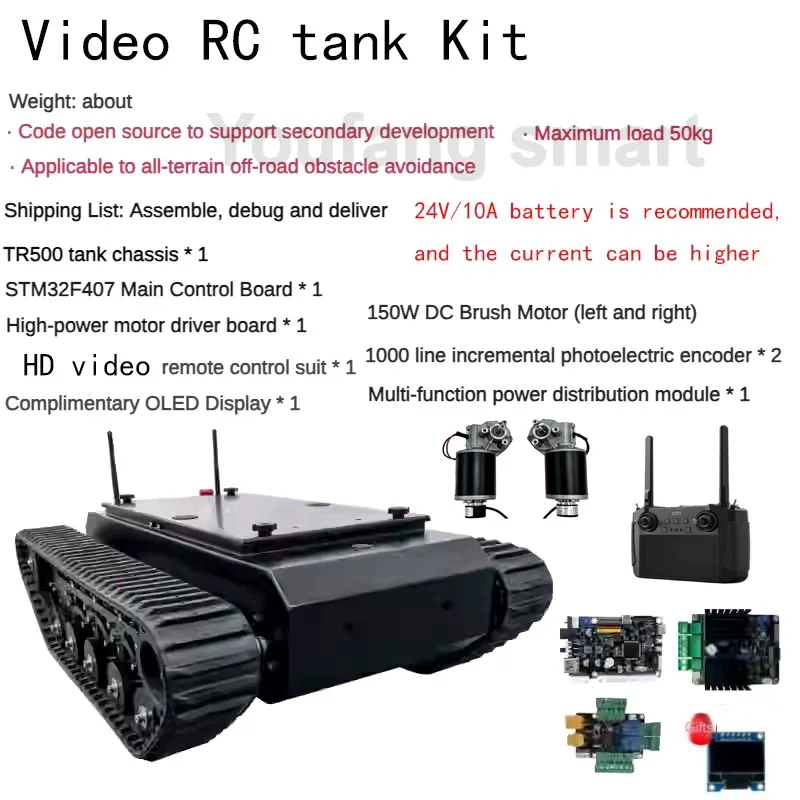

TR500 Video RC tank Kit: TR500 tank chassis with control set + Video camera + Video handle (tank chassis with 2pcs of DC motors and control set wired up, it is ready to use once you prepared compatible power to connect on it)
Warm Prompt:
-
Not includes any Battery(You need to prepare battery by yourself for tank chassis power supply, what we recommend is 24V Li battery with 30Ah working current, and we will prepare you XT60 male plug, which you can power on it directly when your battery is XT60 female plug)
