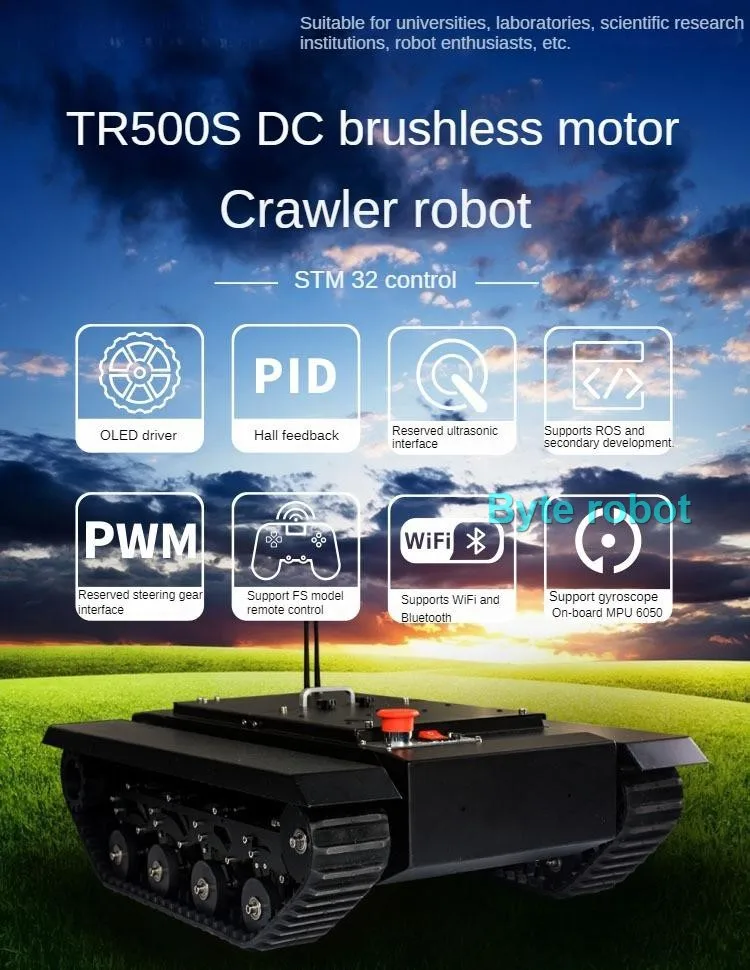

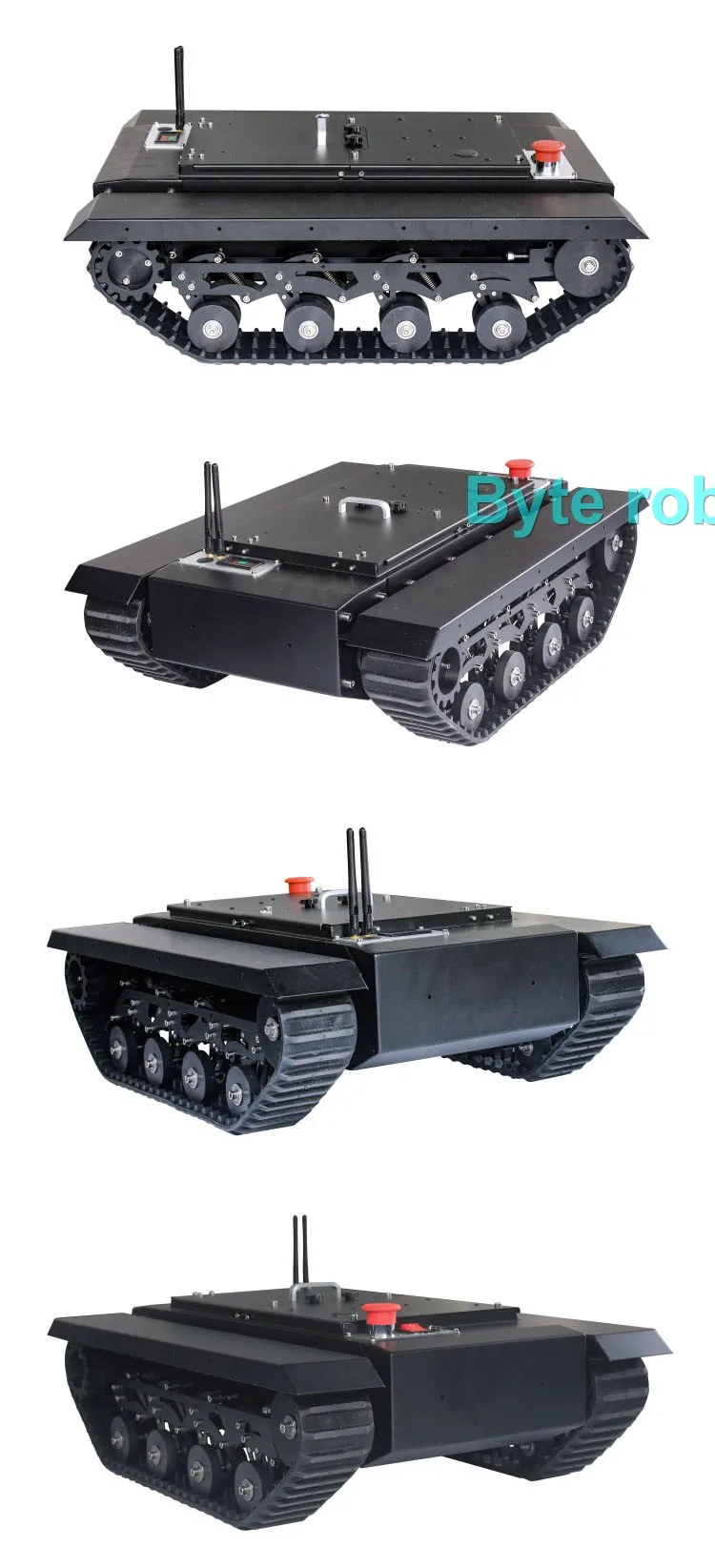

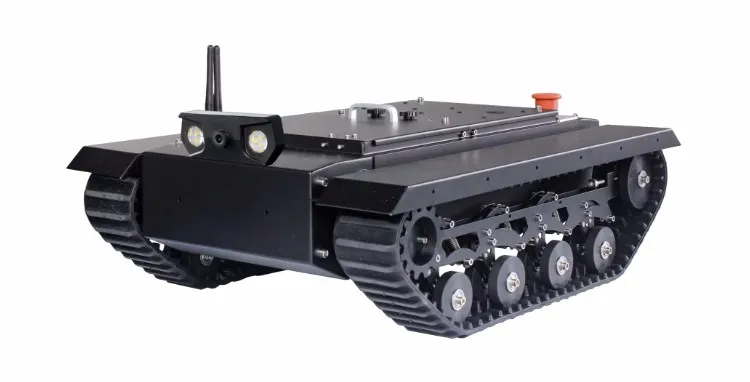

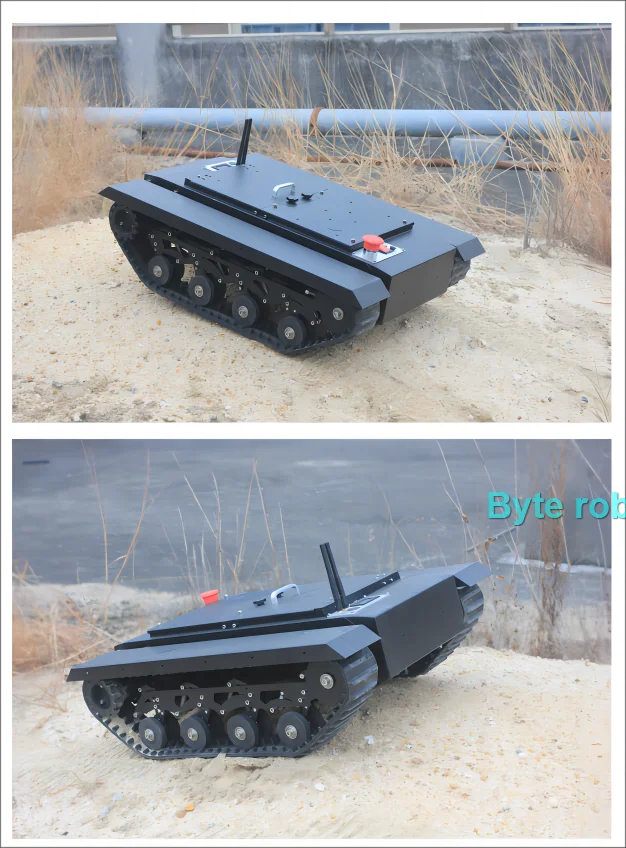

50KG Load Assembled TR500S Robot Chassis RC Tank Chassis Rubber Track STM32 Controller Image Transmission Remote Control Tank

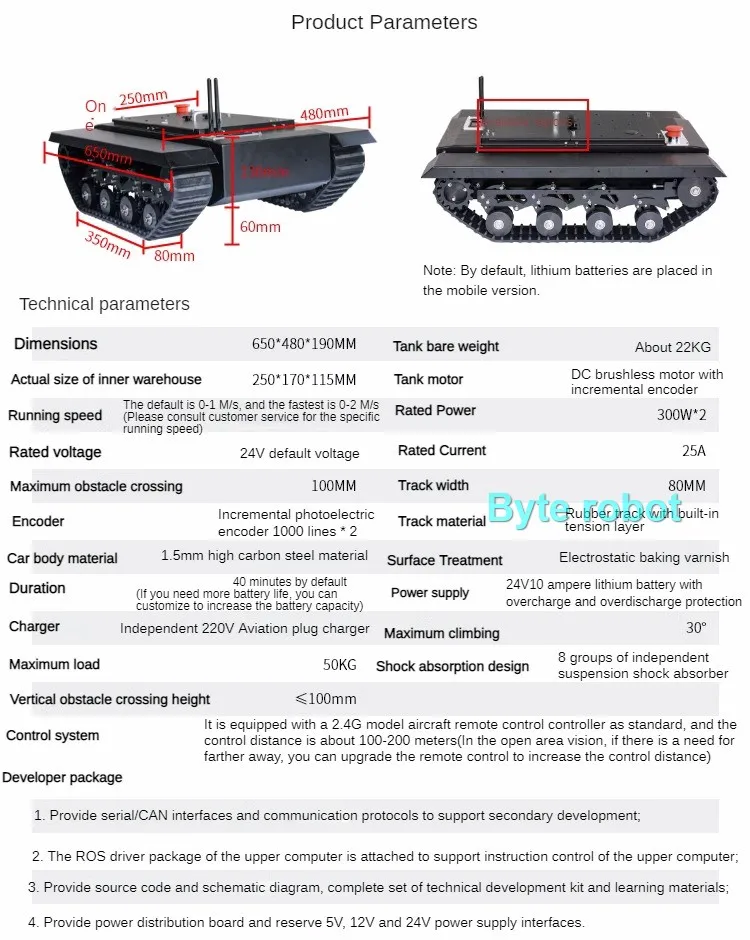

Features:
Dimensions: 650*480*190MM
Practical size of inner bin: 250*170*115MM
Running speed: default 0-1M/S, fastest 0-2M/S(please consult customer service for specific running speed)
Rated voltage: 24V Default voltage
Maximum obstacle crossing: 100MM

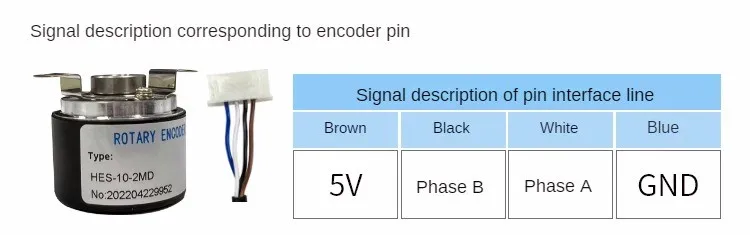

Encoder: Incremental photoelectric encoder 1000 lines *2
Body material: 1.5MM high carbon steel
Battery life: 40 minutes Default configuration (If you need more battery life, you can customize to increase the battery capacity)
Charger: Independent 220V aviation plug charger
Maximum load: 50KG
Vertical obstacle height: <100mm
Tank bare weight: approximately 22KG

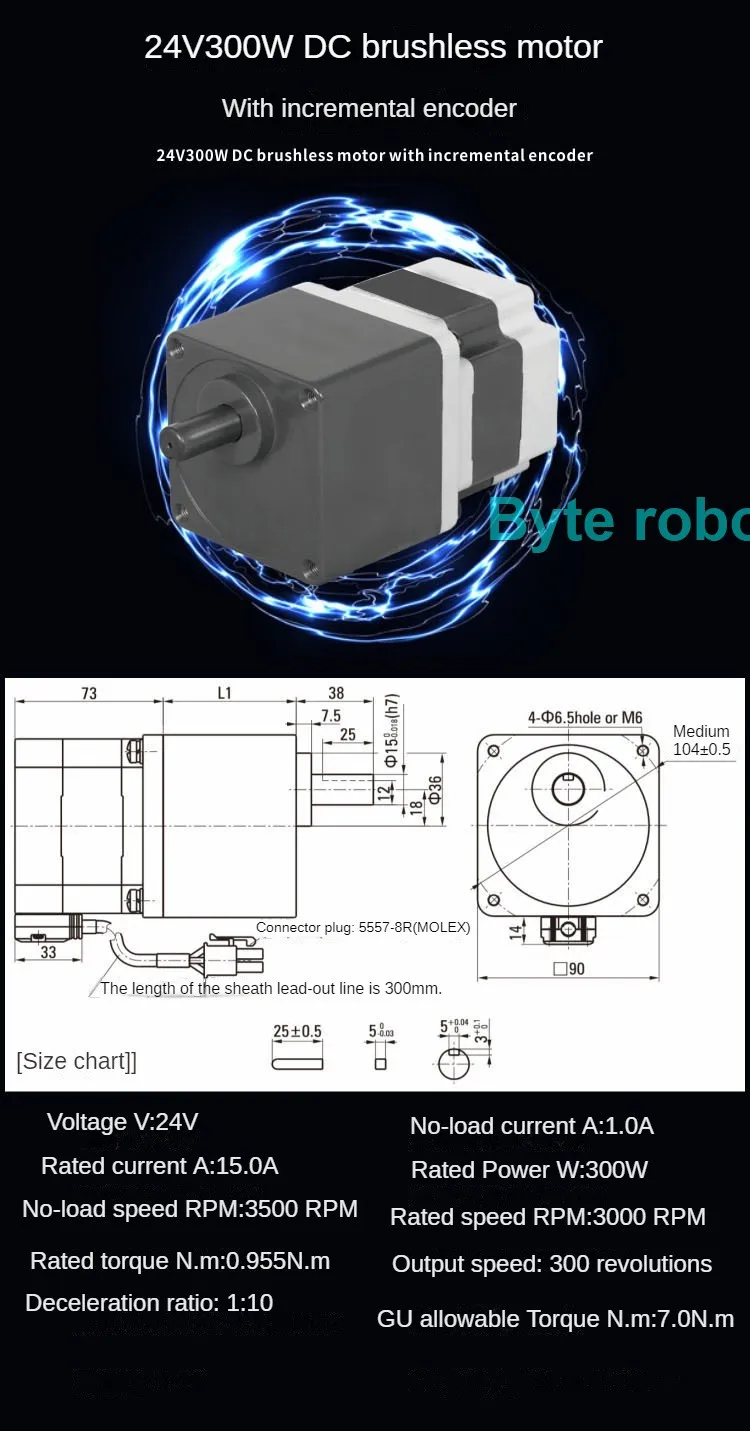

Tank motor: brushless DC motor with incremental encoder
Rated power: 300W*2
Rated current: 25A
Track width: 80MM
Track material: Rubber track, built-in tension layer
Surface treatment: electrostatic paint
Power supply: 24V10 amh lithium battery with overcharge and overdischarge protection
Maximum climb: 30°
Shock absorber design: 8 sets of independent suspension shock absorber
Control system: Standard 2.4G aircraft model remote control controller, the control distance is about 100-200 meters (in the open area vision, if there is further demand, the controller can be upgraded to increase the control distance)
Developer package
1. Provide serial /CAN interface and communication protocol to support secondary development;
2. Attached with host computer ROS driver package, support host computer command control;
3. Provide source code and schematics, a full set of technical development kits and learning materials;

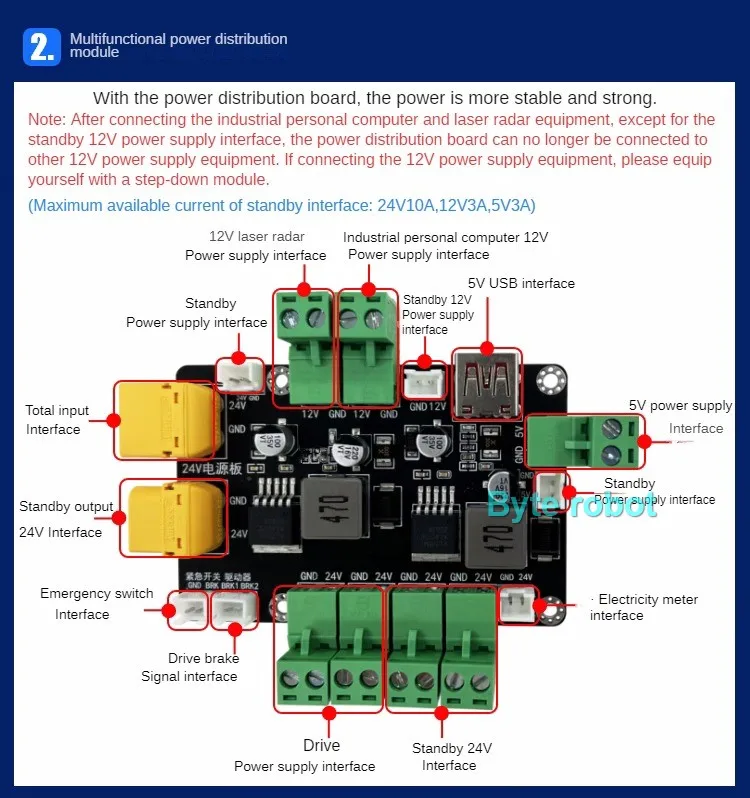

4. Provide a power distribution board and reserve 5V, 12V, and 24V power ports.

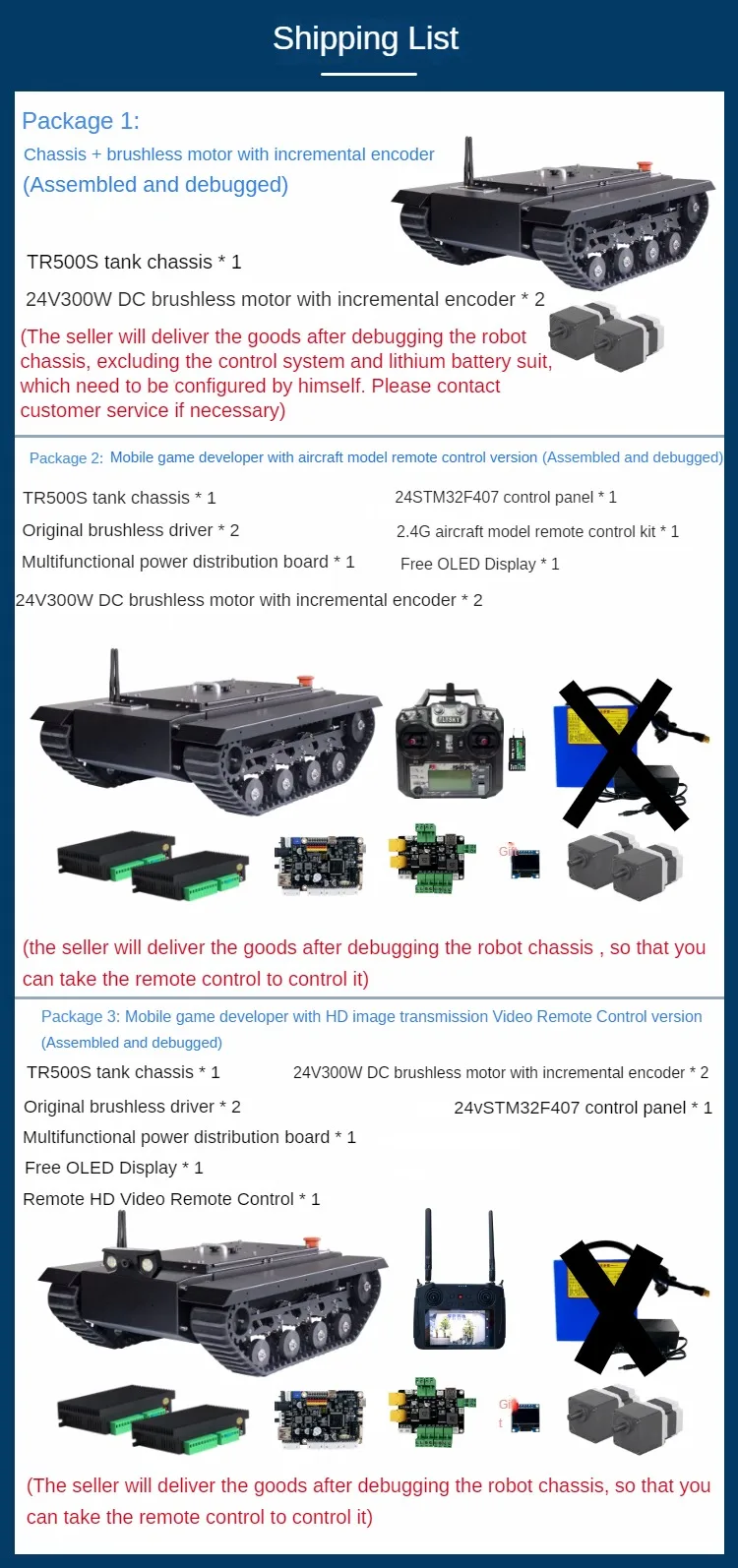

Shipping list

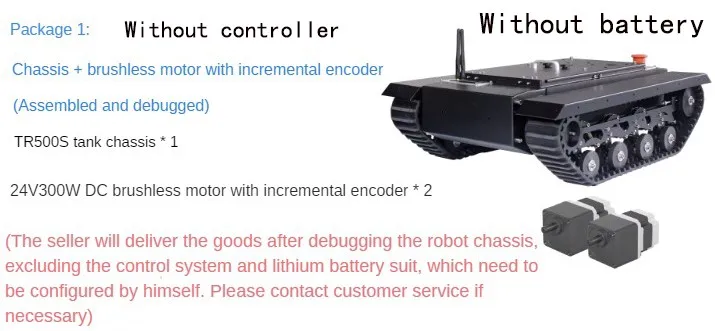

WIthout Controller:
1. TR500S tank chassis *1
2, 24V300W brushless DC motor with incremental encoder *2

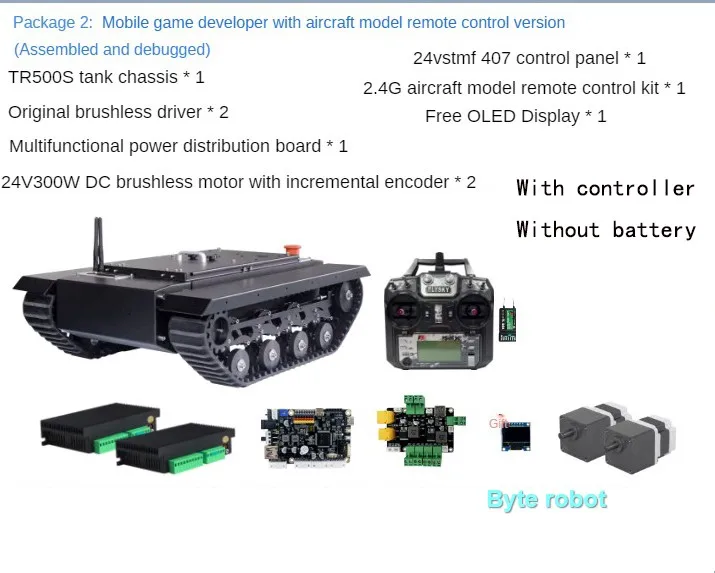

Full set:
1. TR500S tank chassis *1
2. Original brushless drive *2
3, multifunctional power distribution board *1
4, 24V300W brushless DC motor with incremental encoder *2

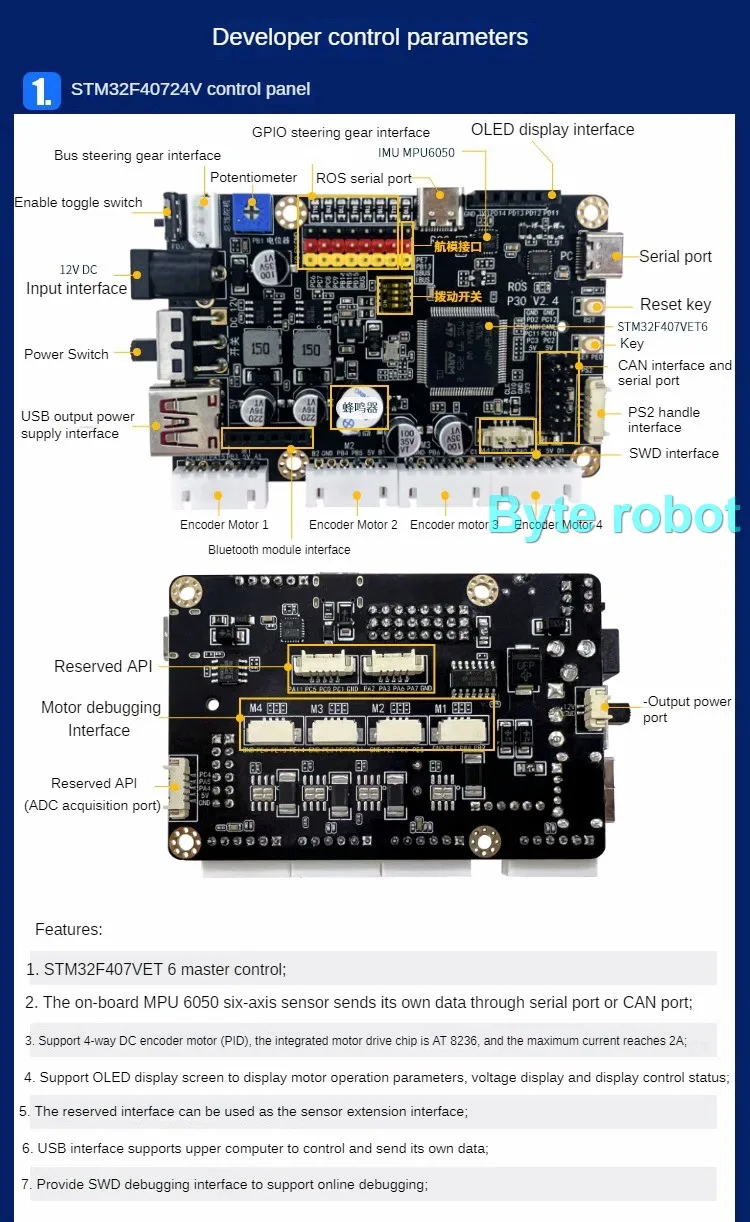

5, 24V STM32F407 control board *1
6, 2.4G model remote control kit *1
7, gift OLED display *1

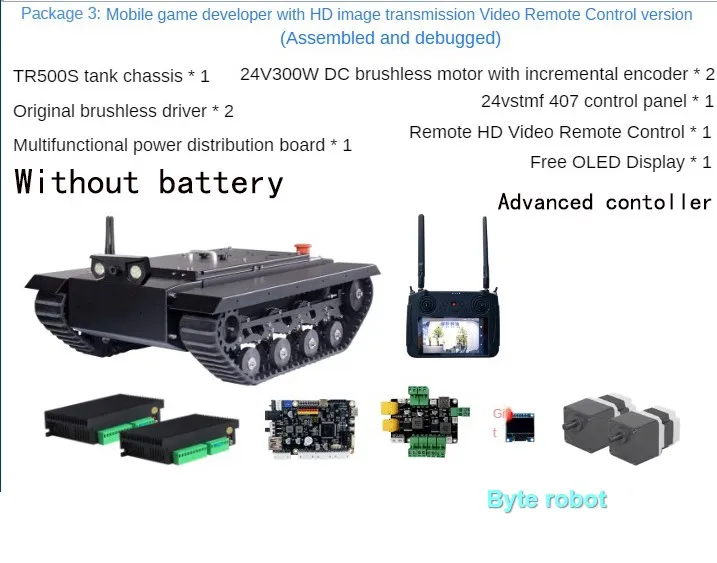

Advance set:
1. TR500S tank chassis *1
2. Original brushless drive *2
3, multifunctional power distribution board *1
4, 24V300W brushless DC motor with incremental encoder *2
5, 24V STM32F407 control board *1
6, remote HD video remote control *1
7, gift OLED display *1
Warm Prompt:
-
Not includes any Battery(You need to prepare battery by yourself for tank chassis power supply, what we recommend is 24V Li battery with 30Ah working current, and we will prepare you XT60 male plug, which you can power on it directly when your battery is XT60 female plug)
Note:
1.We can provide technical documents to our customers, please leave your email address or contact us.
