Product Description:
Equipped with RGB glowy ultrasonic sensor whose light can be adjusted, TurboPi is able to avoid obstacle smartly. In
addition, it also supports variety of sensors to turn your creative AI ideas into reality. Abundant tutorials and Python source codes are
provided to help you advance quickly into robot technology, machine vision and artificial intelligence!
* Independent power switch for stable power supply
* 6-channel PWM servo ports with over-current protection
* Loaded MCU to offload the workload of board for Raspberry Pi and reduce resource usage
* Loaded with RGB light, buzzer, LED light, etc.
* Three IIC ports for expansion
* Lead out multiple GPIO pins for development
* 4PIN anti-reverse ports compatible with Hiwonder sensors
Specifications:
– Product dimension: 187 x 162 x 139mm/7.4 x 6.4 x 5.5″
– Weight: 0.8kg/1.8lb
– Material: Metal bracket
– Camera resolution: 480P
– DOF of camera pan tilt: 2DOF. Horizontal/ vertical rotation angle:180°
– Hardware: optional board for Raspberry Pi 4B (4GB) and expansion board for Raspberry Pi
– Software: VNC software (PC) + WonderPi APP (for iOS/ Android)
– Communication method: Wi-Fi and Ethernet

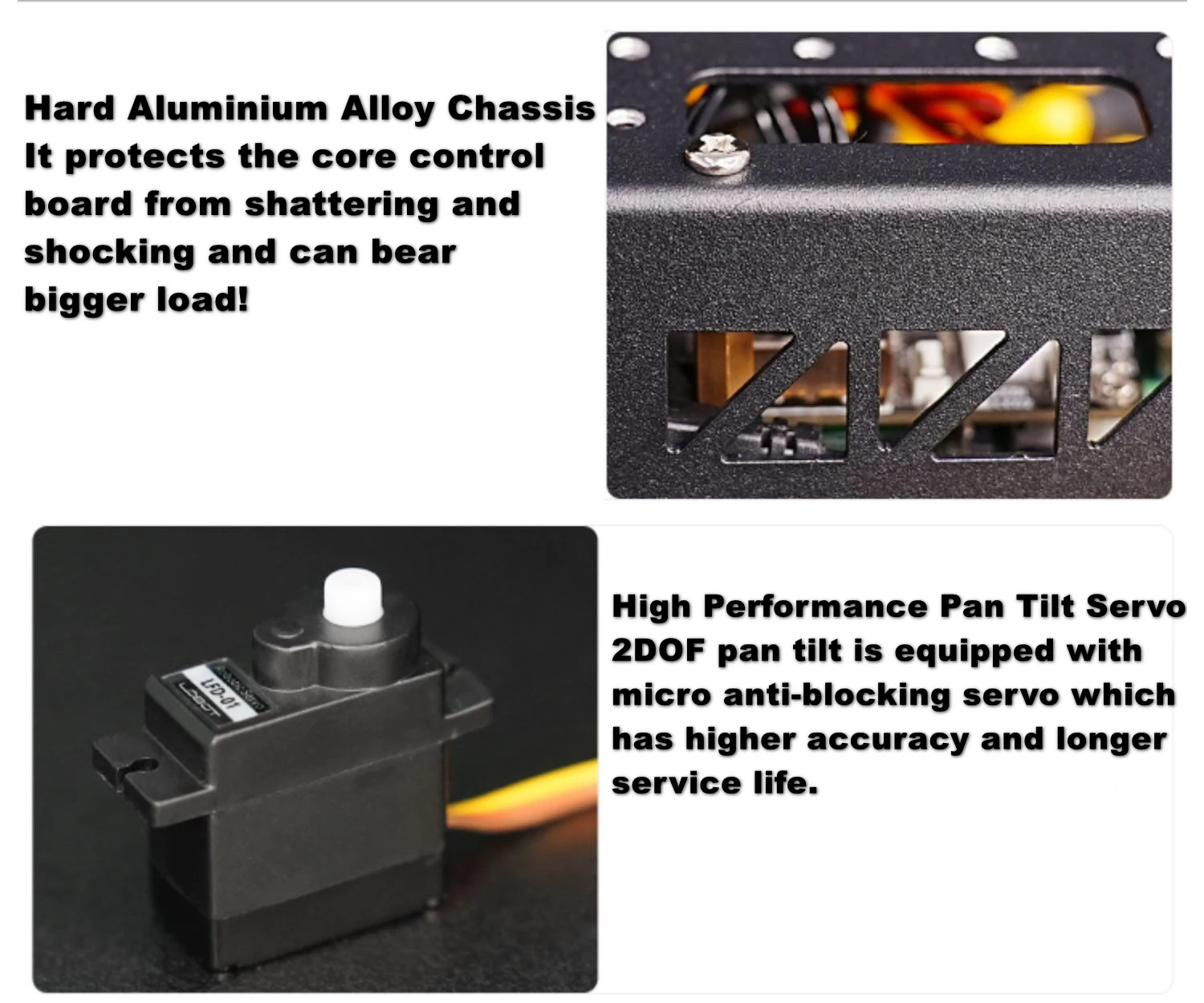

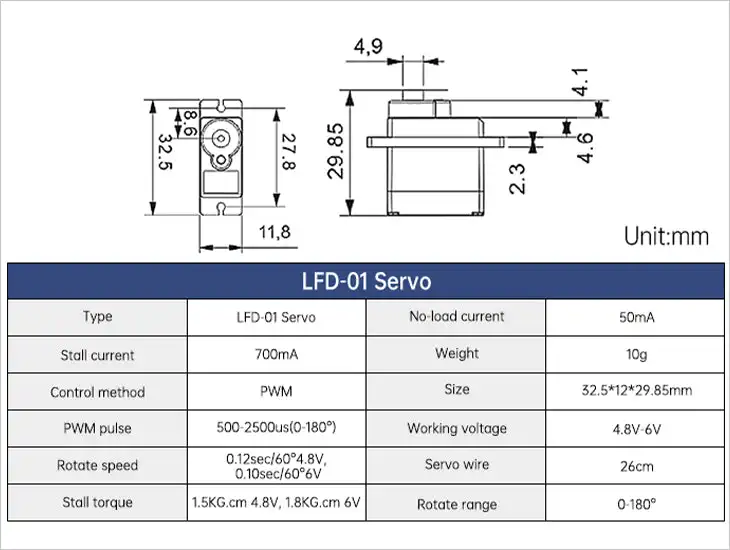

– Servo: LFD-01 anti-blocking servo
– Control method: PC/ phone control![]()
Product Description

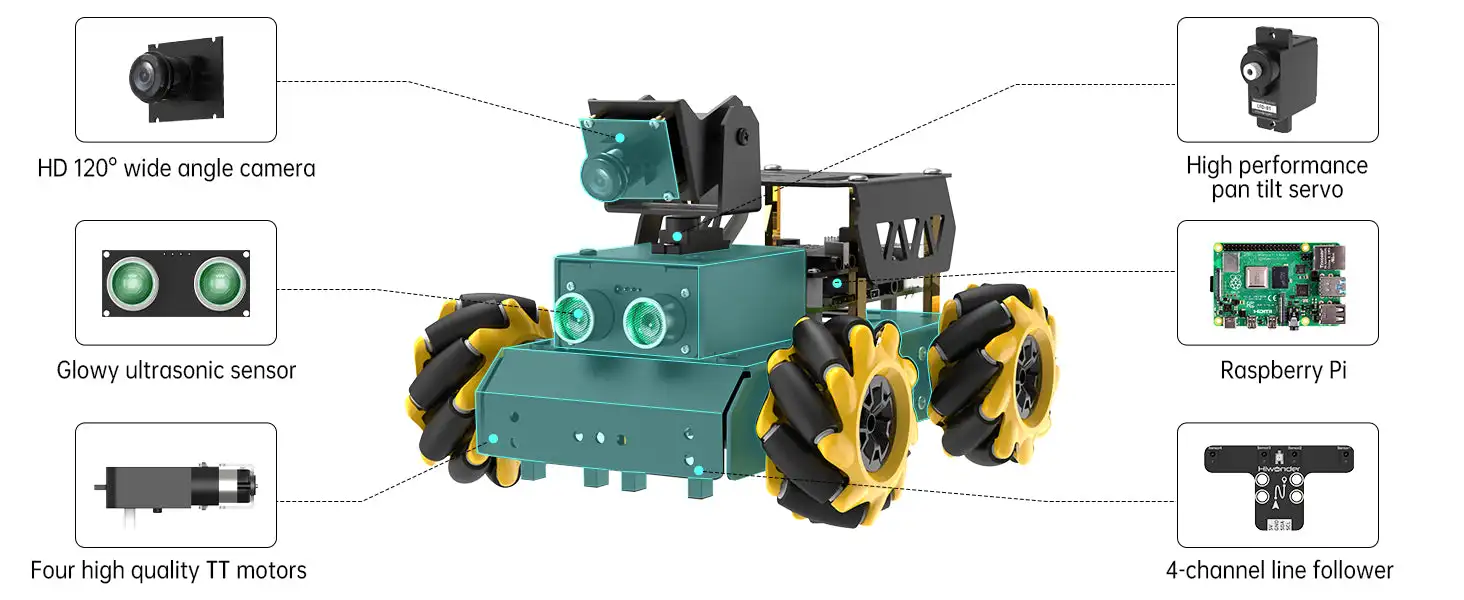

TurboPi is a smart vision robot car powered by Raspberry Pi. It is built on a Mecanum-wheel chassis, adopts high-performance pan-tilt servos, HD camera and 4-ch line follower, and can be programmed in Python. With its impressive capabilities, TurboPi unlocks diverse AI applications.

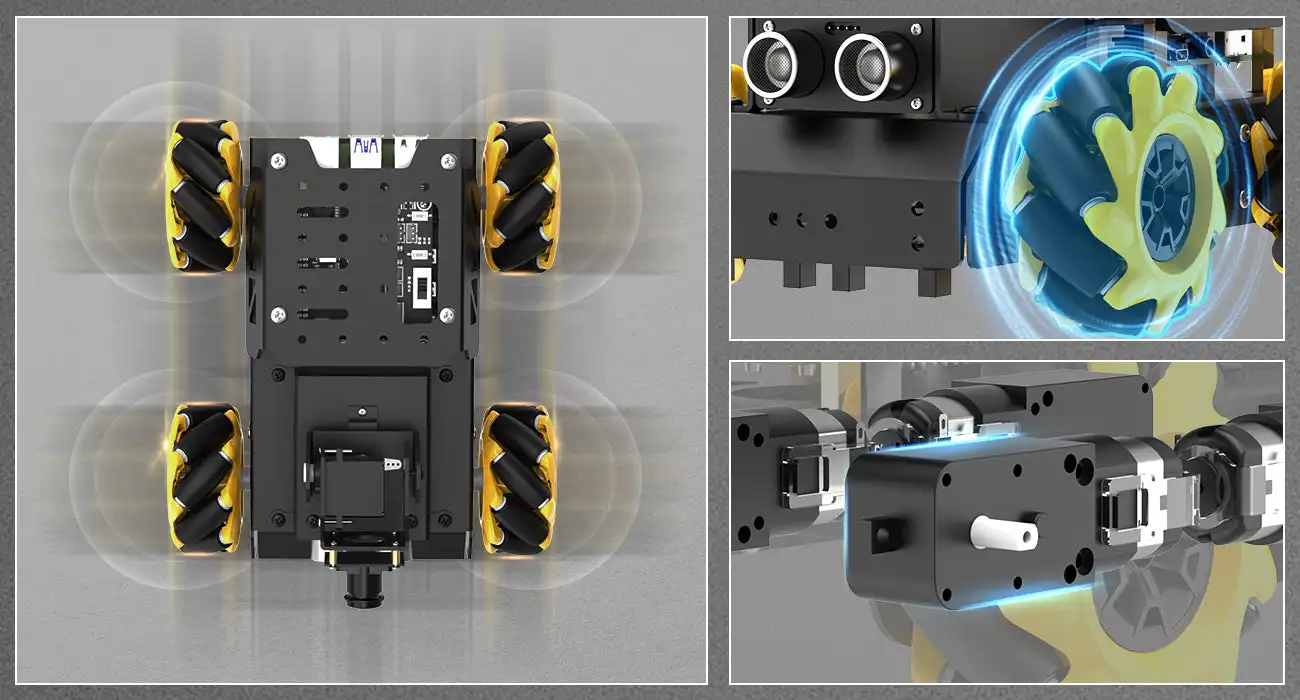

360° Omnidirectional Movement

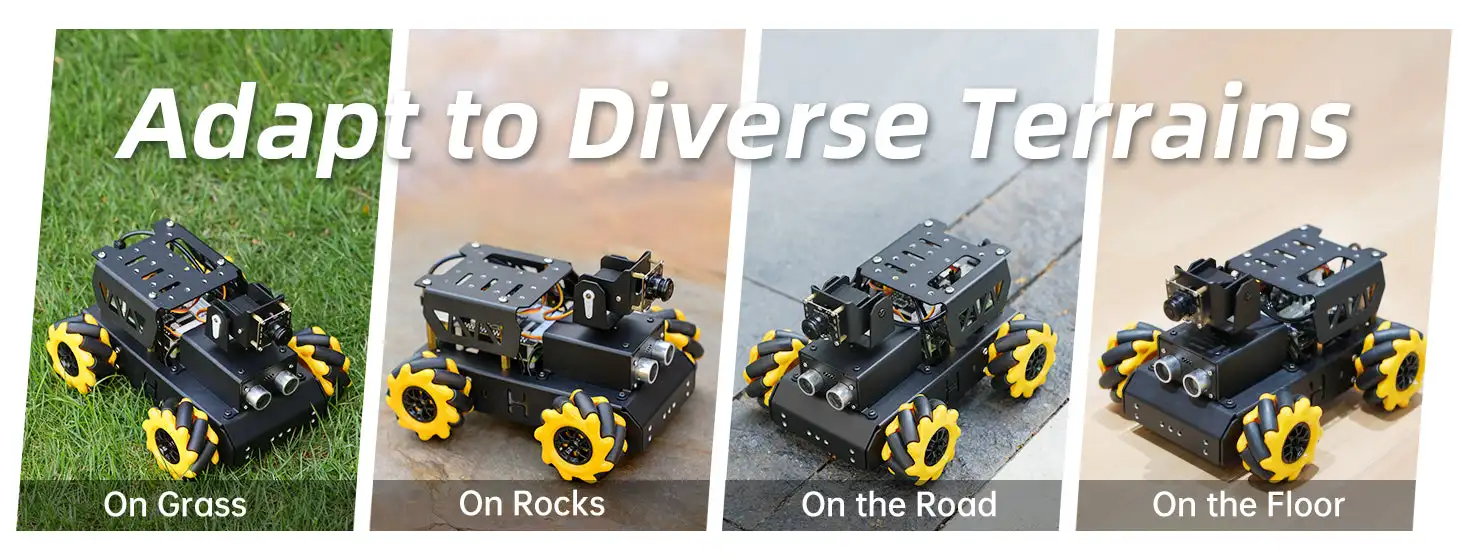

With 4 omnidirectional mecanum wheels, TurboPi can move 360°. Different movement modes (move forward, horizontally, diagonally and rotate ) and excellent perform-ance make it bold to challenge various complicated routes.

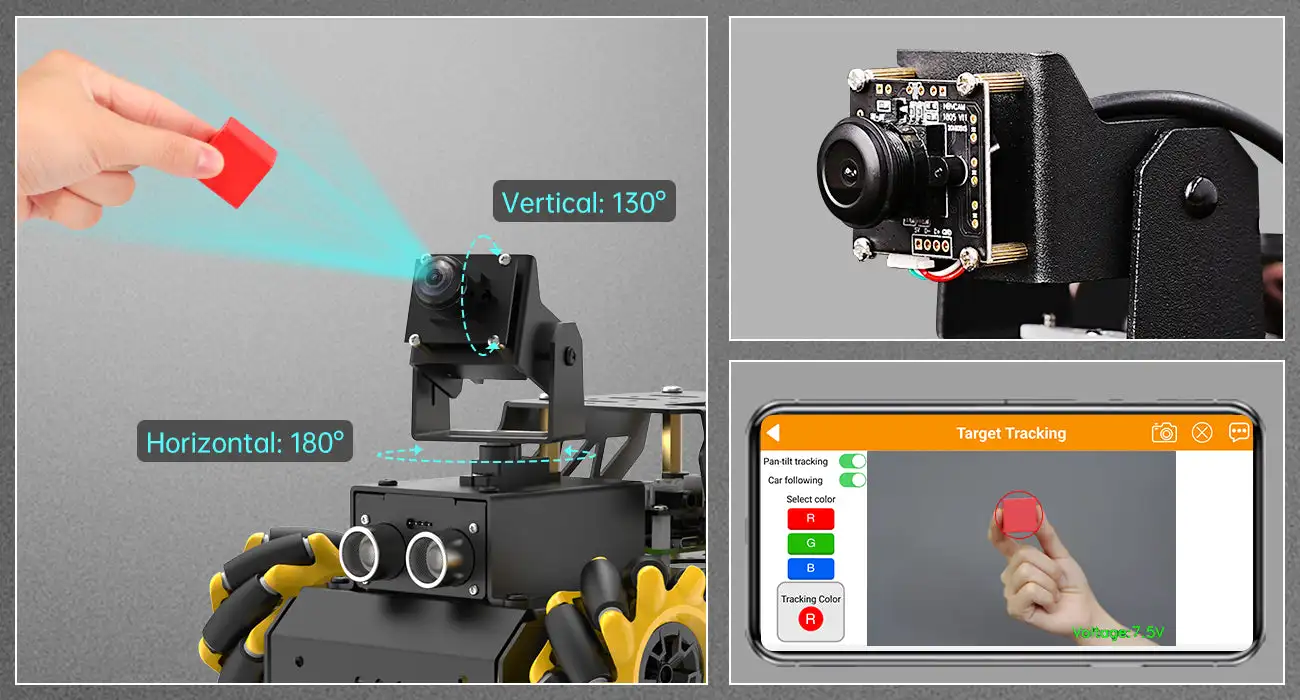

2DOF Pan-tilt for 360° View
Equipped with two anti-blocking servos, pan-tilt can rotate 130°vertically and 180° horizontally, which contributes to 360° camera field of view.

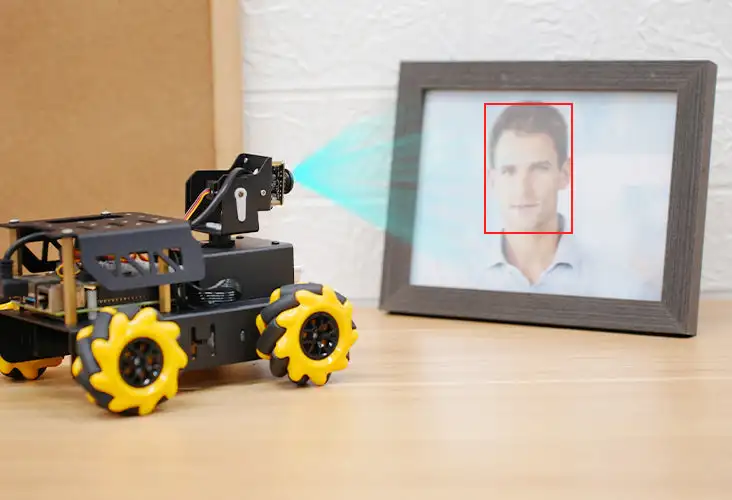

Face Detection and Tracking
TurboPi can track human face within its field of view, and move with it.

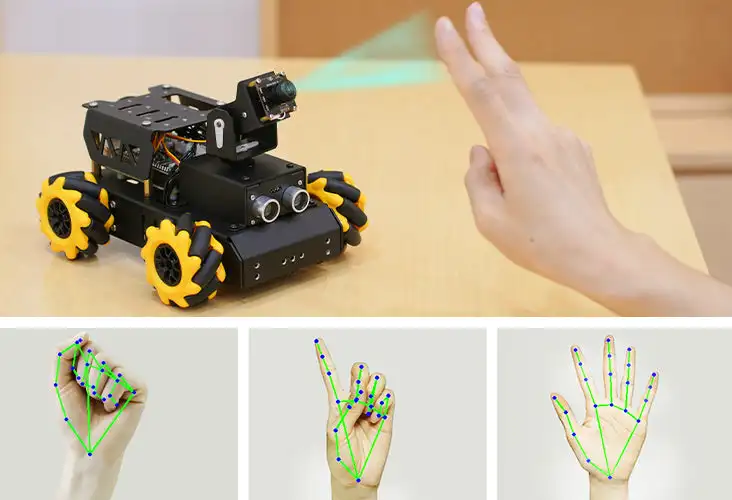

Gesture Recognition, Man-robot Interaction
TurboPi cooperates with OpenCV to count fingers. Then interact with you based on the number of finger, such as honk horn, twist and change color of light.

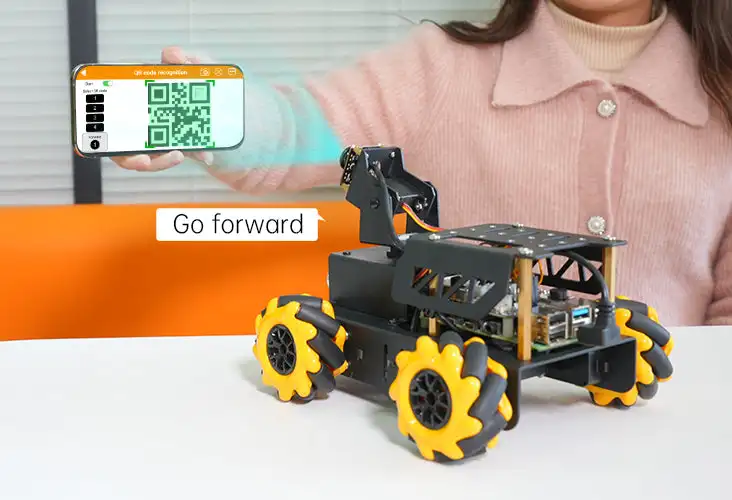

TurboPi can recognize and read QR code to perform related actions.

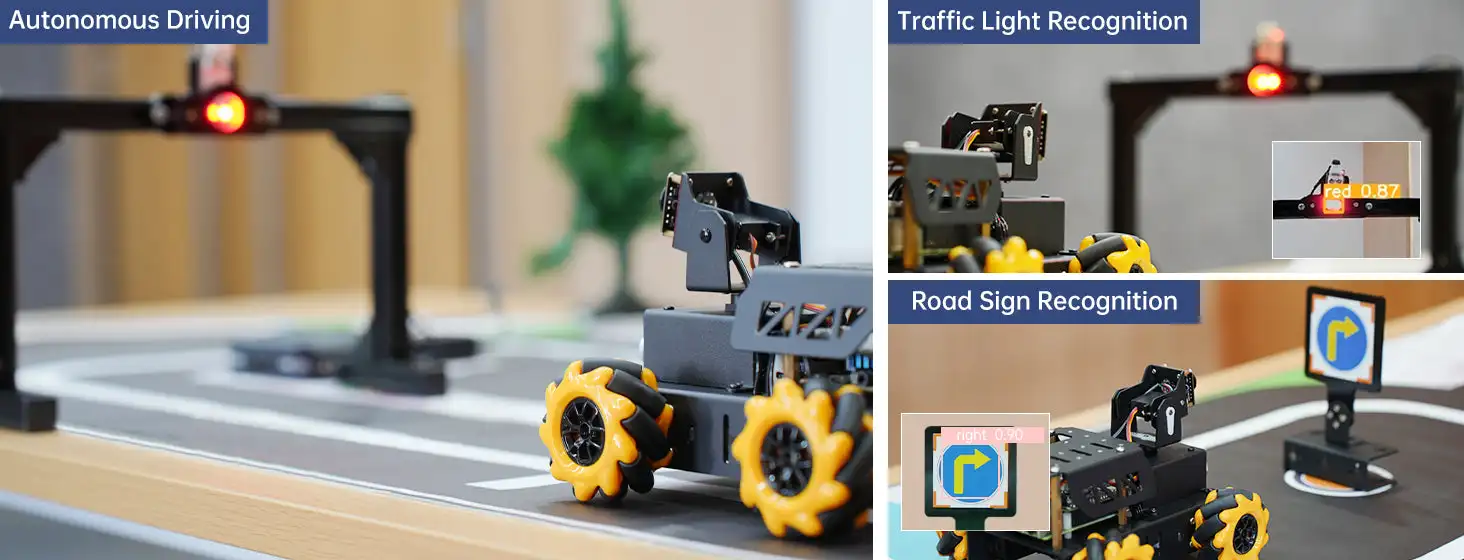

It combines 4-channel line follower and camera to achieve autonomous driving. Line follower is responsible for line following function, and camera is used to recognize traffic light and road signs.

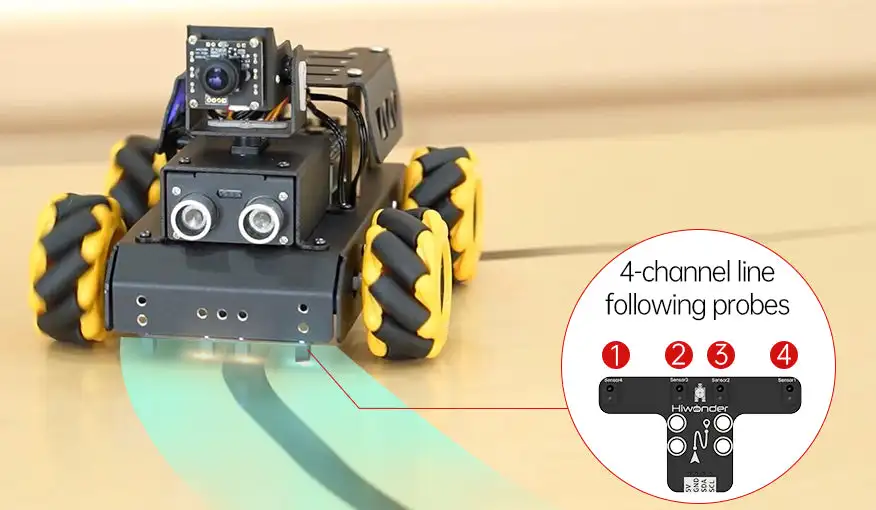

Following with 4-channel Line Follower
TurboPi uses 4 infrared probes on 4-channel line follower to detect and follow line.

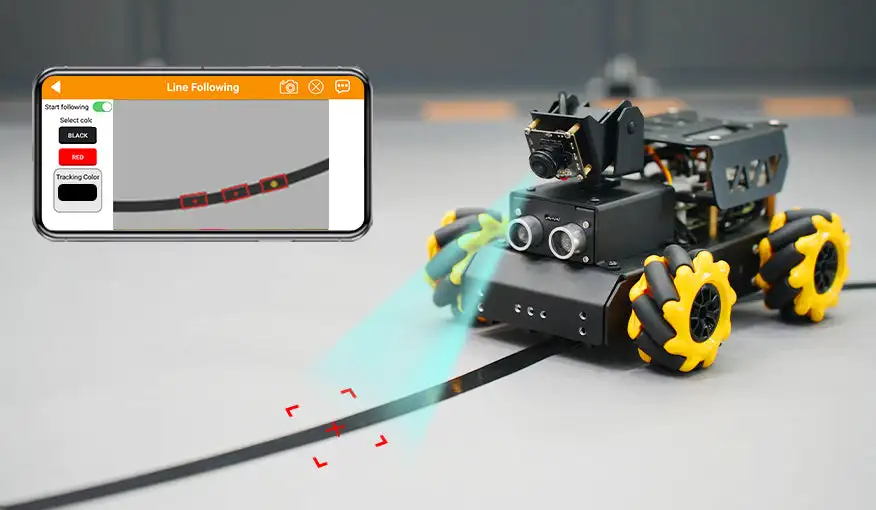

Vision Line Following
To achieve line following, it extracts ROI area with OpenCV first. Then remove noise to locate the line on binary image. Lastly, use PID algorithm to perform direction calibration.
TurboPi is powered by Raspberry Pi 4B or CM4 controller allowing you to embark on motion control, machine vision, and OpenCV projects.

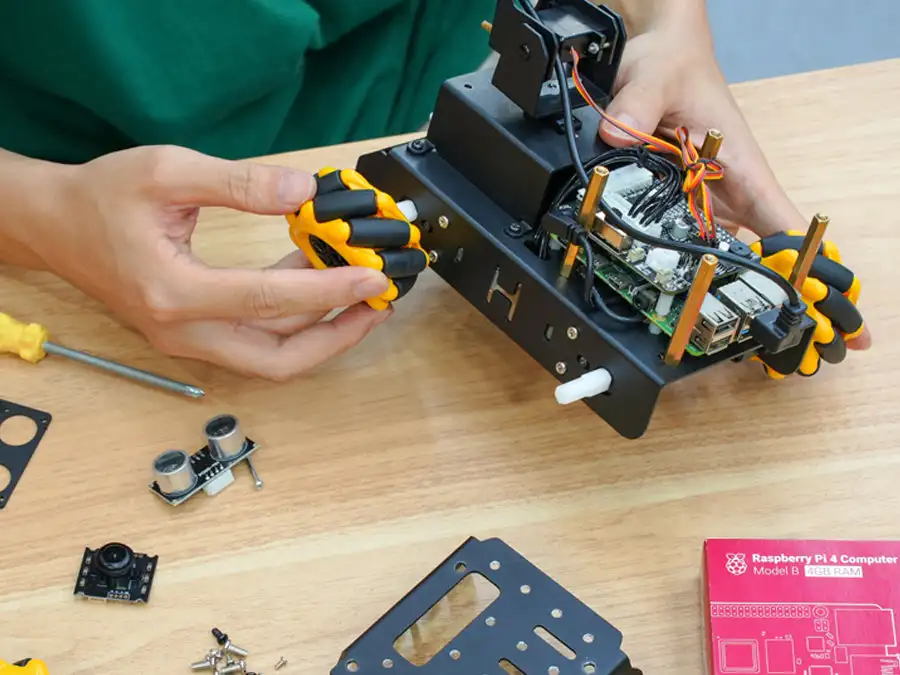

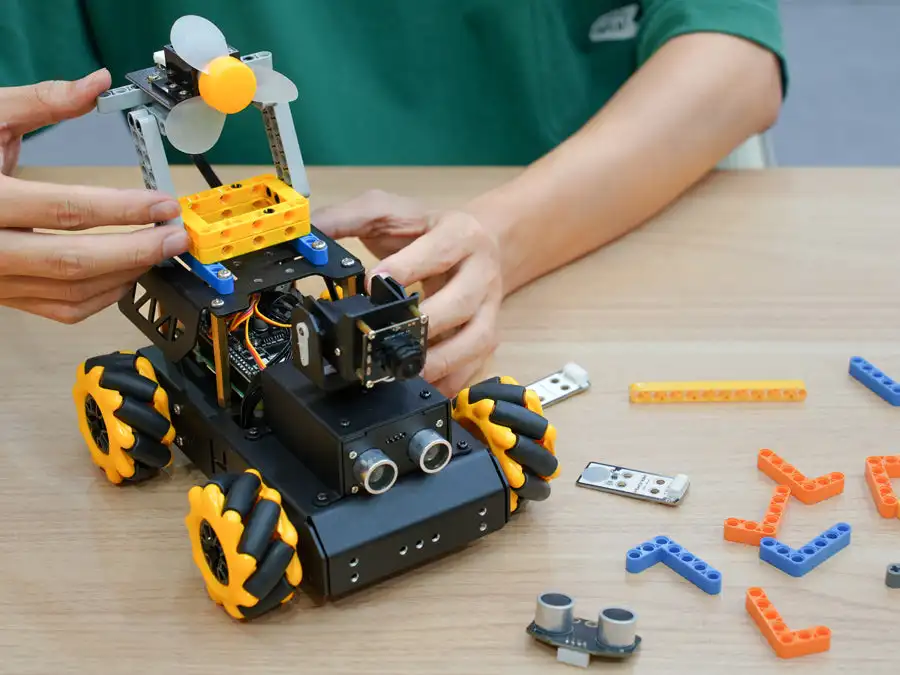

TurboPi is easy to build with instruction. You can enjoy the fun of building by build a robot.

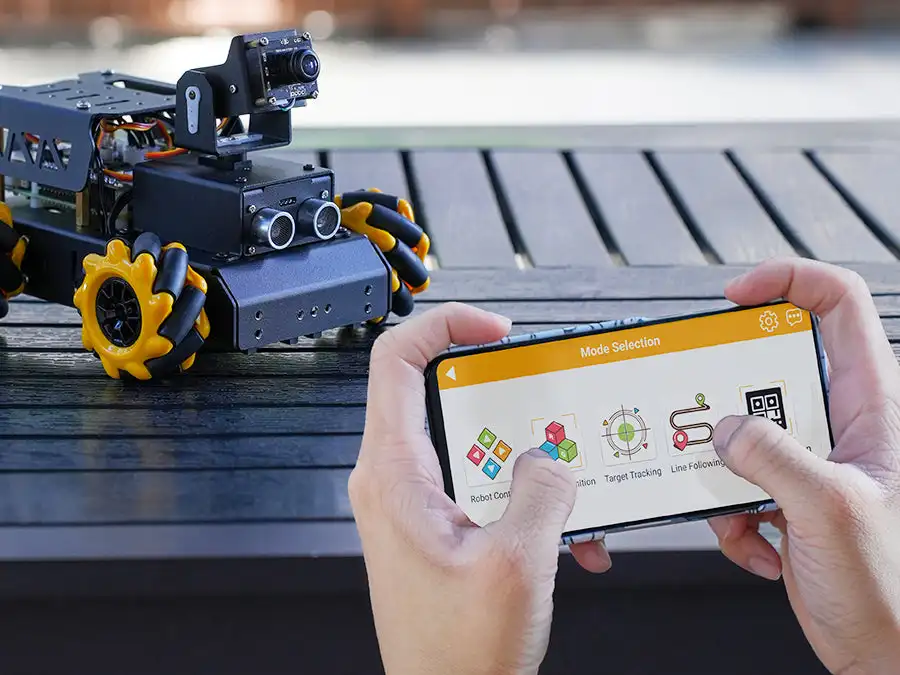

WonderPi APP supports Android and iOS. Switch game modes easily and quickly to experience various AI games.

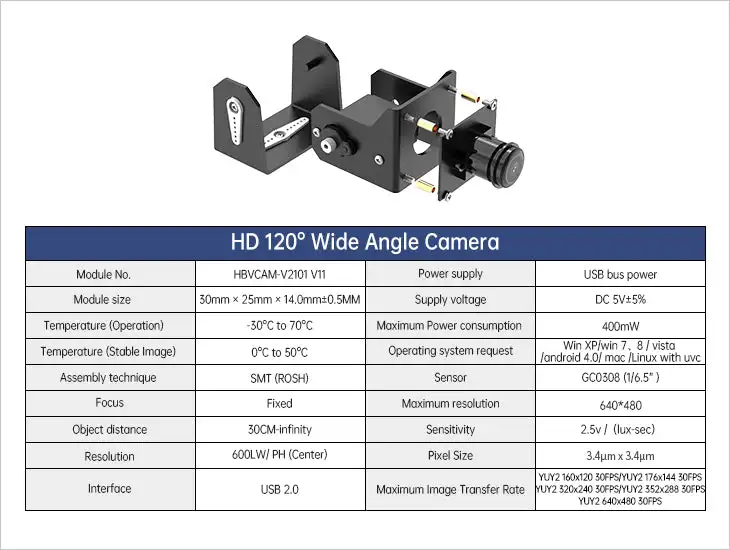

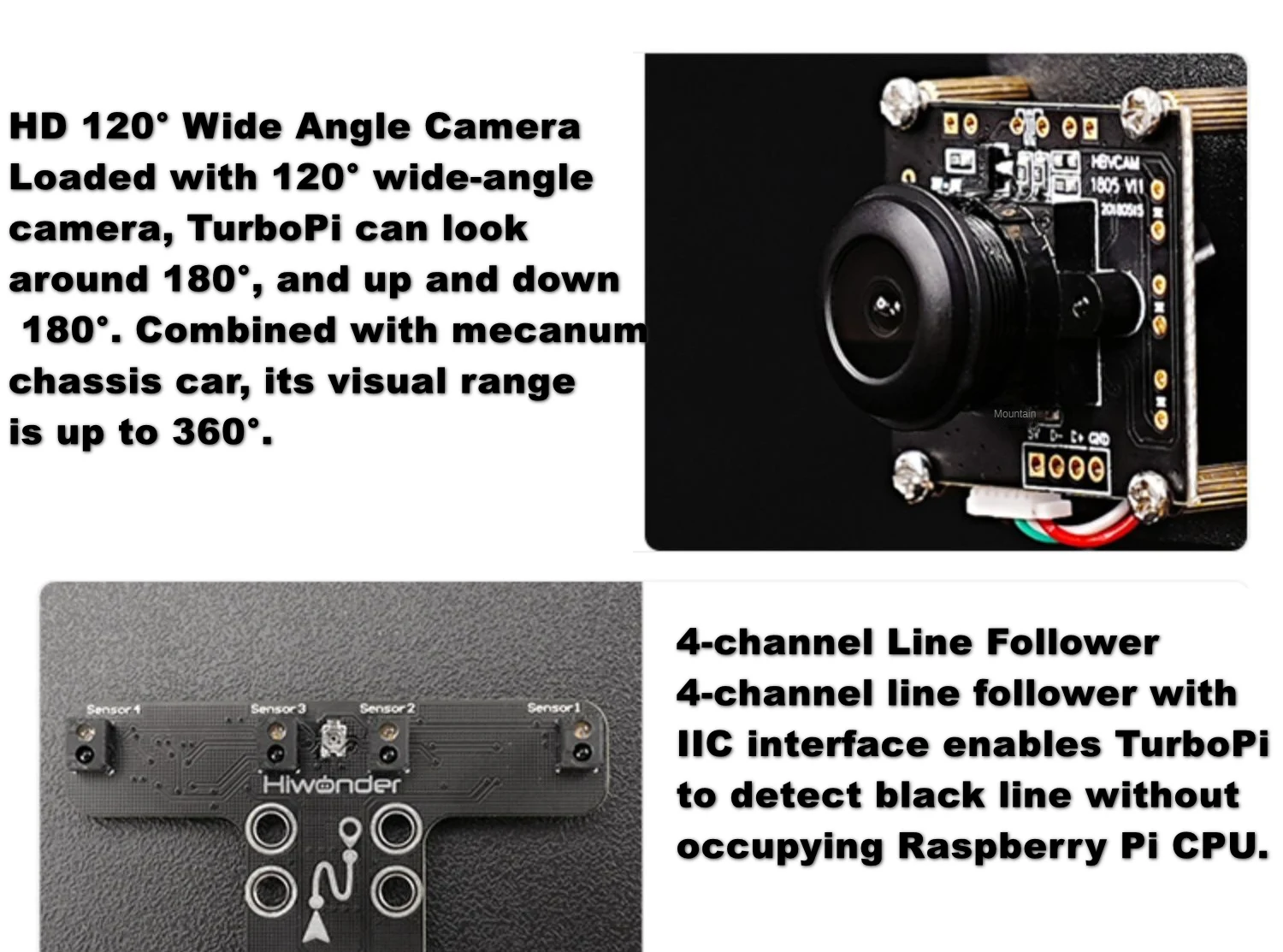

HD 120° Wide Angle Camera

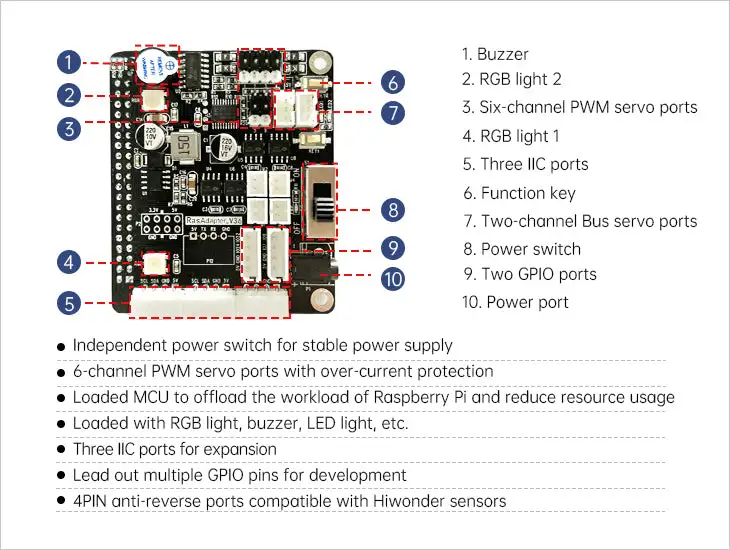

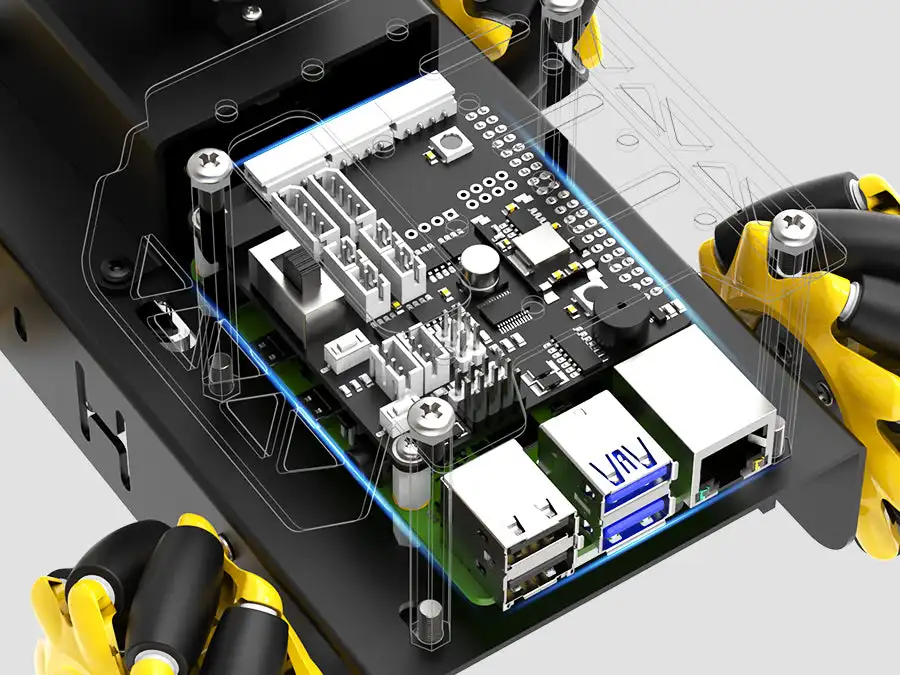

Raspberry Pi Expansion Board

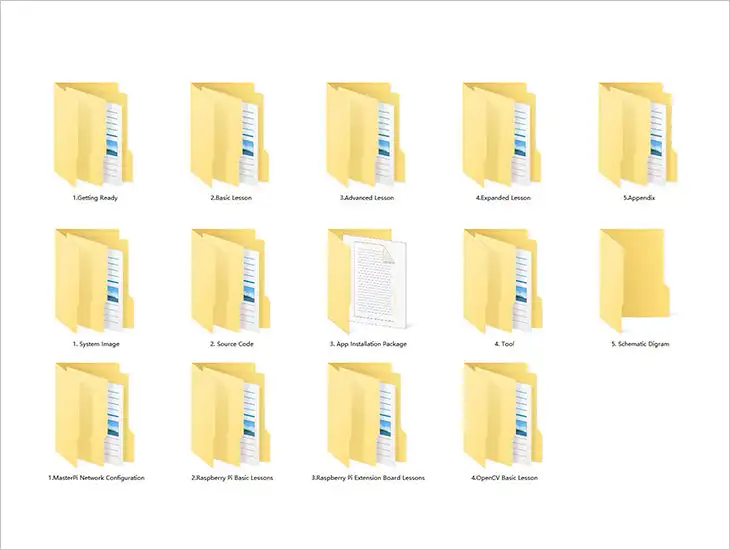

Abundant Learning Materials

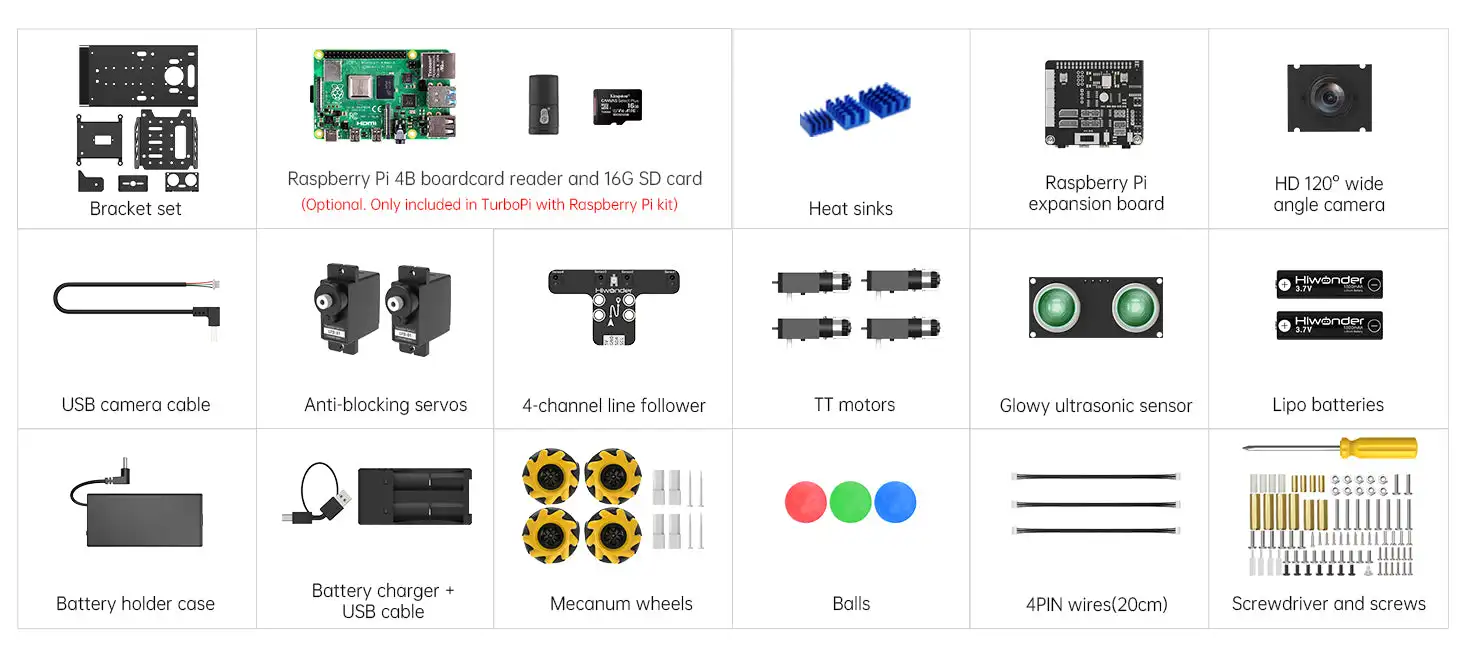

TurboPi Packing List
