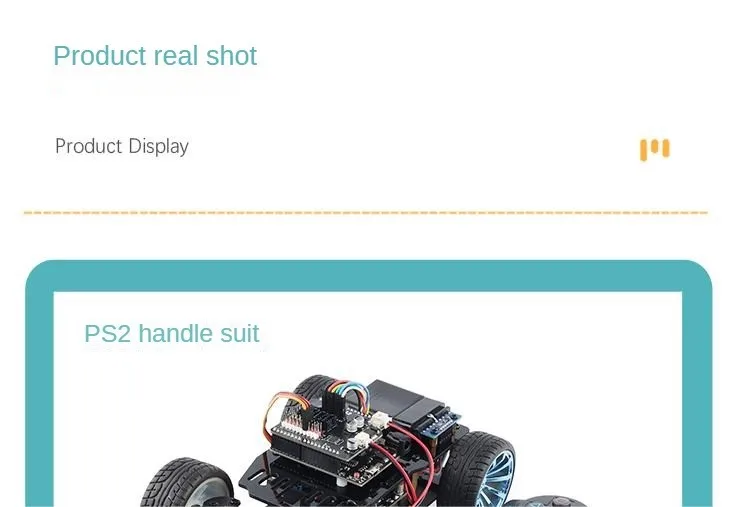

4WD Robot Car Ackerman Trolley MG996 Servo Steering Metal Chassis For Arduino Robot DIY Kit Ps2 Handle UNO Programmable Robot

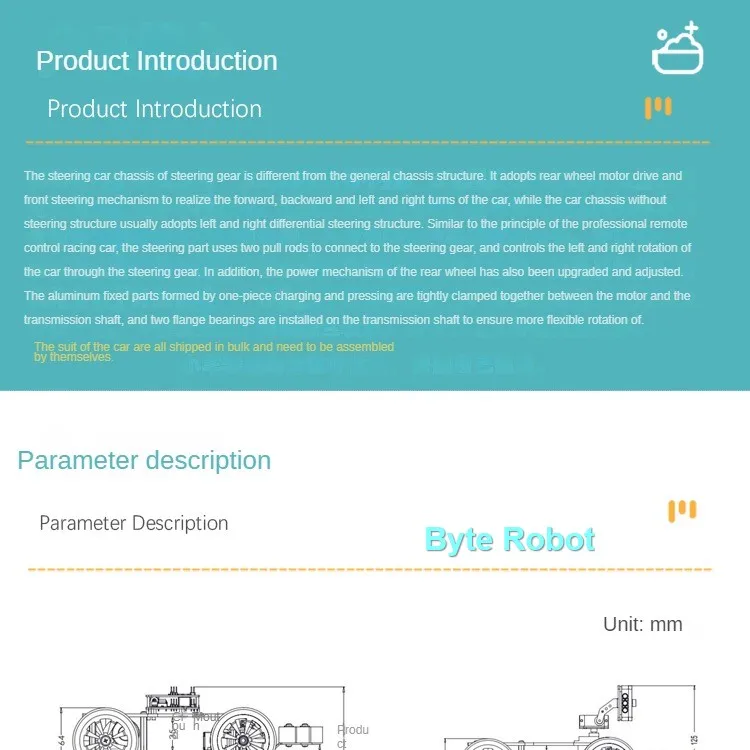

Steering car chassis is different from the general chassis structure, it uses the rear wheel motor drive and front steering mechanism to realize the forward, backward and left and right turning of the car, and the car chassis without steering structure usually uses the left and right differential steering structure. Similar to the principle of professional remote control racing car, the steering part uses two pull rods connected to the steering engine, through the steering engine to control the left and right rotation of the car, and the power mechanism of the rear wheel has also been upgraded and adjusted, one of the aluminum fixed parts, the motor and the drive shaft are closely together, the drive shaft is covered with two flange bearings, to ensure that the motor rotation is more flexible. The car sets are delivered in pieces and need to be assembled by themselves.

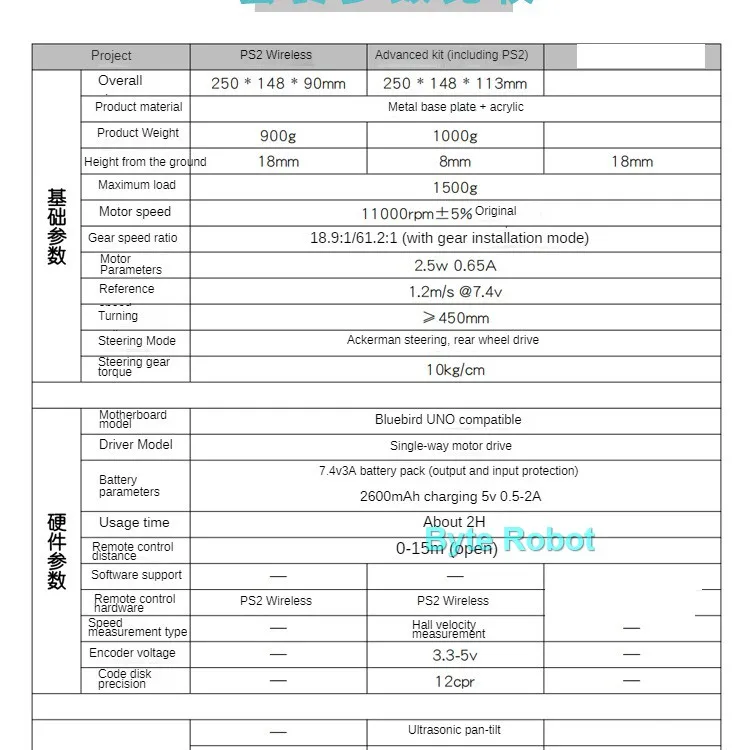

Full set:
Maximum load 1500g
Motor speed 11000rpm±5% original speed
Gear ratio 18.9:1/61.2:1 (with gear mounting method)

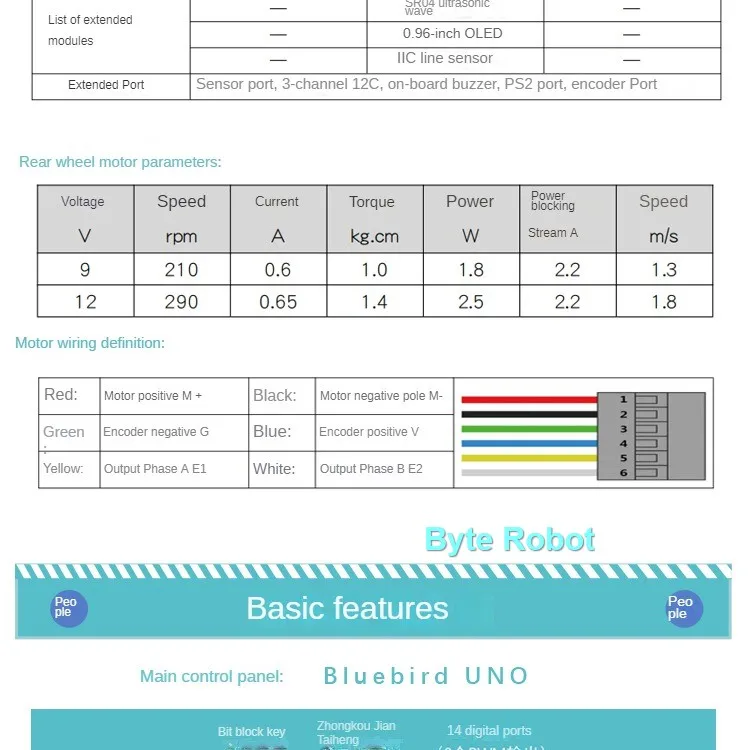

Motor parameters 2.5w 0.65A
Reference speed 1.2m/s 7.4V
Turning radius gt; 450mm
Steering mode Akerman steering, rear wheel drive
Steering torque 10kg/cm

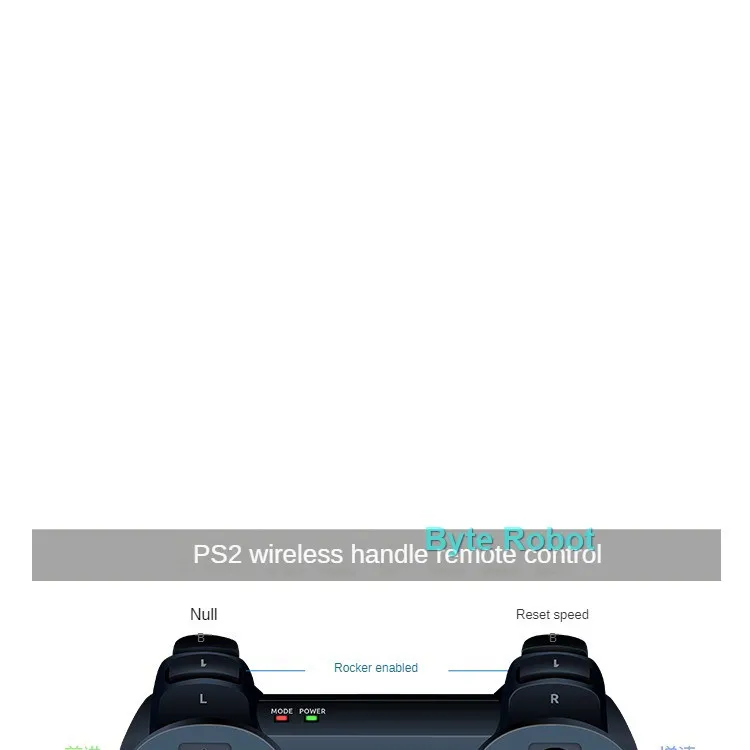

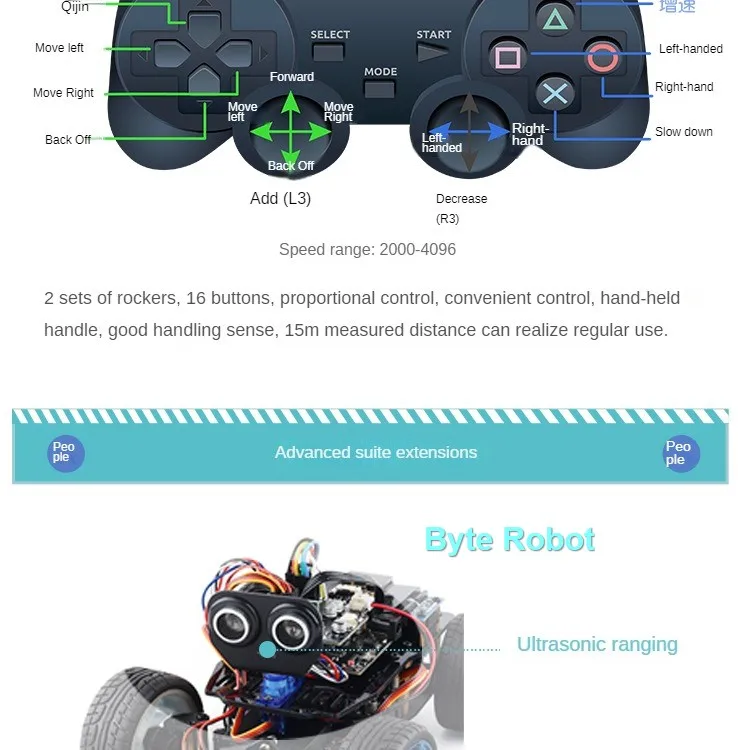

PS2 Wireless

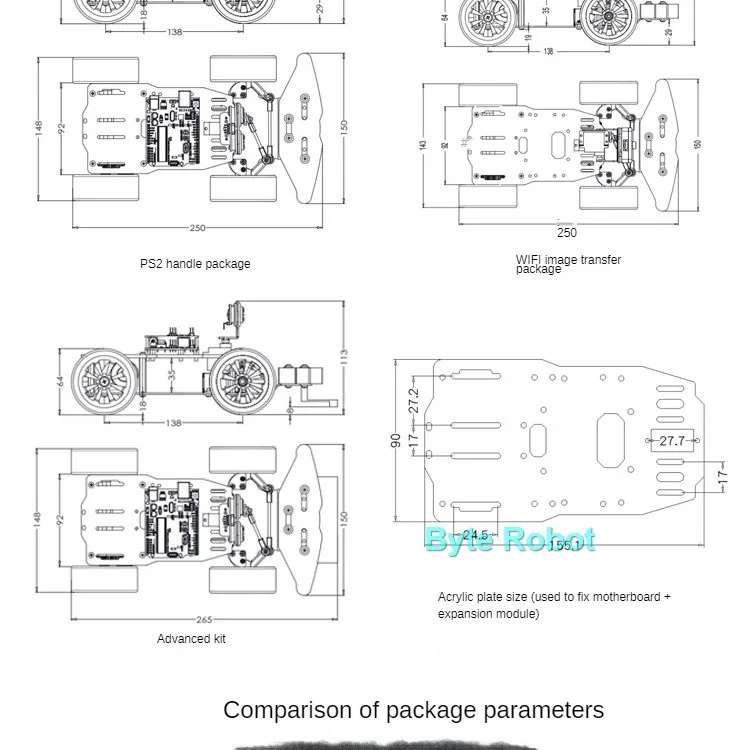

Overall size 250 * 148 * 90mm
Material Metal base plate + acrylic
Product weight 900g
Height from the ground 18mm

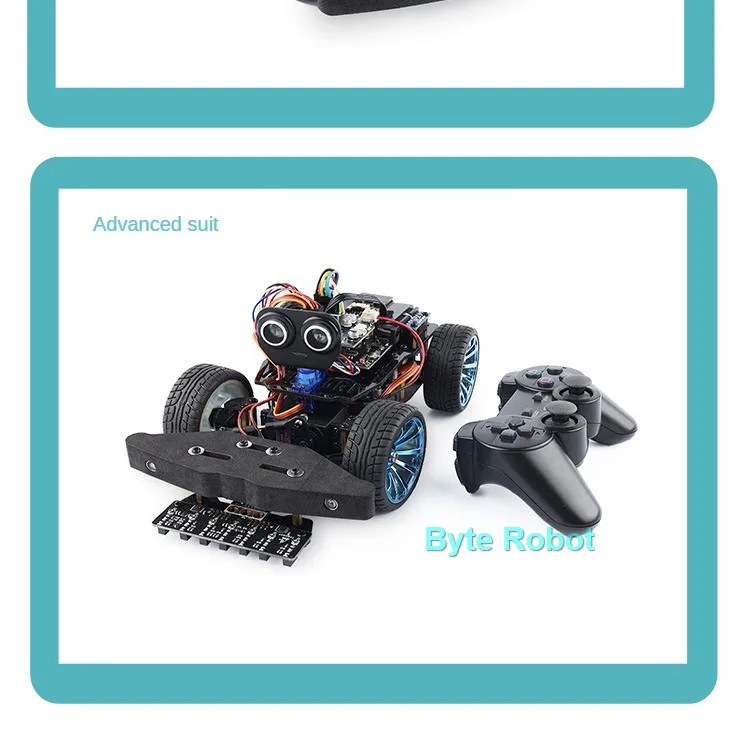

Advanced Kit (PS2 included):
Maximum load 1500g
Motor speed 11000rpm±5% original speed
Gear ratio 18.9:1/61.2:1 (with gear mounting method)
Motor parameters 2.5w 0.65A
Reference speed 1.2m/s 7.4V
Turning radius gt; 450mm
Steering mode Akerman steering, rear wheel drive
Steering torque 10kg/cm
Material Metal base plate + acrylic
Product weight: 1000g
Height from the ground 8mm

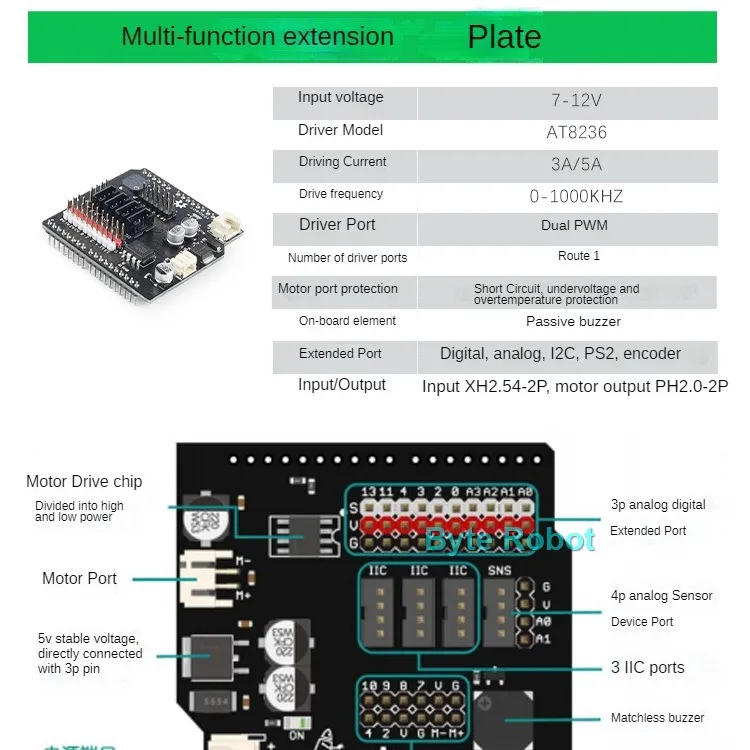

Power motor port protection overcurrent, short circuit, etc. Under voltage and over temperature protection
Onboard components Passive buzzer expansion ports Digital, analog, 12C, PS2, encoder input output input XH2.54-2P, motor output PH2.0-2P
Note:
1.This is unassembled, you need to assemble it, we provide installation tutorials for free，Please leave your email address
2.Shipping without battery
