EPEVER MPPT Solar Charge Controller 40A 12V/24V Auto Work With WiFi Adapter
Overview:
Tracer-AN (10A-40A) series charge controller adopts MPPT (Maximum Power Point Tracking) technology. In any situation, it can track the maximum power point (MPP) of the solar array and obtain the maximum solar energy rapidly and accurately. It can generate up to 30% more power compared with the PWM charge controller. This series can accept max.100V Voc and work with the solar panels which are designed for on-grid applications. The multifunction LCD display the system status vivdly.
|
|
|
|
Model |
Tracer4210AN G3 |
|
Nominal system voltage |
12/24VDC/Auto |
|
Battery type |
Lead-acid(Sealed/Gel/Flooded)/Lithium(LiFePO4/Li(NiCoMN)O2)/User |
|
Battery input voltage range |
8~32V |
|
Rated charge current |
40A |
|
Rated discharge current |
40A |
|
Rated charge power |
520W/12V |
|
Max. conversion efficiency |
≤98.0% |
|
Tracking efficiency |
≥99.5% |
|
MPP voltage range |
(Battery Voltage+2V)~72V |
|
Max. PV open circuit voltage |
100V(At minimum operating enviornment temperature) |
|
Equalization voltage |
Sealed:14.6V,Flooded:14.8V,User-defined:9-17V |
|
Boost voltage |
Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V |
|
Float voltage |
Gel/Sealed/Foolded:13.8V,User-defined:9-17V |
|
Low voltage reconnect voltage |
Gel/Sealed/Foolded:12.6V,User-defined:9-17V |
|
Low voltage disconnect voltage |
Gel/Sealed/Foolded:11.1V,User-defined:9-17V |
|
Self-consumption |
≤12mA |
|
Temperature compensation |
-3mV/℃/2V(Default) |
|
Relative humidity |
≤95%,N.C. |
|
Enclosure |
IP30 |
|
Communication interface |
RS485(RJ45) |
|
Grounding |
Common Negative |
|
Operating temperature range |
-25℃~+45℃(100% input and output) |
|
Dimensions(LxWxH)(mm) |
252 x 180 x 63 |
|
Net weight |
1.65kg |
Steps: Connect solar system in this order: 1.battery–> 2. load–> 3.PV array, and disconnect solar system in the reverse order >3. >2. >1.
-
Battery must be connected first! Never connect soalr panel array to controller Without/Before connect battery.
-
DO NOTconnect any inverter/wind/Alternator or Charger into the charge controller directly ! Youshouldconnect with battery and add fuse.
-
If there is a long distance between the PV array and controller or between the controller and battery, larger size wires should be used to reduce the voltage drop and improve performance. (Recommended wire size is only for reference.)
How to program for Lithium Battery?
-
Via Remote Meter (Accessories needed: MT50)
-
Via PC Software (Accessories needed RS485 cable :CC-USB-RS485-150U )
-
Via Phone APP (Android or IOS), (Accessories needed：WIFI or BLE)

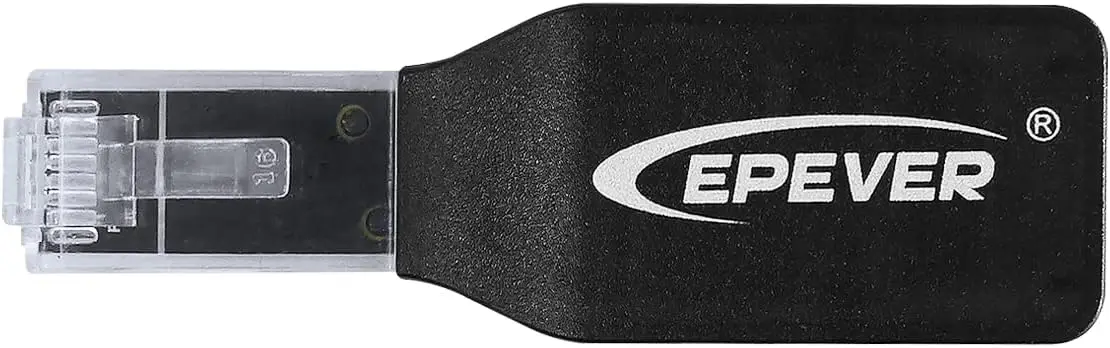

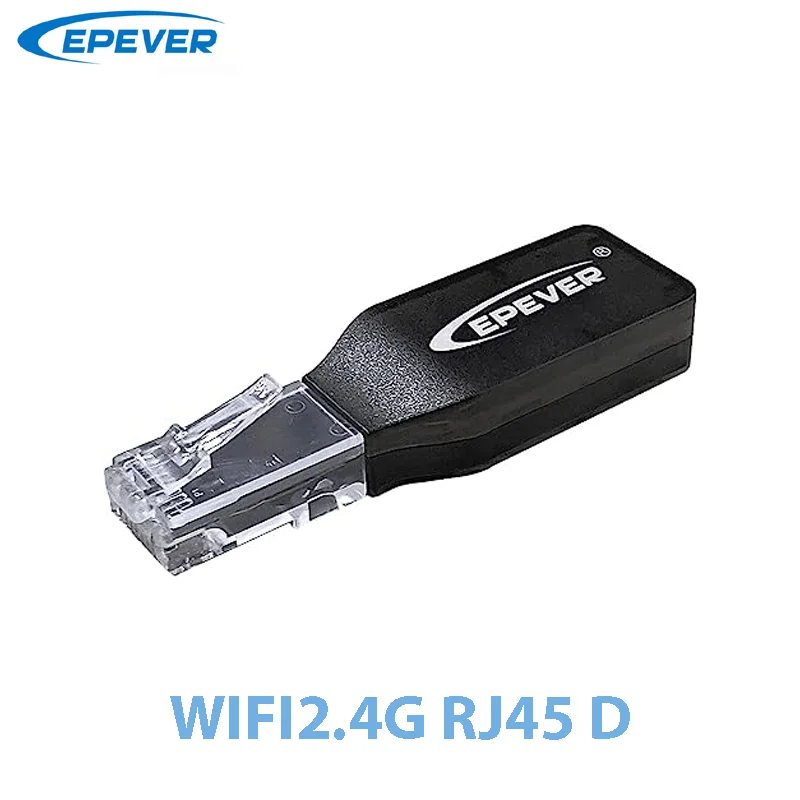

EPEVER WiFi2.4G RJ45 D
Overview:
The EPEVER WiFi 2.4G RJ45 D WiFi adapter is mainly used for real-time transmission of various power generation data from EPEVER controllers, inverters, hybrid inverter chargers, etc. to the EPEVER cloud server. It supports wireless monitoring and parameter setting of on-site devices via cloud servers, mobile apps, or large screens.
Features:
-
2.4G WiFi Networking Communication
-
Works with Controllers with RJ45 Interface
-
Plug-and-Play with Easy Setup
-
Communication Port Powered Directly, No External Power Required
-
Communication Distance: Up to 20 Meters
-
Support Two Working Modes: Offline Monitoring; WIFI Data Upload to the Cloud
-
Products suitable for Solar Guardian app: XTRA, TRIRON, Tracer-AN
|
Package List |
|
|
|
|
WIFI IS OPTIONAL!
